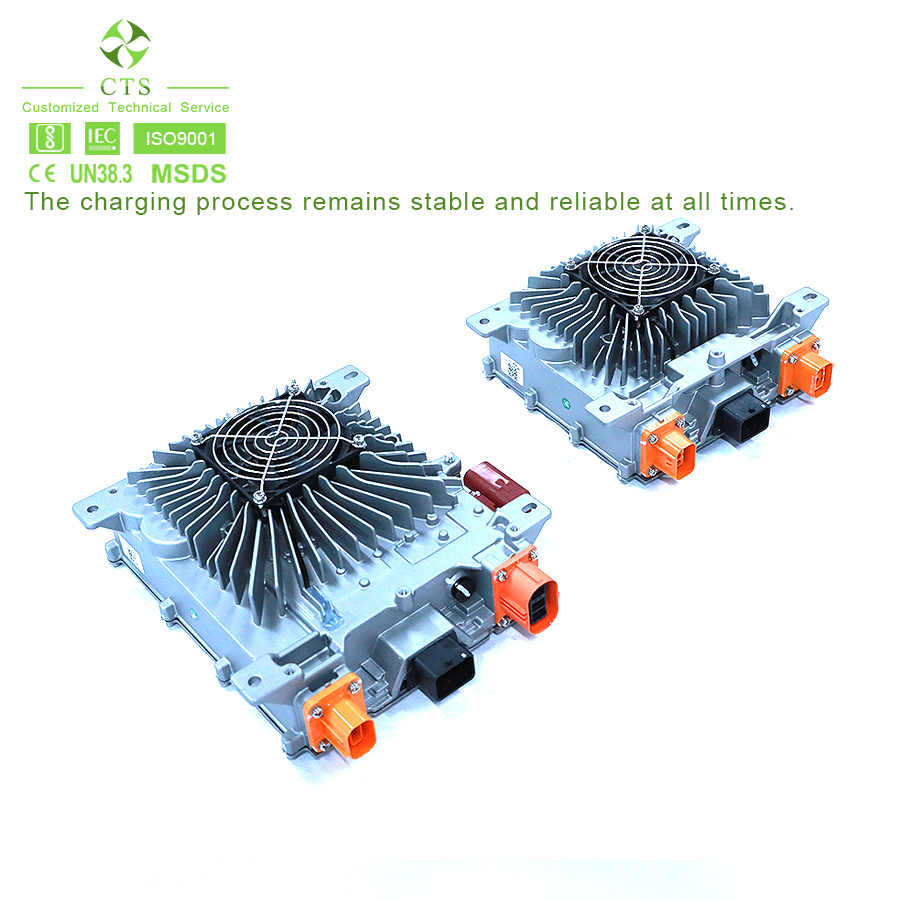

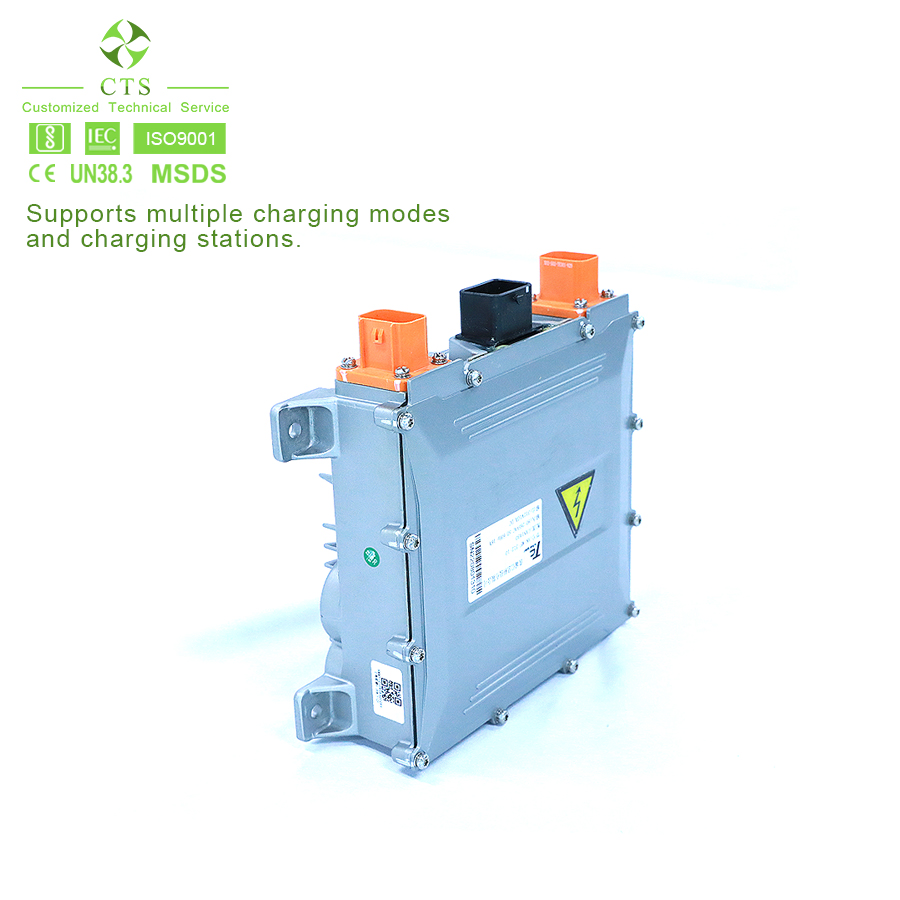

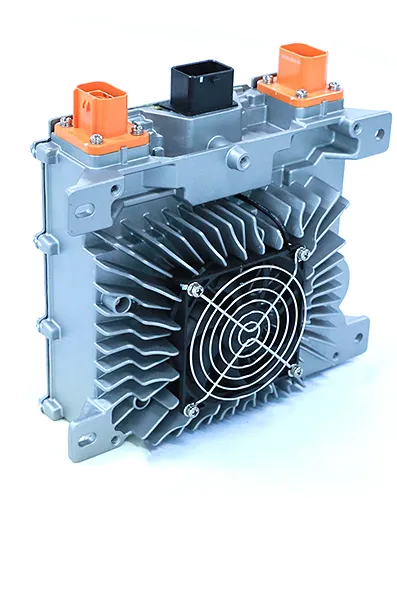

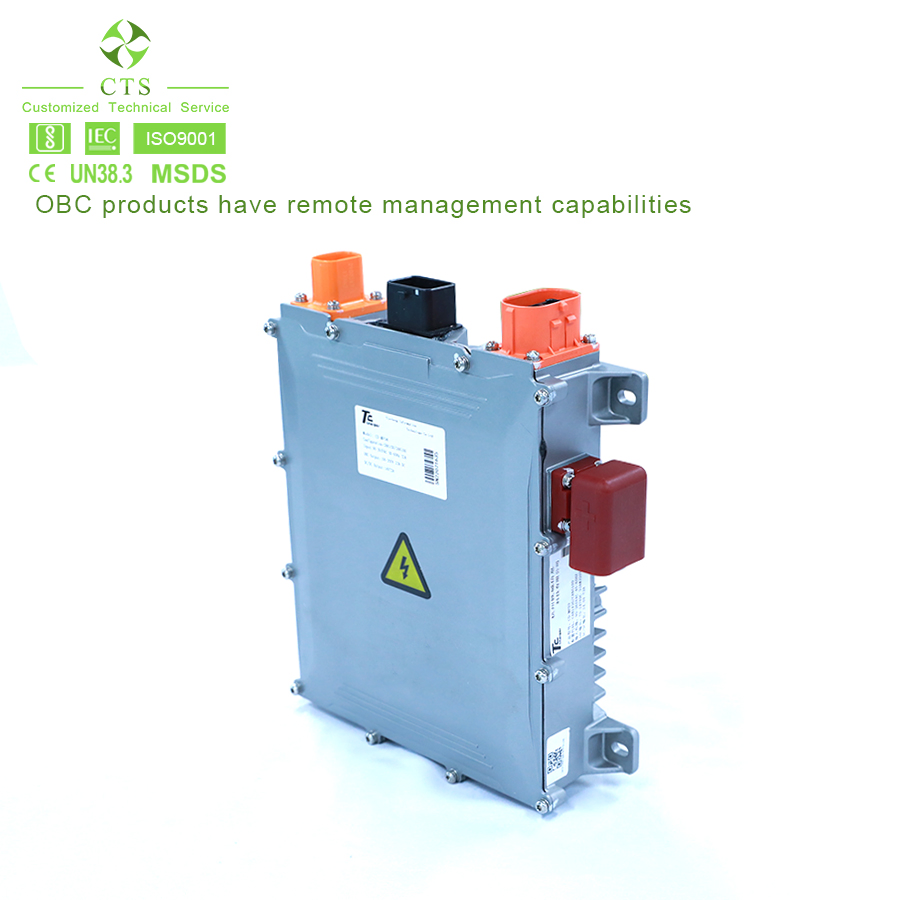

OBC Battery Charger 3.3KW On Board Waterproof OBC Lithium-ion Battery Charger
Support UDS diagnosis and CAN wake-up function for advanced system management.
Fully sealed process, reliably operating under temperatures from -40°C to +85°C.
Built-in temperature sensor automatically shuts down output under hazardous conditions (internal 90°C).

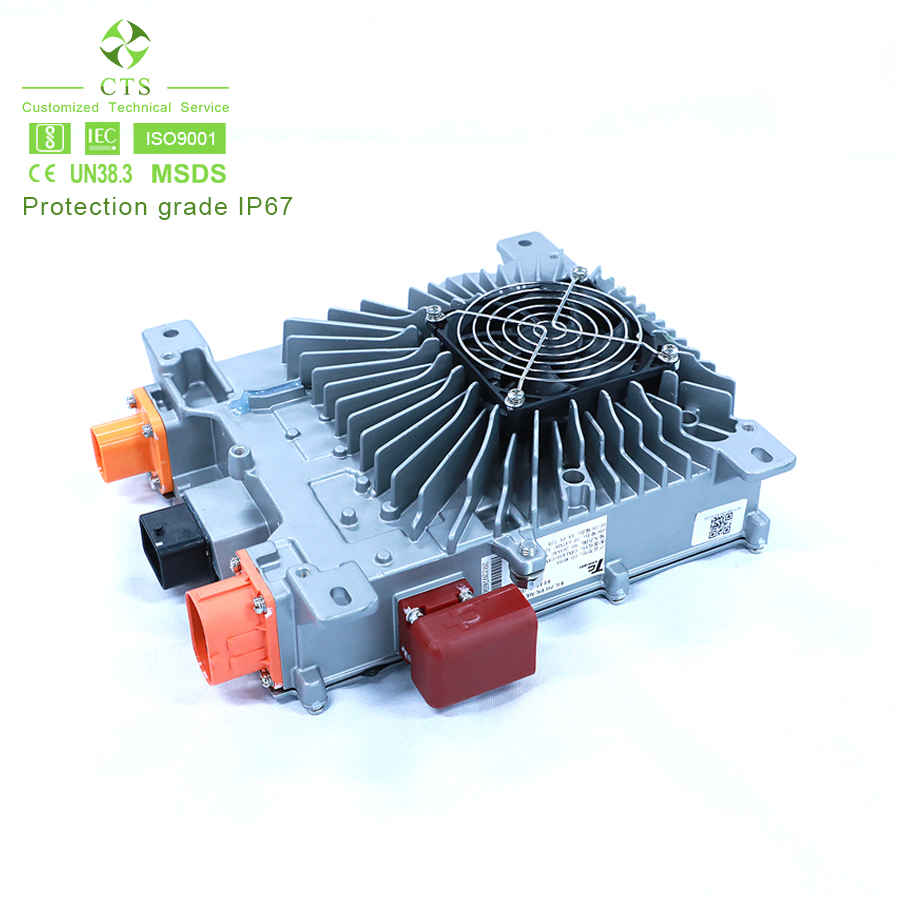

Protection level IP67 ensures safe operation even under short-term water immersion.

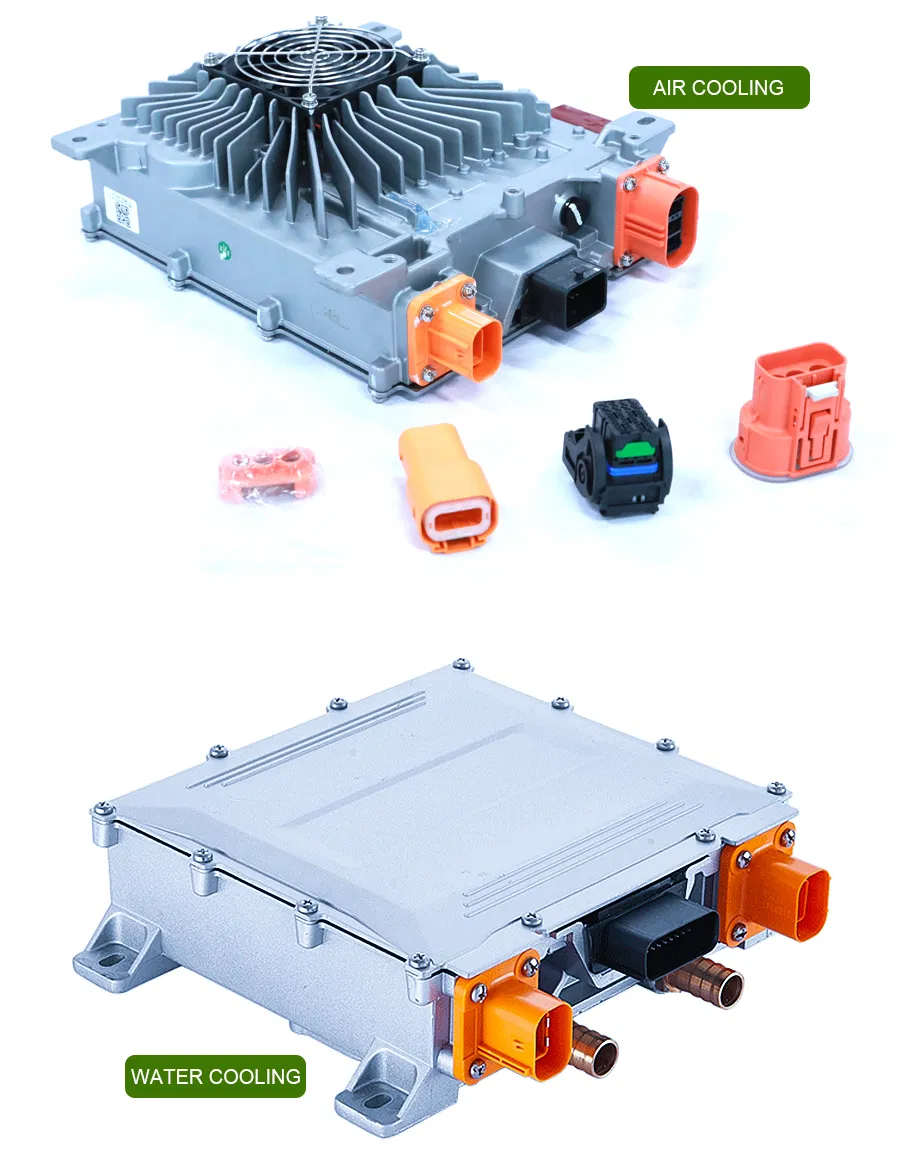

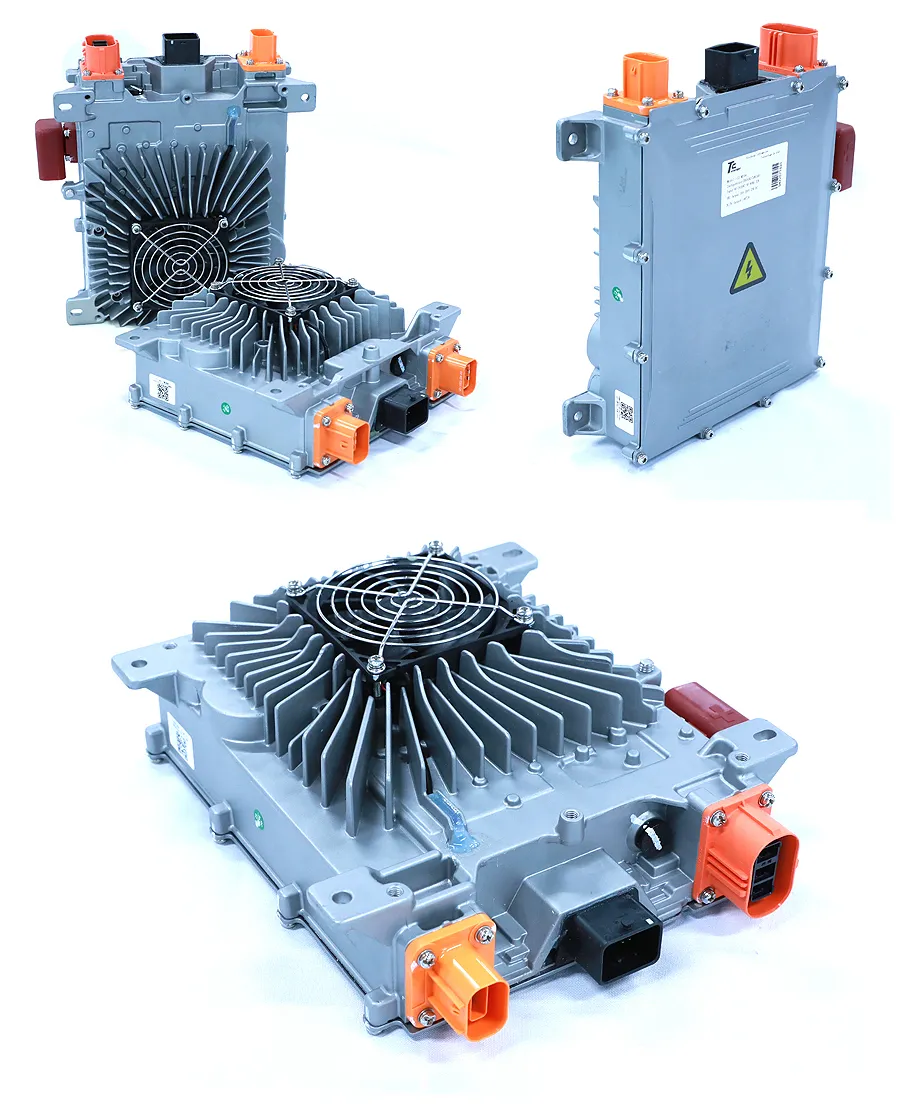

• Cooling Method: Optional air cooling or water cooling systems.
• Optional DC/DC: 12V DC/DC Converter available for low-voltage electric vehicle equipment.
| Model | Input Voltage Range | Input Current | Output Voltage | Output Current |
|---|---|---|---|---|
| HK-J-H99-40 | AC 90~265V | 16A | 50V-99V | 40A |
| HK-J-H132-32 | AC 90~265V | 16A | 35V-132V | 32A |
| HK-J-H198-23 | AC 90~265V | 16A | 50V-198V | 23A |
| HK-J-H440-10 | AC 90~265V | 16A | 110V-440V | 10A |
| Input | Frequency | 45-65Hz |
|---|---|---|
| Effectiveness | 94% | |
| Power Factor | 0.99 | |
| Standby Consumption | ≤5W | |
| Main Output | Method | Constant Voltage / Constant Current |
| Power | 3300W@220VAC / 1600W@110VAC | |
| Voltage Accuracy | ±1% | |
| Current Accuracy | ±2% |
| Model | Voltage | Charger Hardware | DC-DC Hardware | Cooling |
|---|---|---|---|---|
| CD-LW01 | 144V | HK-LW-202-46 | TDC-JH-144-12 | Liquid |
| CD-LW02 | 312V | HK-LW-450-20 | TDC-JH-320-12 | Liquid |
| CD-LF01 | 144V | HK-LF-202-46 | TDC-JH-144-12 | Air |
| CD-LF02 | 312V | HK-LF-450-20 | TDC-JH-320-12 | Air |
⚡ Efficiency: High charging conversion efficiency to minimize energy loss.
🔒 Safety: No electrical accidents or dangerous situations during charging.
⚖️ Stability: Reliable and stable charging process for longevity.
🔌 Compatibility: Suitable for various electric vehicles and station equipment.
🛠️ System Integration: Integrates seamlessly with BMS and vehicle electronic control systems.

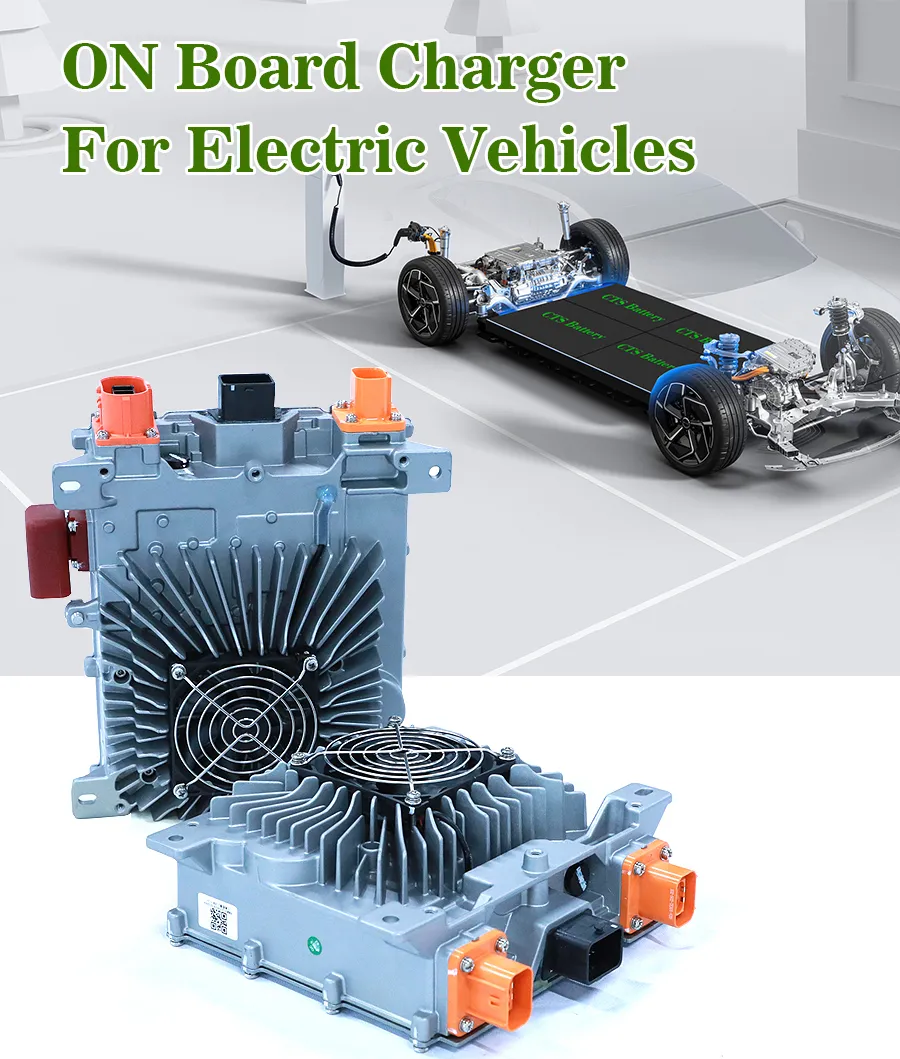

This product is designed specifically to supplement the power battery of electric vehicles, meeting international standards for charging equipment. With its compact size, high stability, and long lifespan, it serves as an ideal power source for modern EVs.
