| Model NO. | MECS-40kW-Y1 |

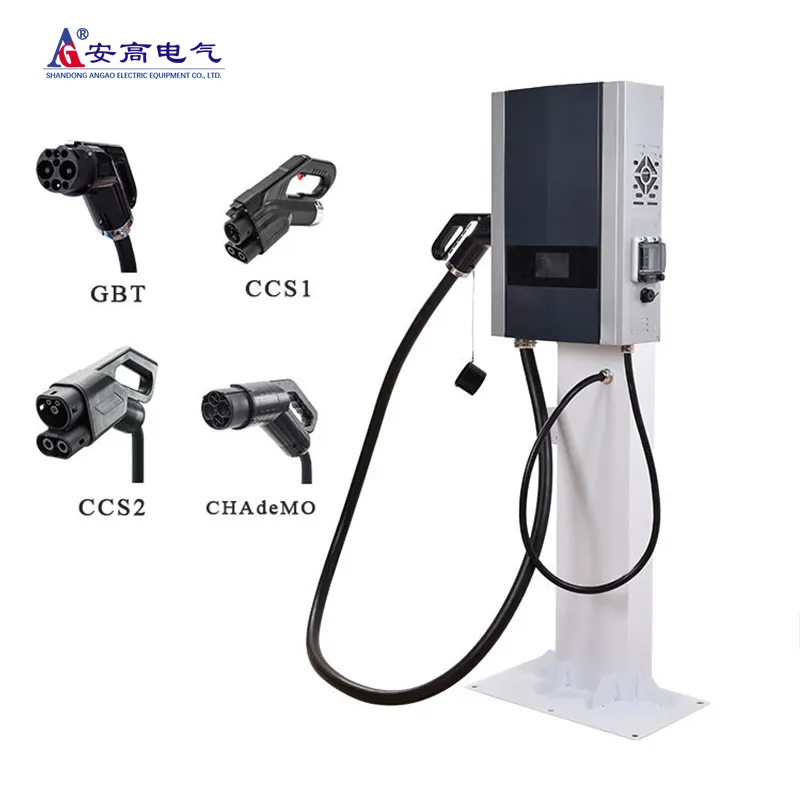

| Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic, Ethernet /4G(Optional) |
| Gun Line Length | 5m (Standard) |

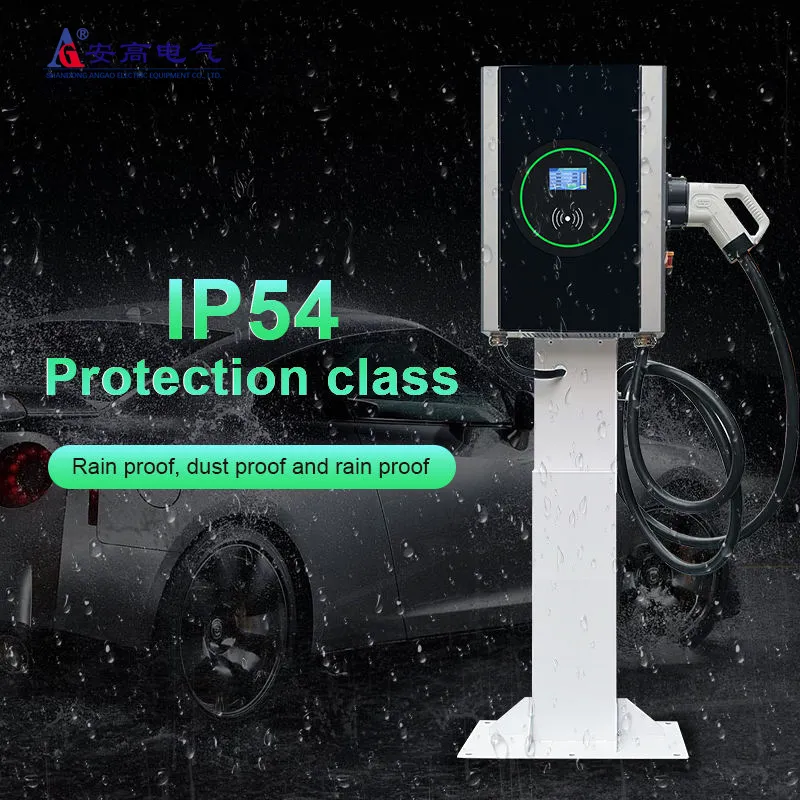

| Use Environment | Indoor or Outdoor (IP54) |
| Output Voltage Range | 150V-750V (Optional 200V-1000V) |
| Output Maximum Current | 80A/132A(Optional) |
| Operating Temperature Range | -40~+75°C |
| Output Maximum Efficiency | >95.0%(Rated Input and Output) |
| Rated Power | 40kw |
| Dimensions | 1520*600*300mm |
| Origin | China |

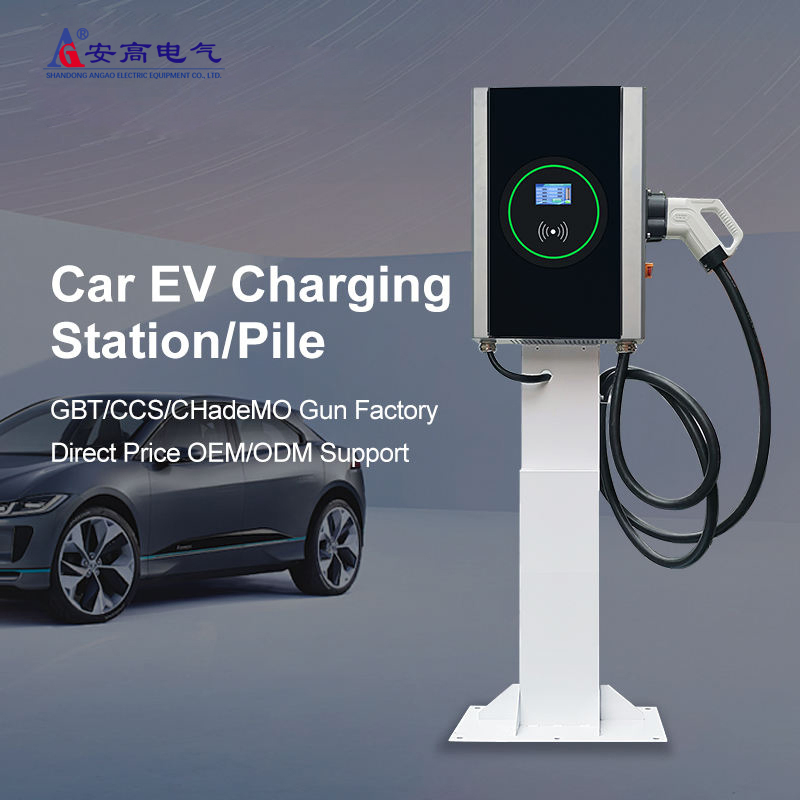

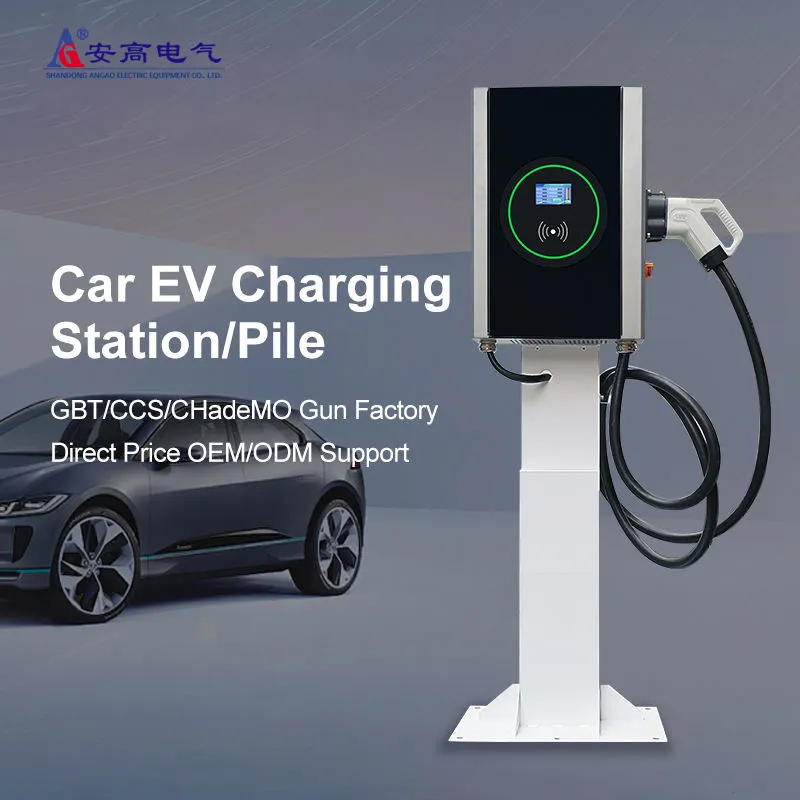

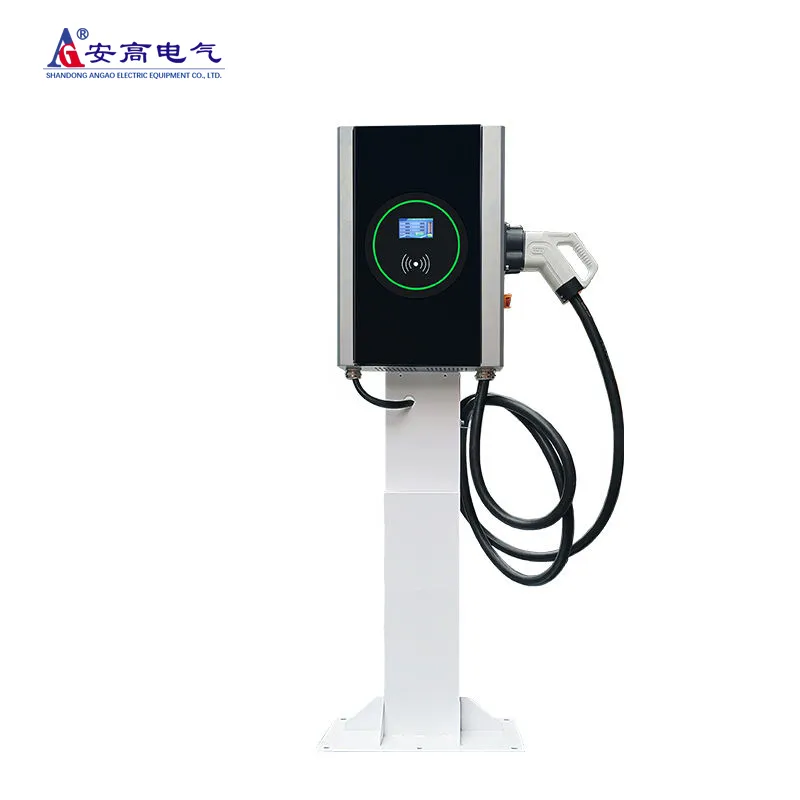

New generation integrated DC fast charging pile for electric vehicles. The module adopts an isolated air channel potting design, ensuring high reliability.
System compatibility with 40kw power configuration, meeting the charging needs of various vehicles. Suitable for residential communities, small public construction venues, malls, and more.
| Product Name | Smart DC charging pile |

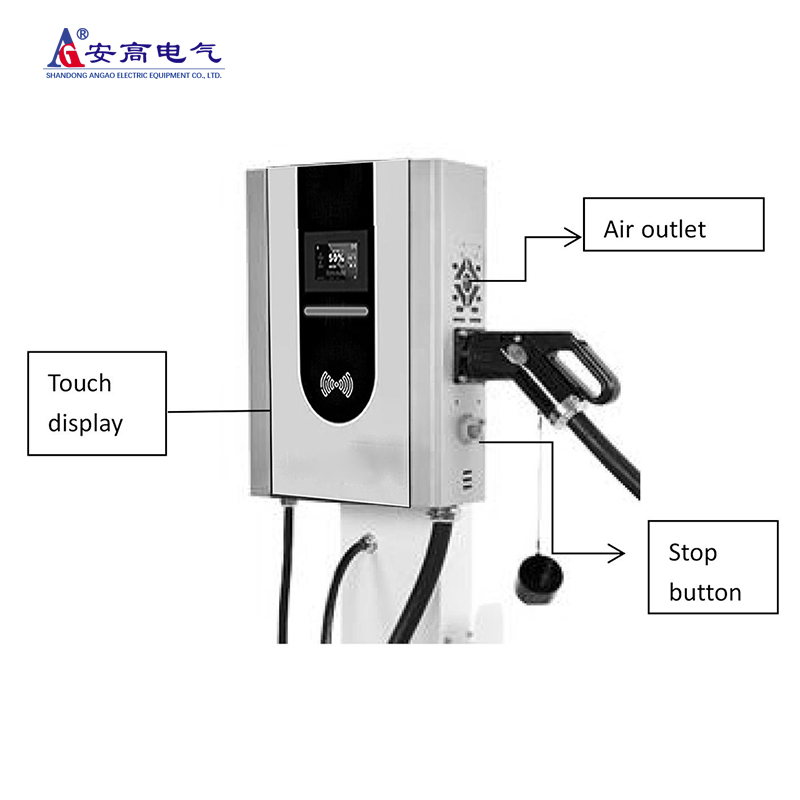

| How It Is Displayed | 7-inch touch screen |

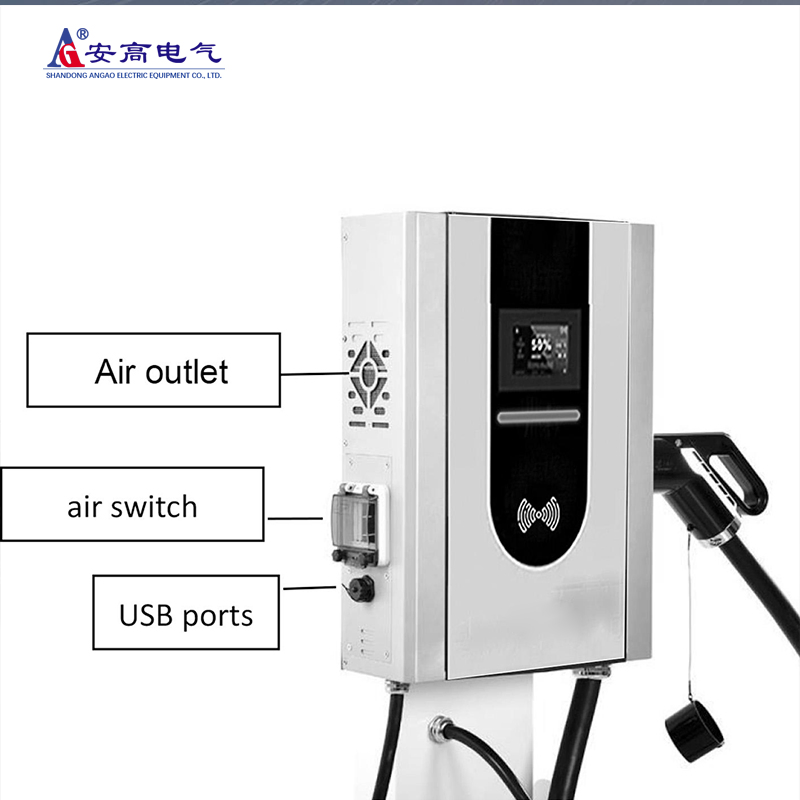

| Heat Dissipation | Intelligent air cooling |
| Input Voltage | Three-phase five-wire AC input, AC input range 380VAC ± 15% |
| Power Factor | >0.99 |
| Total Harmonic Current | <5% (Rated Input) |
| Output Ripple Coefficient | <0.5% |

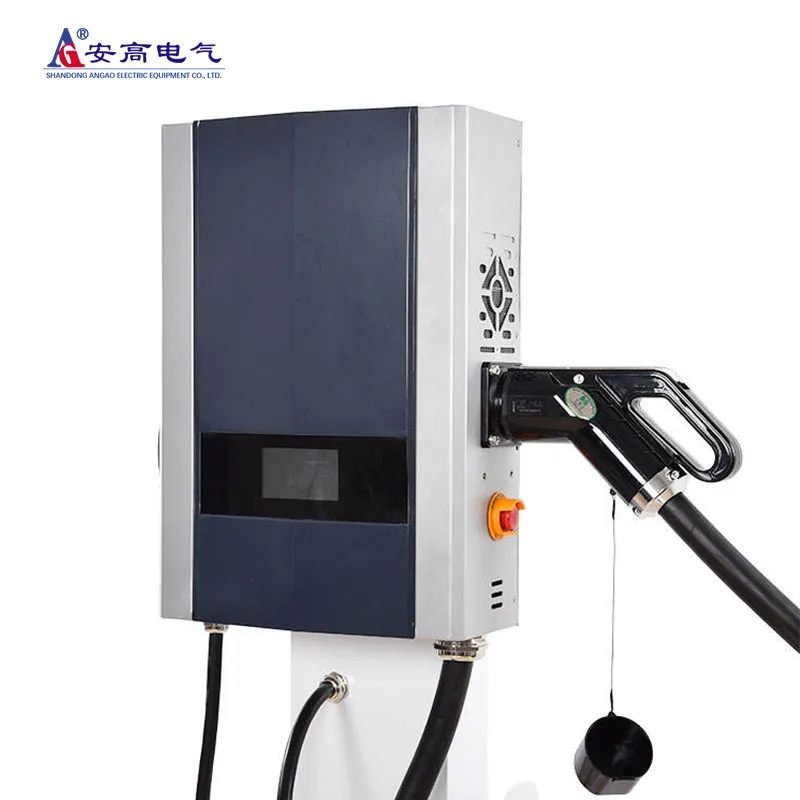

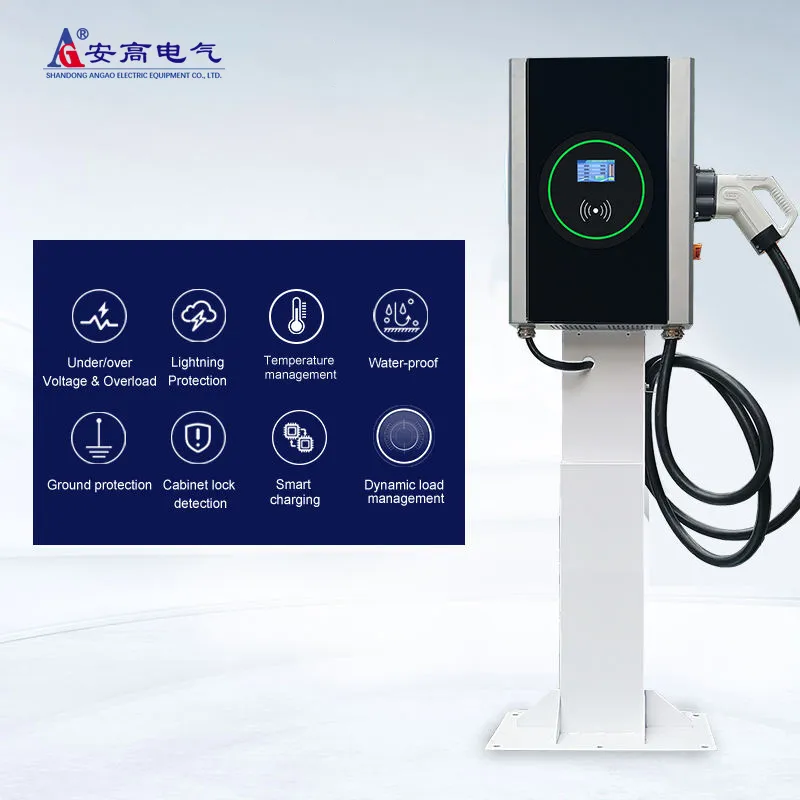

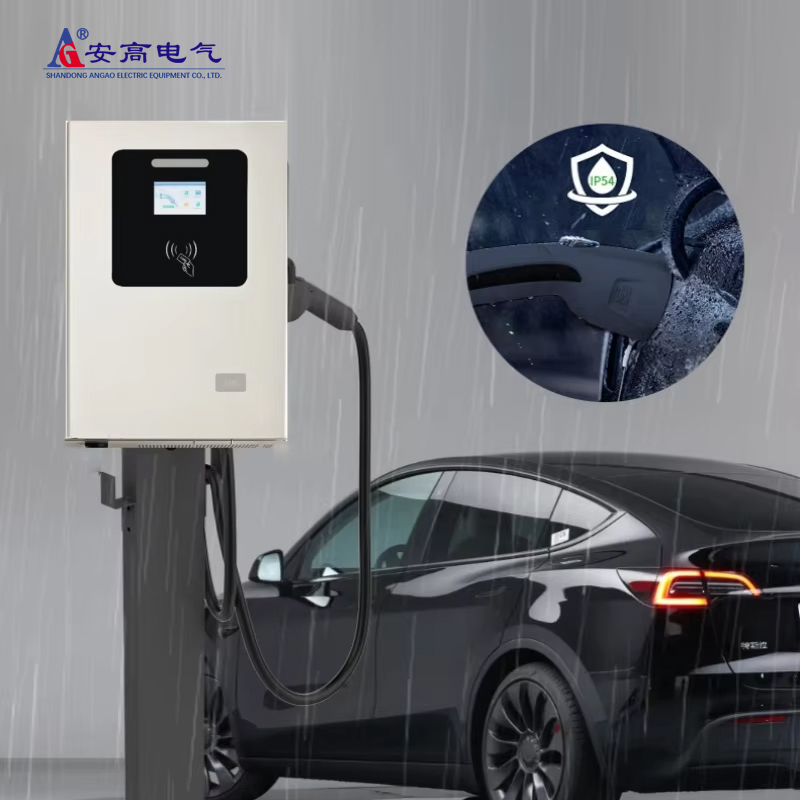

High protection design, anti-rain and snow, wind-proof sand, salt spray and anti-condensation. 7-inch capacitive screen with windproof door design.
Strict EMC, high and low temperature testing. All devices selected from first-class brands to ensure full machine protection.
Charging efficiency up to 95%. Ultra-low operating losses and standby power consumption with excellent power quality.
| Package Size | 1100.00cm * 900.00cm * 2050.00cm |
| Package Gross Weight | 220.000kg |
| Transport Package | Wooden Case |
