NexBolt Charger
1 / 5

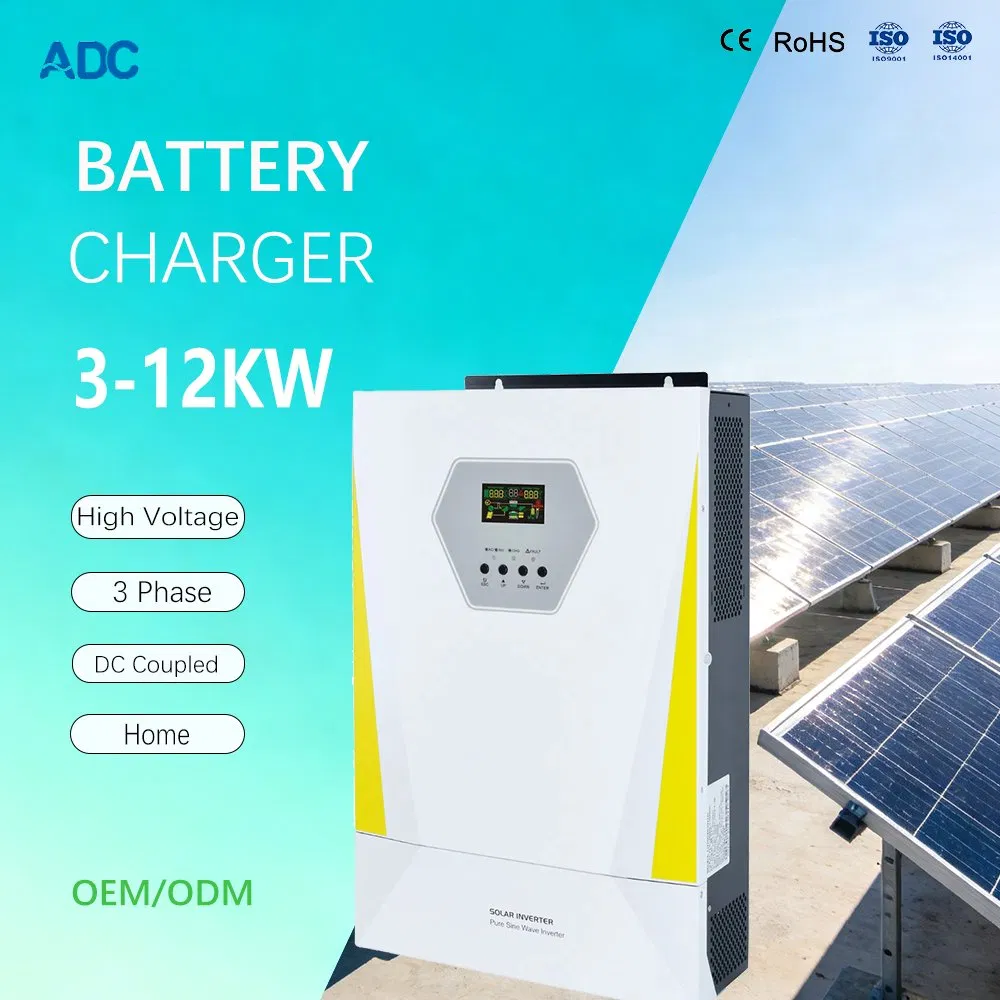

Advanced MPPT with up to 99.9% efficiency. PV Input Voltage Range 60-450VDC.
Output high-quality pure sine wave AC power with IP65 protection degree.
Multiple safety approvals with integrated software and hardware security protection.
Industrial design with a modern aesthetic look. Easy to install and simple to use.

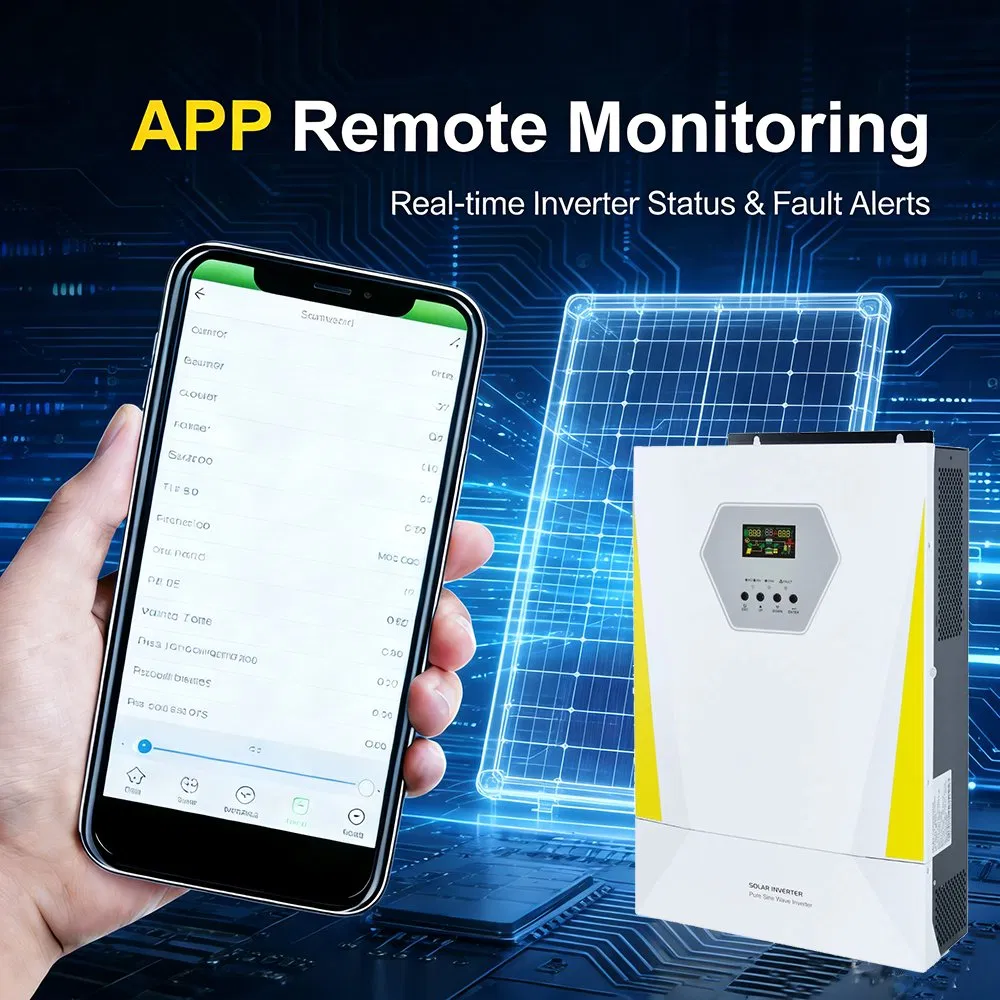

WiFi & GPRS available for iOS and Android. Supports Li-ion battery BMS communication.
ON/OFF function for AC output control. Time-slot function to save cost with peak-valley rates.
| DATASHEET | S6-EH3P(12-20)K-H | ||
| Models | 12K | 15K | 20K |
| Input DC (PV side) | |||
| Max. PV array size | 24 kW | 30 kW | 40 kW |
| Max. input voltage | 1000 V | ||
| MPPT voltage range | 200 - 850 V | ||
| Battery | |||
| Battery type | Li-ion | ||
| Battery voltage range | 120 - 800 V | ||
| General Data | |||
| Dimensions (W×H×D) | 563 × 546 × 250 mm | ||
| Ingress protection | IP66 | ||

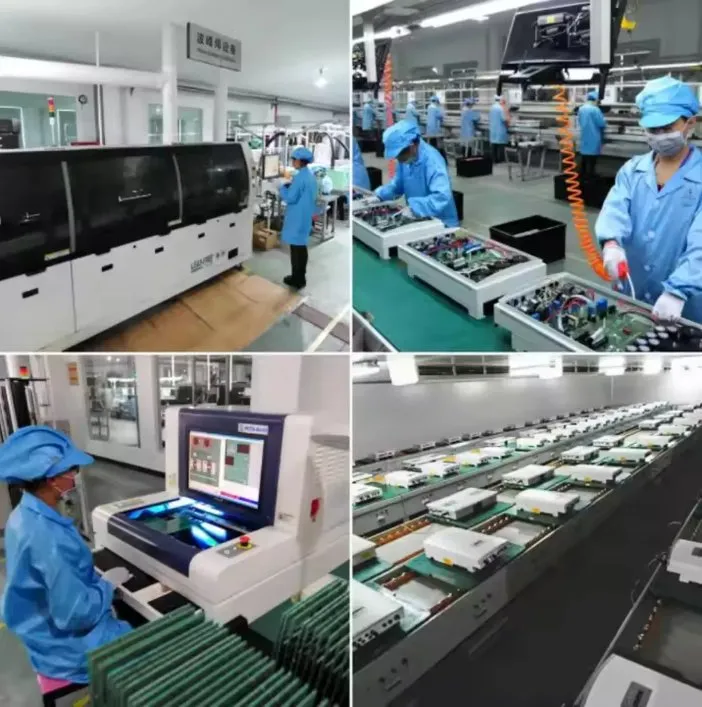

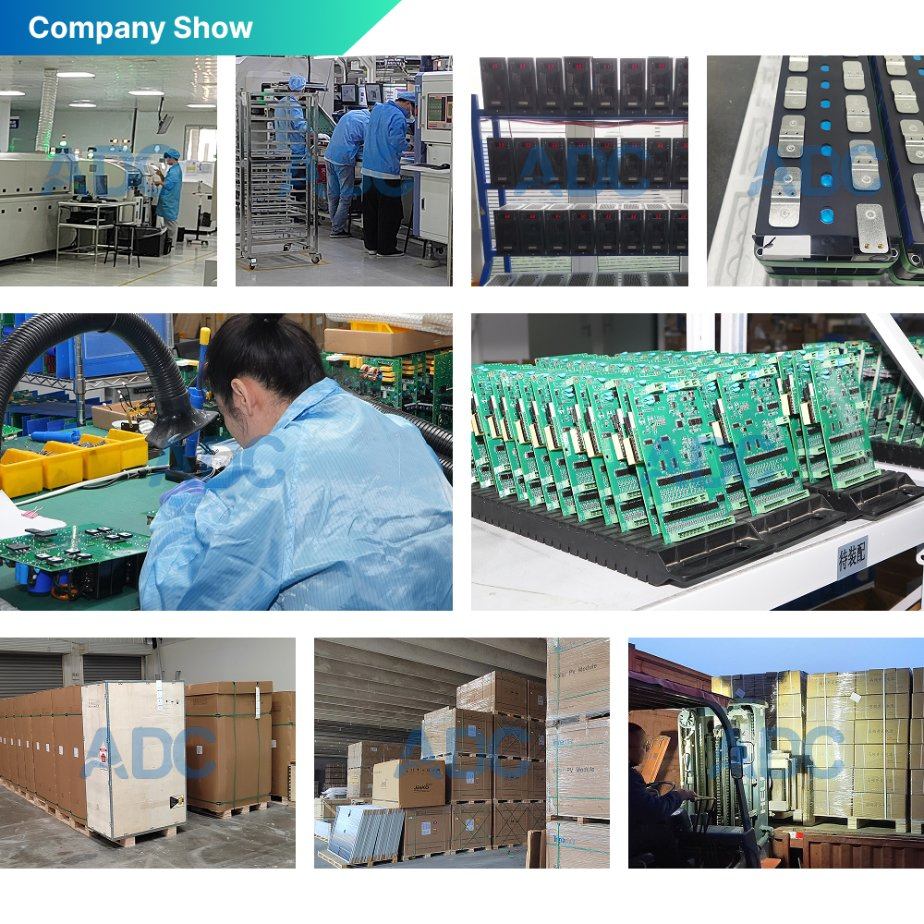

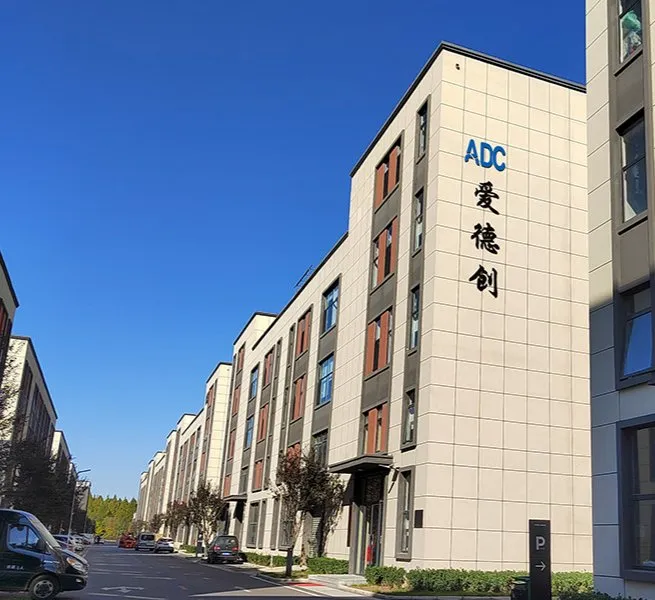

With over 20 years in power technology, our team specializes in AC to DC, DC to AC, battery monitoring, and solar energy systems. Our manufacturing facility covers 40,000 m² and is ISO 9001 and ISO 14001 certified. We employ over 70 R&D engineers to ensure product innovation and customization to meet global requirements.
