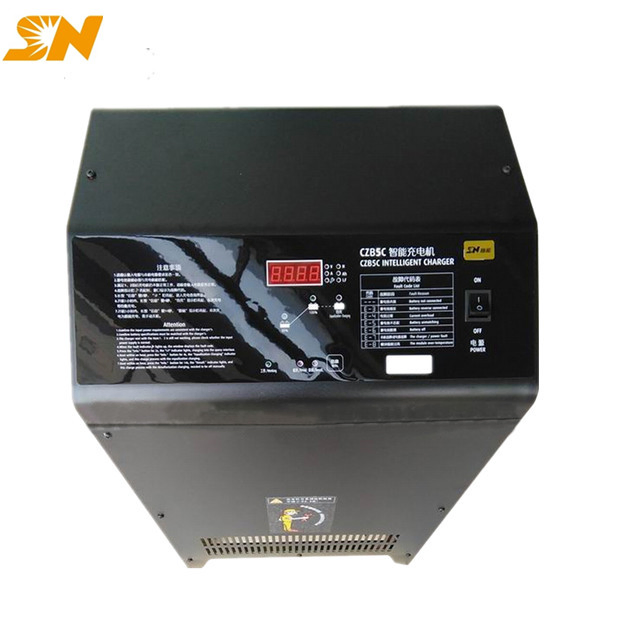

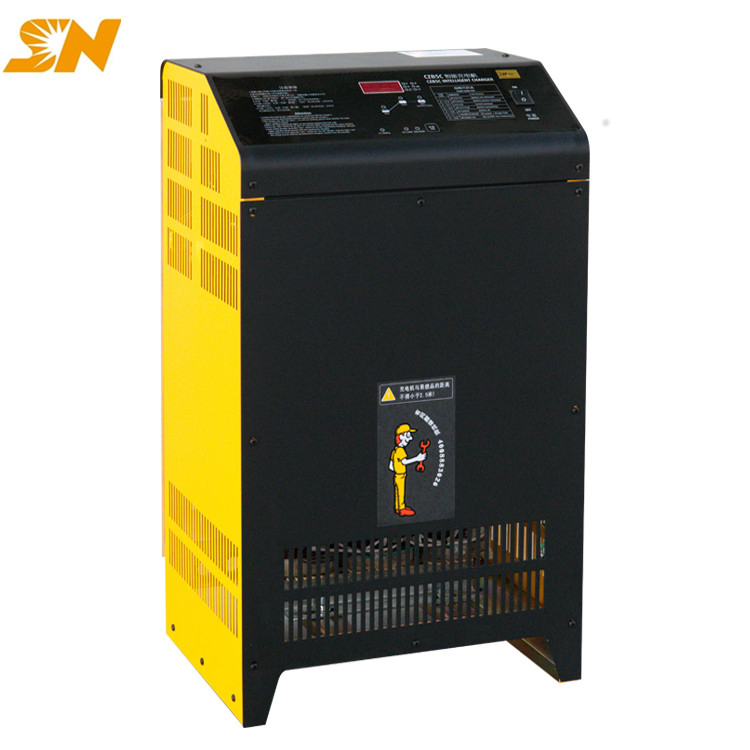

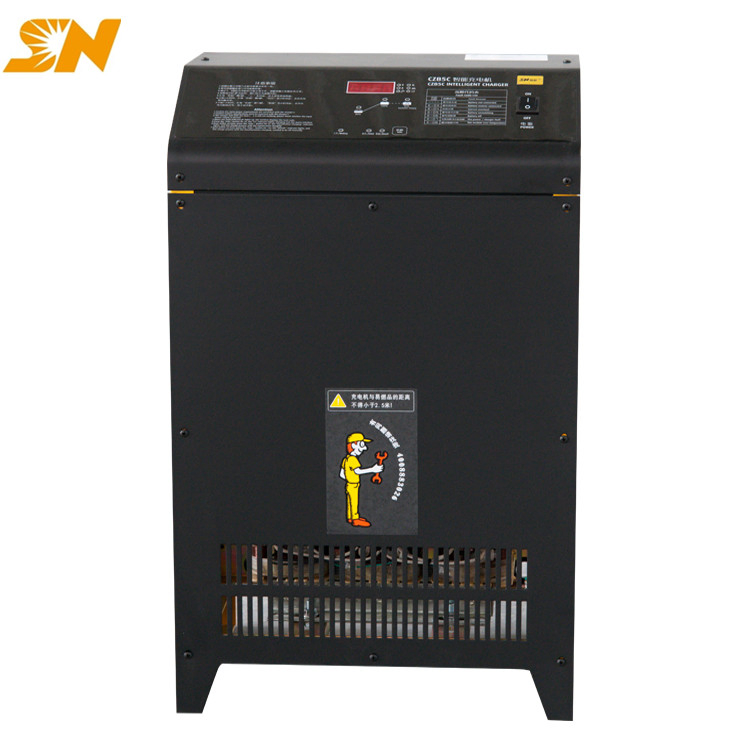

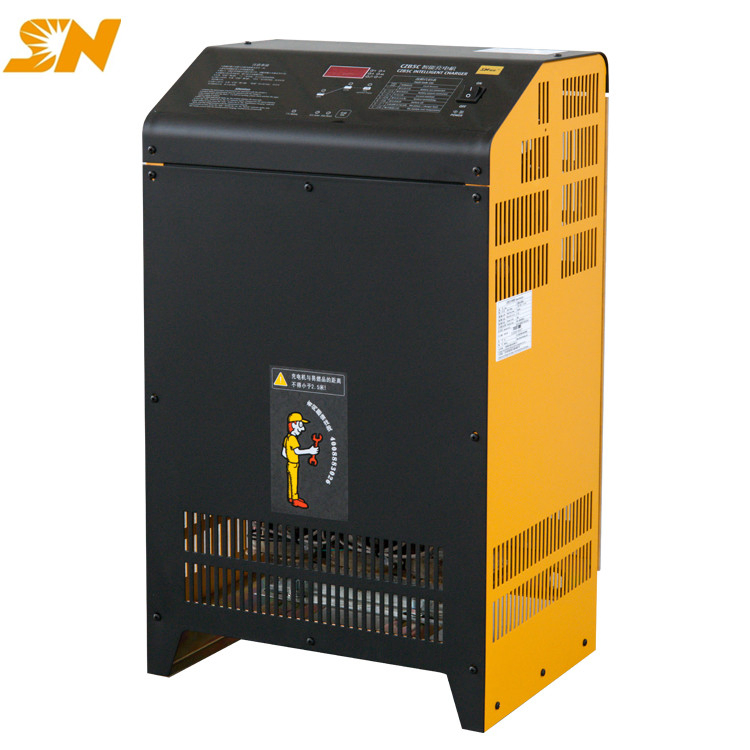

Shineng Czb5c 48V 100A AGM Forklift Battery Charger for Electric Pallet Truck Boat Stacker

Customization:	Available
Rated Power:	4.8kw
Charging Current:	100A

i

Basic Specifications

Model NO.

CZB5C

Input Voltage

100-400V

Type

Electric

Charging Type

Electric Charger

Principle

Transformer/ Rectifier

Battery Parameters

48V/580~800ah(7.5h~10h)

Warranty

1 Year

Keywords

Forklift Charger

Input Power

7.5kVA

Size

52.6*360*883mm

Output Current

100A

Main Power

380V

Input Current

11.4A

Weight

86kg

Certificate

CE

Transport Package

Carton

HS Code

8504409999

Production Capacity

1000 Pieces Per Month

★

Product Introduction

CZB5C 48V 100a AGM forklift battery charger for electric pallet truck boat stacker

✔

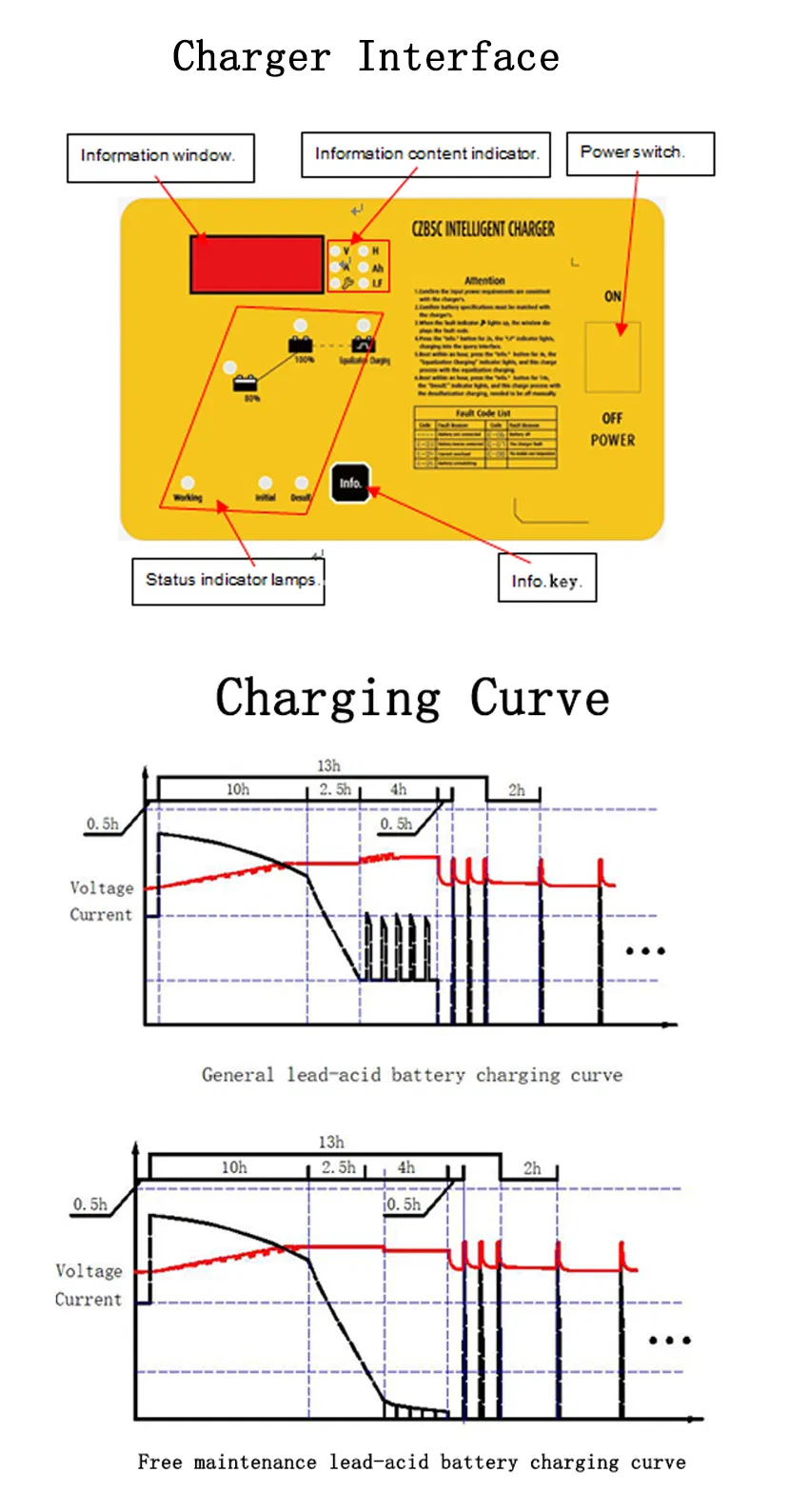

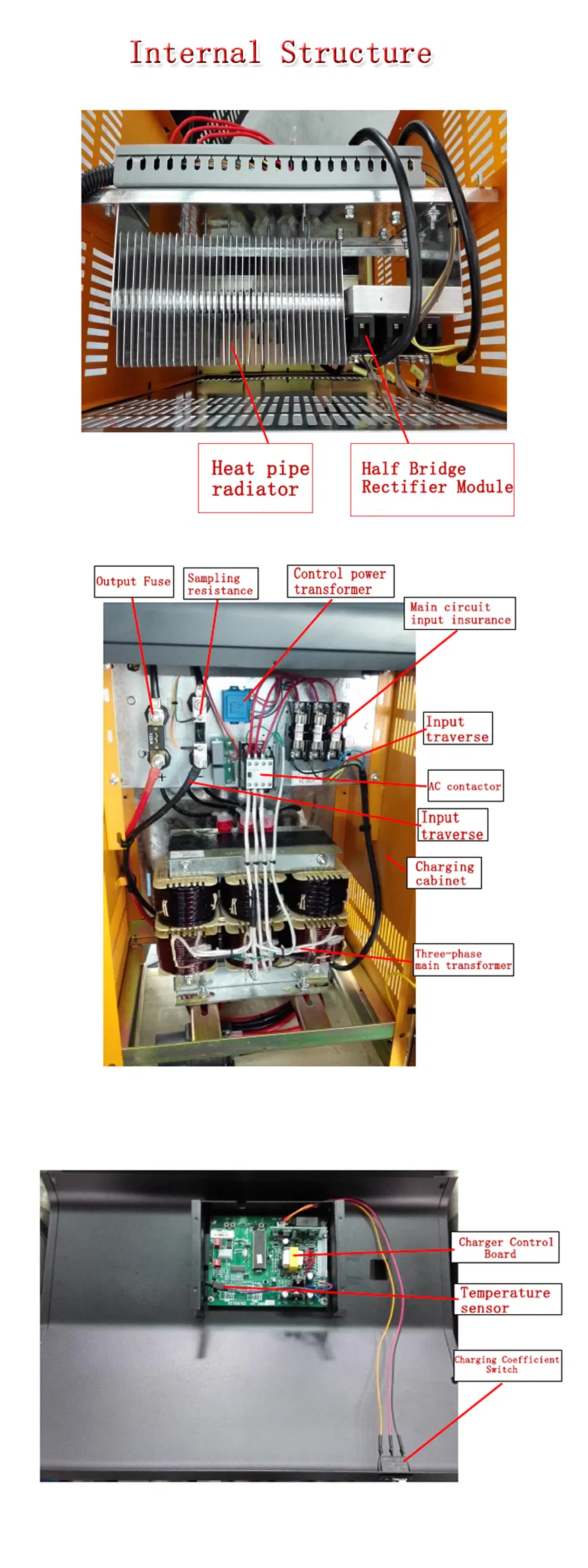

Combines leakage transformer, silicon-controlled rectifier technology, and Micro-computer control to improve the Wsa+Pulse charging characteristic curve.

✔

Prolongs battery life significantly by performing pulse charges before gas emissions and in the late stages of recharge.

✔

Dynamic tracking and automatic adjustment of charging parameters through PID control technology.

✔

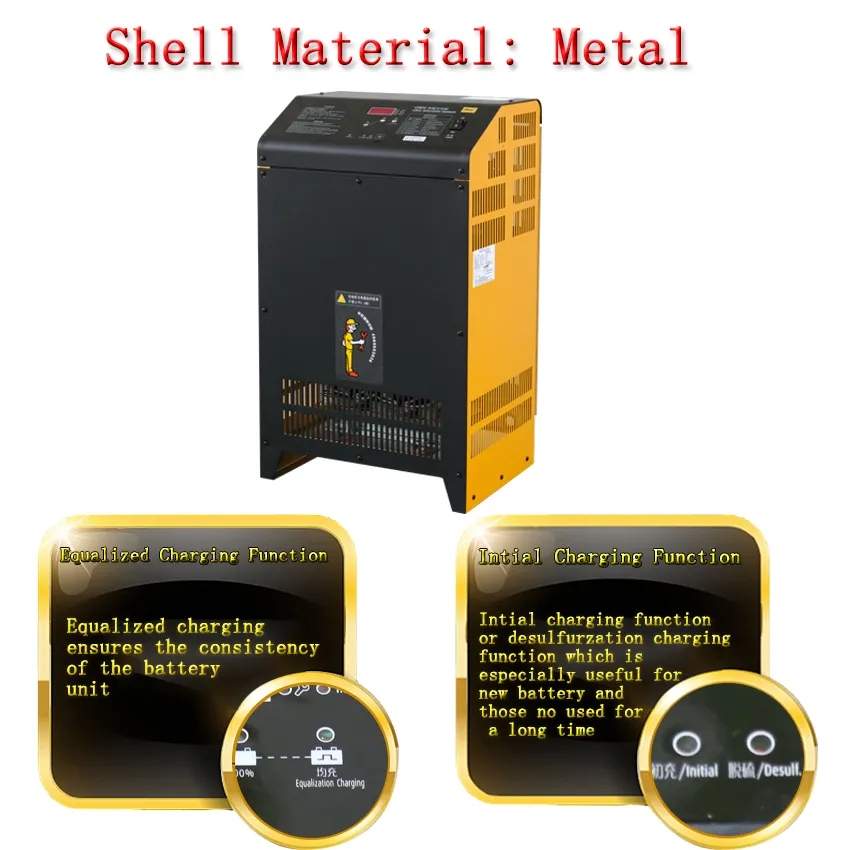

Features automatic detection, delaying, and soft-start. Includes temperature compensation when voltage reaches the tipping point of gas emission.

✔

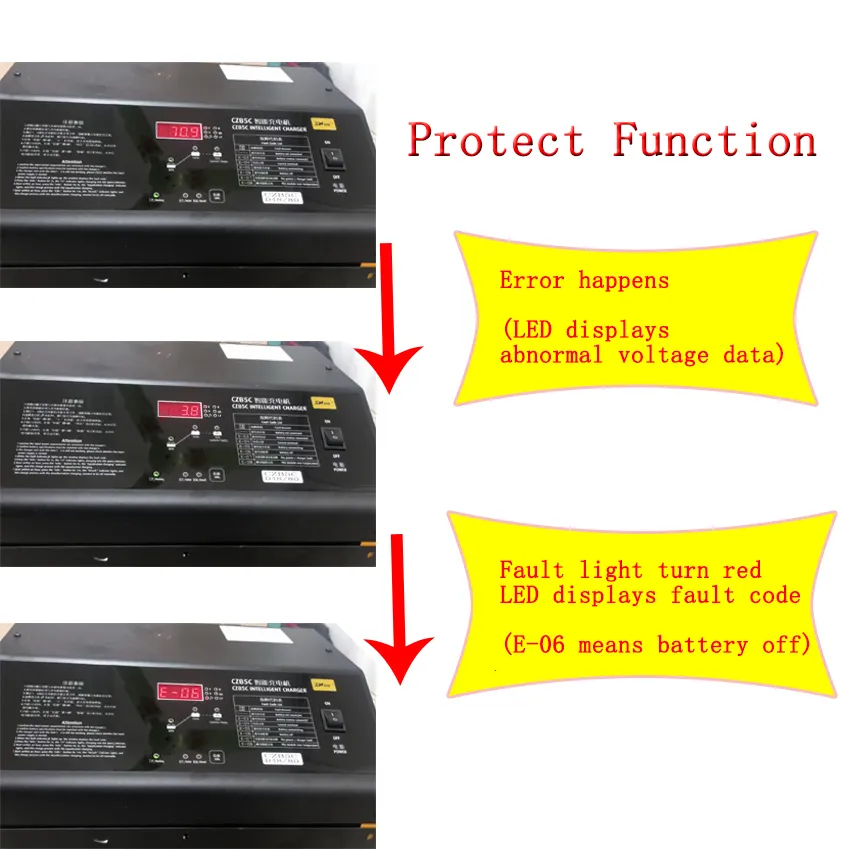

Comprehensive protection and alarm functions for open circuit, reverse connection, overload, and short circuit.

✔

Initial charging and desulfuration charging functions specifically for new or long-unused batteries.

✔

Data recording for the past 30 charging results.

✔

Applicable to electric pallet trucks, forklifts, lift trucks, and electric tour buses using lead-acid batteries.

📋

Technical Parameters

Type(V/A)	Main Power	Input Power (KVA)	Input Current(A)	Output Current(A)	Battery Parameters V/AH	Size(mm)	Weight(Kg)
CZB5C-E24V/20A	Single Phase	0.75	3.4	20	24V/115-160AH	240350260	21.0
CZB5C-E24V/50A		1.9	8.5	50	24V/290-400AH	240350260	25.5
CZB5C-E24V/80A		3.0	13.6	80	24V/464-640AH	466360783	40.0
CZB5C-E48V/30A		2.3	10.2	30	48V/175-240AH	240350260	28
CZB5C-E48V/65A		4.9	22.2	65	48V/375-520AH	466360783	50
CZB5C-E72V/30A		3.4	15.3	30	72V/175-240AH	280430280	35.5
CZB5C-D48V/80A	Three Phase	6.0	9.1	80	48V/465-640AH	466360785	68
CZB5C-D48V/100A		7.5	11.4	100	48V/580-800AH	526360883	86
CZB5C-D80V/100A		12.5	19.0	100	80V/580-800AH	526360883	95
CZB5C-D80V/120A		15.0	22.8	120	80V/700~960AH	526360883	107

📷

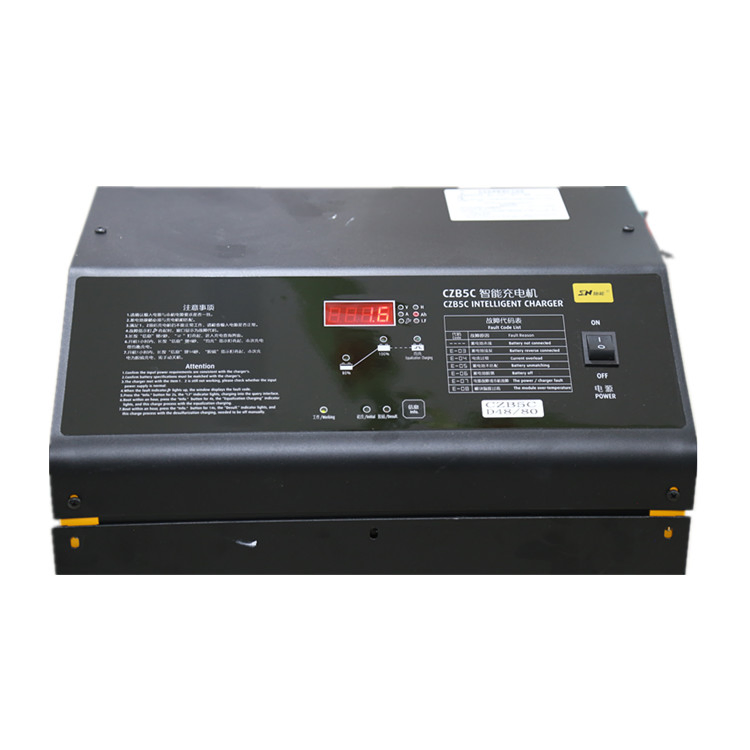

Product Display

🏭

Manufacturing & Packing

?

Frequently Asked Questions

Are you a trading company or a factory?

We are a professional battery and charger manufacturer with a history dating back to 1984, providing over 30 years of industry expertise.

What is the warranty for your battery chargers?

All products come with a one-year warranty. We also provide ongoing technical support to ensure your equipment operates efficiently.

Which battery types are compatible with this charger?

Our chargers are designed for various battery types, including lead-acid and lithium batteries, commonly used in forklifts and electric vehicles.

What safety protections are included?

The charger includes protection and alarm functions for open circuits, reverse connections, overloads, and short circuits to ensure safe operation.

Do you have international certifications?

Yes, we hold CE and ISO certificates. We can also apply for other specific certificates if required by your local market.

How do you ensure product quality?

Our professional technical team conducts extensive stability tests on all new products. Every unit is thoroughly inspected before delivery to maintain high standards.
