| Model NO. | MECS-30kW-Y1 |
| Rated Power | 30kW |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentication |
| Input Voltage | Three-Phase Five-Wire AC Input, 380VAC ± 15% |
| Output Voltage Range | 150V-750V |
| Max Output Current | 75A / 100A (Optional) |
| Protection Rating | IP54 (Indoor or Outdoor) |
| Display | 4.3 inch / 7 inch Touch Screen |
| Cooling System | Intelligent Air Cooling |
| Operating Temp | -30°C to +70°C |

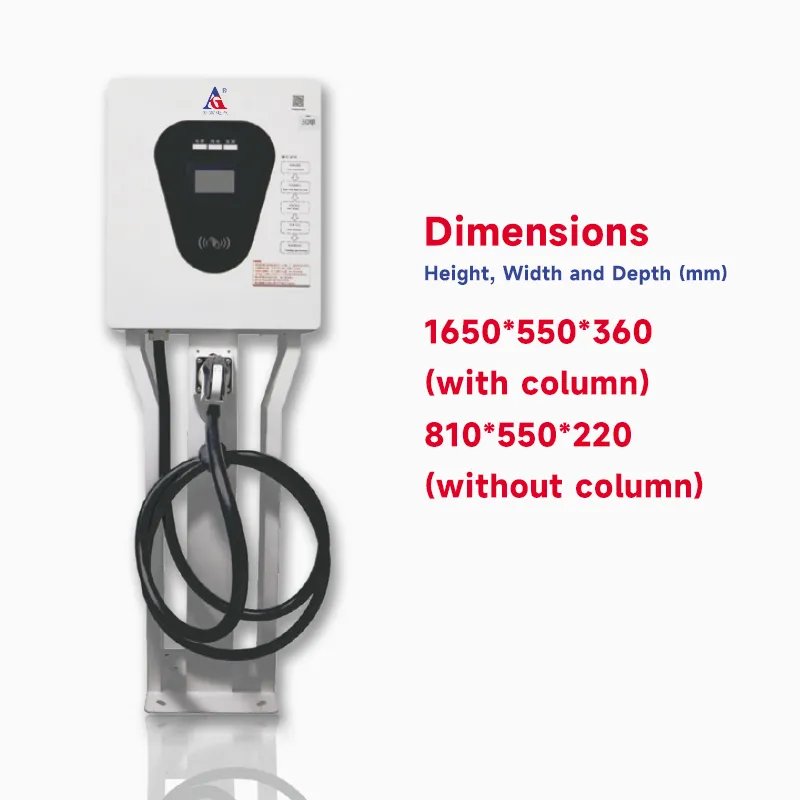

| Product Dimensions | 1650*550*360mm (with column) / 810*550*220mm (without column) |

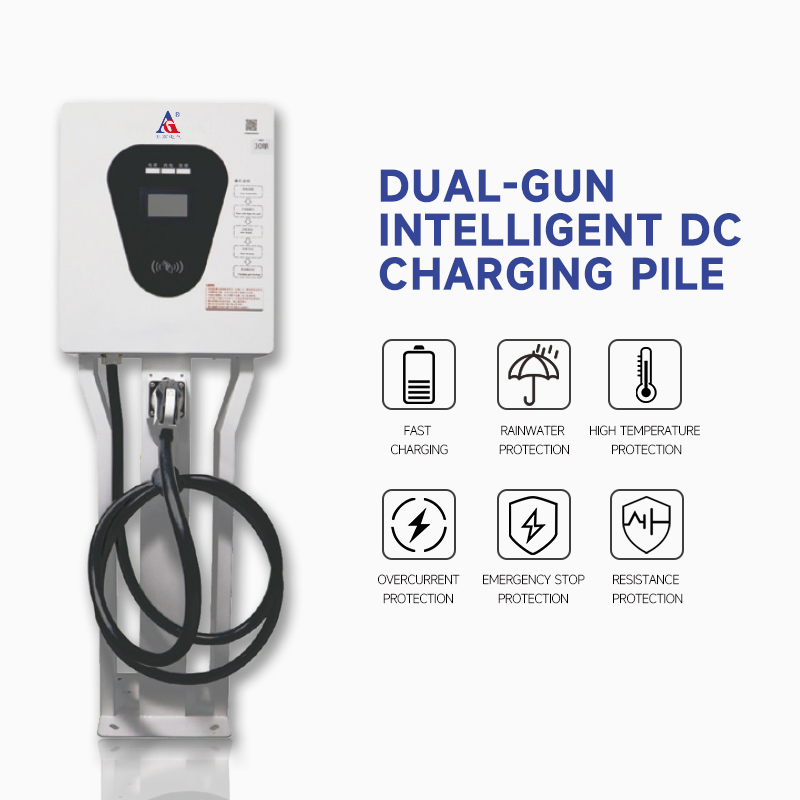

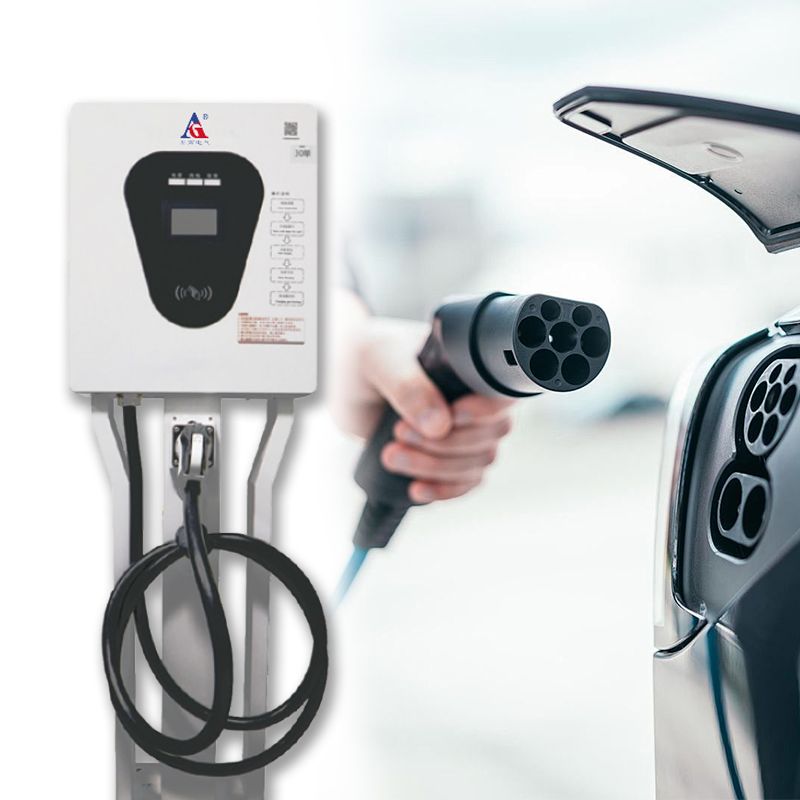

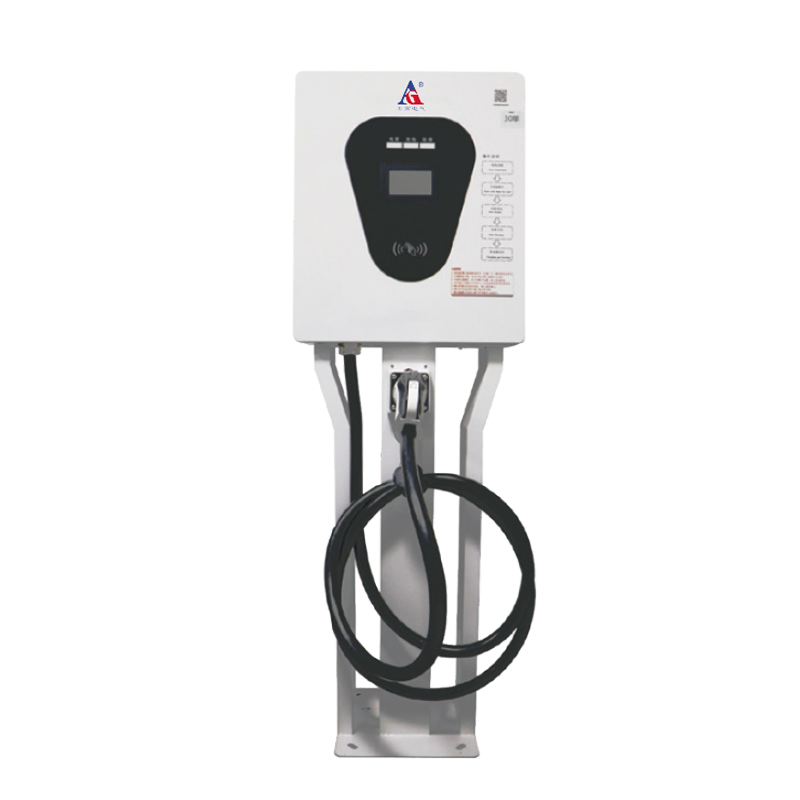

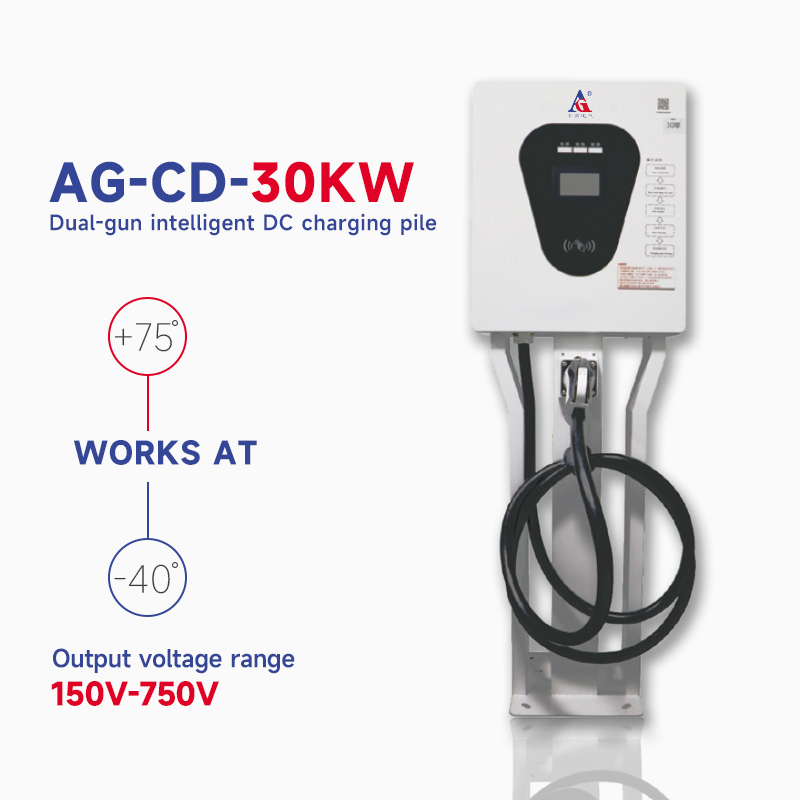

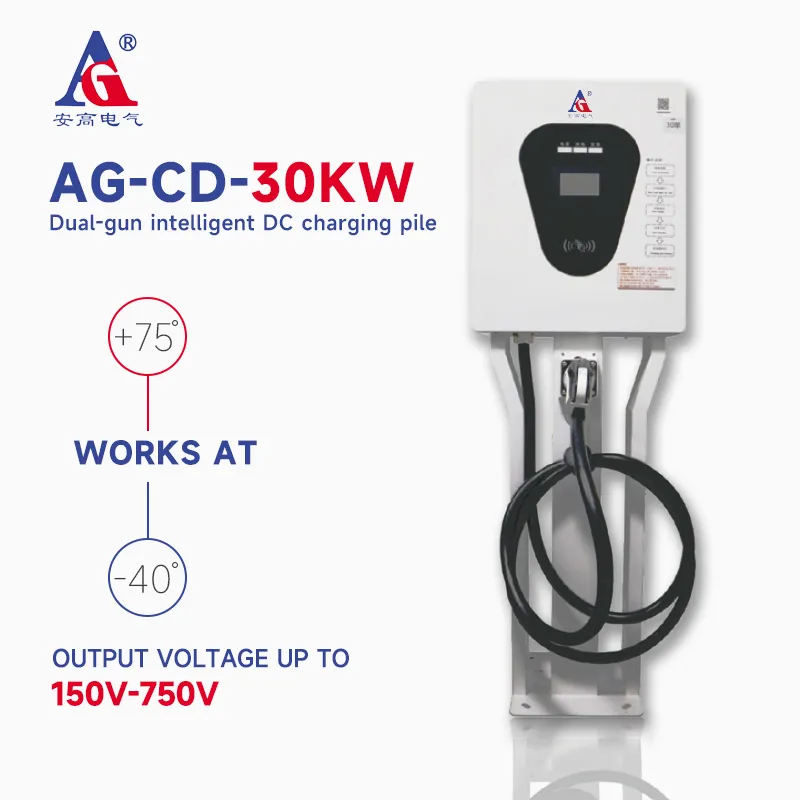

The MECS-30kW-Y1 is a new generation integrated DC fast charging pile for electric vehicles. Featuring an isolated air channel potting design for high reliability, this system is compatible with 30kW power configurations, meeting the charging needs of various vehicles in residential communities, small public venues, and malls.
Charging efficiency up to 95% with excellent power quality and low output ripple. Ultra-low operating losses and standby power consumption.
High protection design: anti-rain, anti-snow, wind-proof sand, salt spray, and anti-condensation. 4.3 inch resistive screen with windproof front door design.
Multiple startup modes: Card swiping, App (code scanning), VIN automatic identification, and scheduling. Real-time operation and maintenance monitoring.
Rigorous EMC testing, high and low temperature stability, and whole machine protection standards. Components selected from first-class brands.
