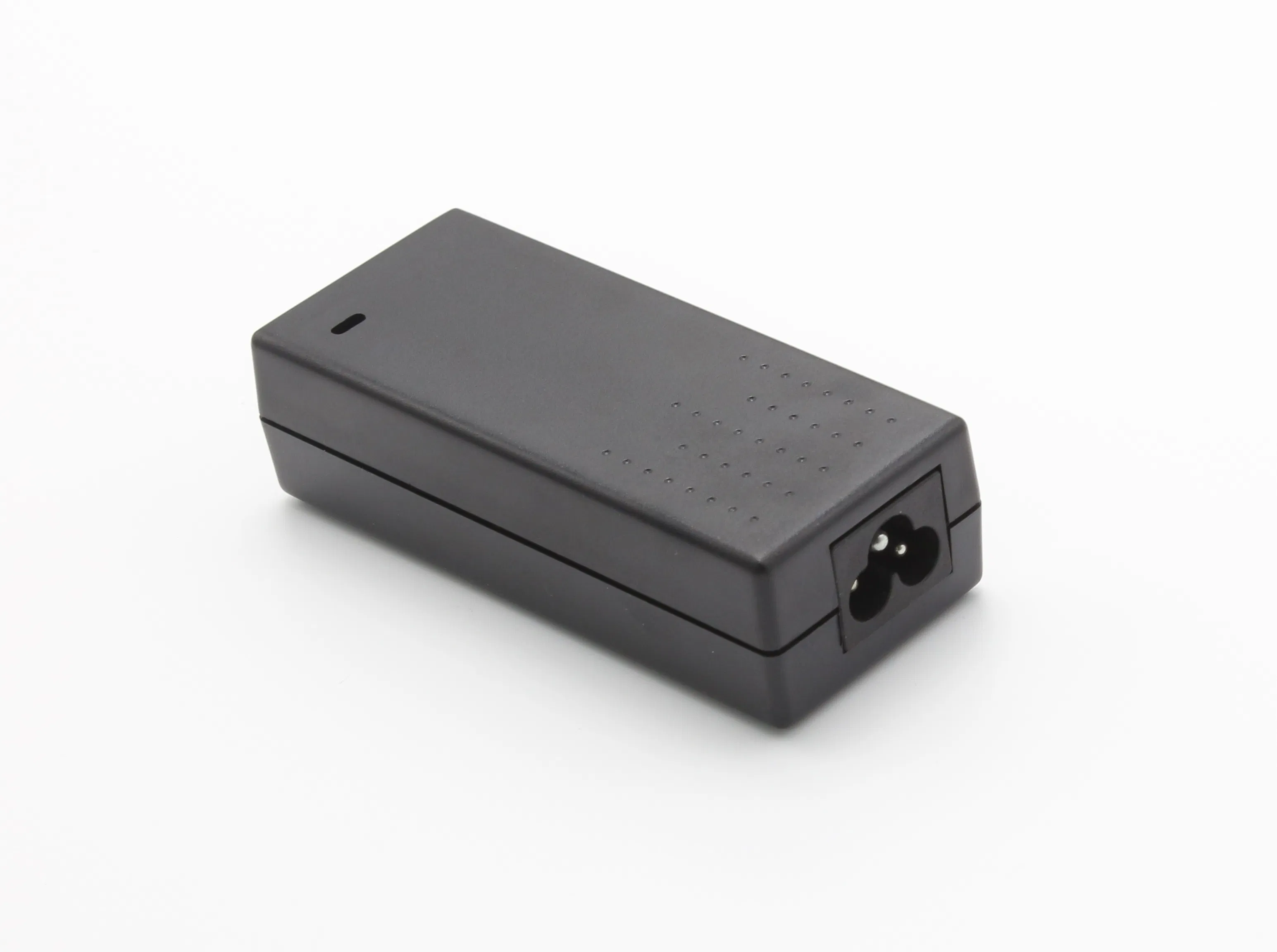

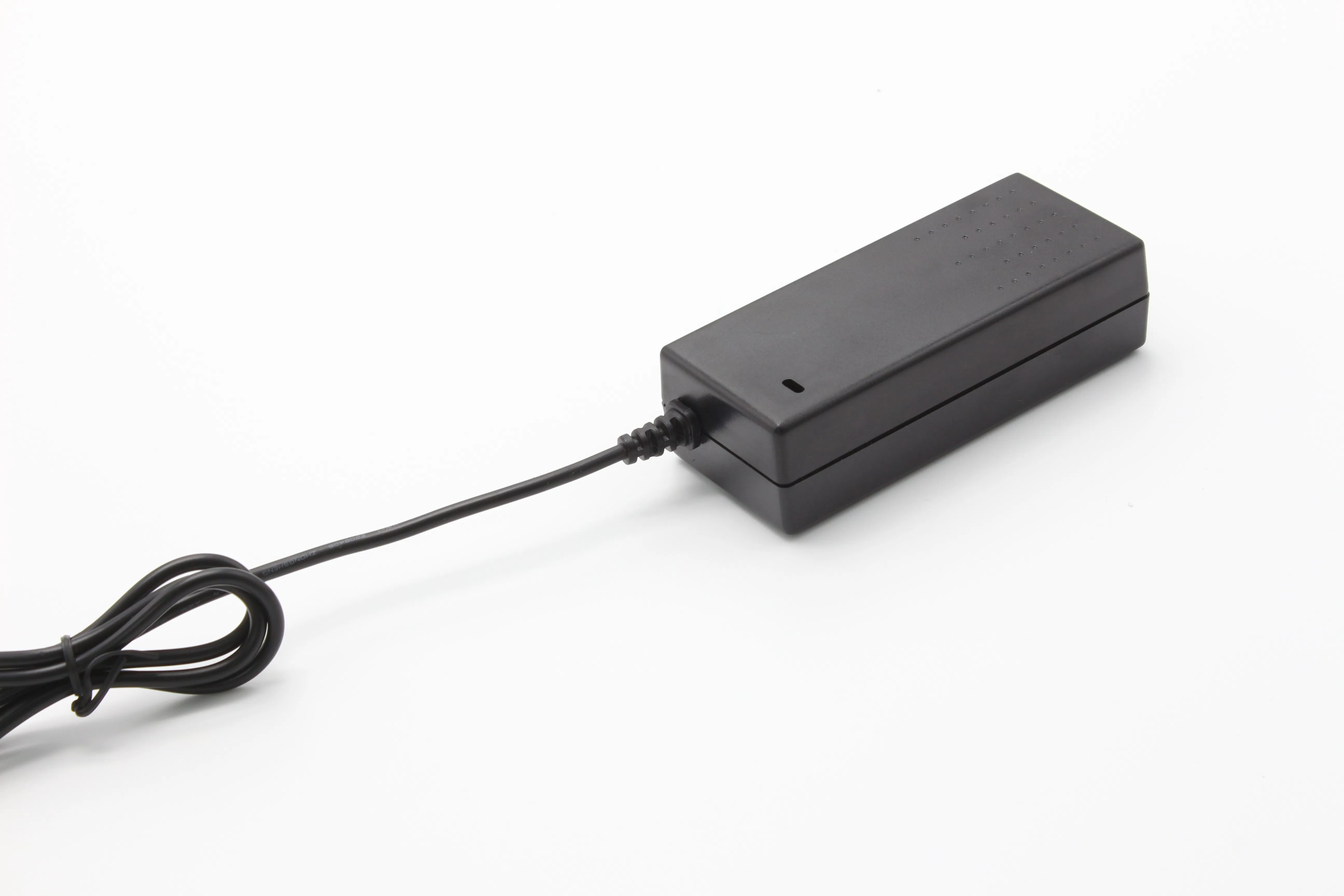

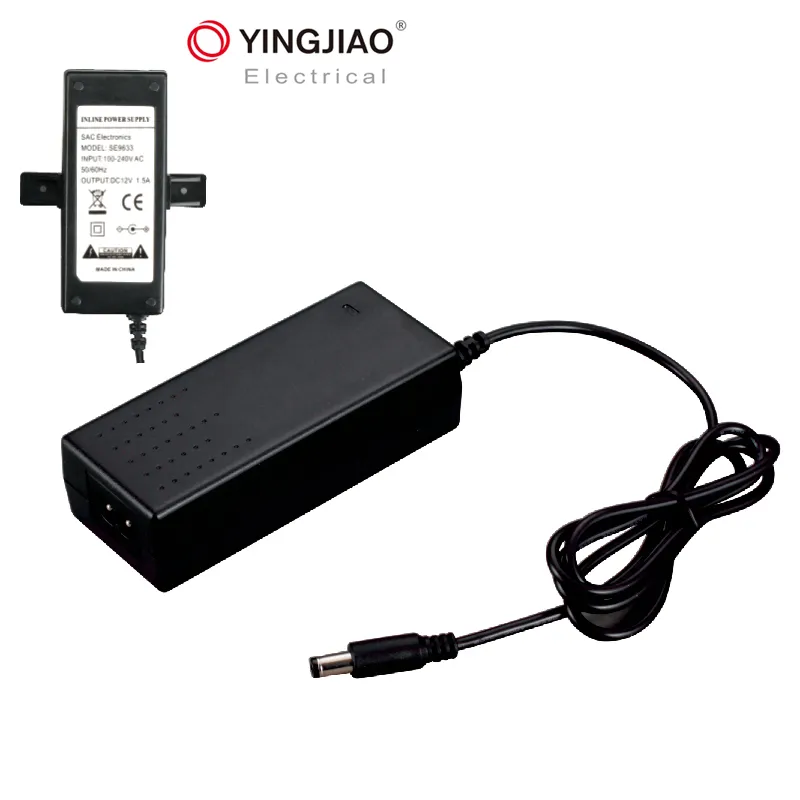

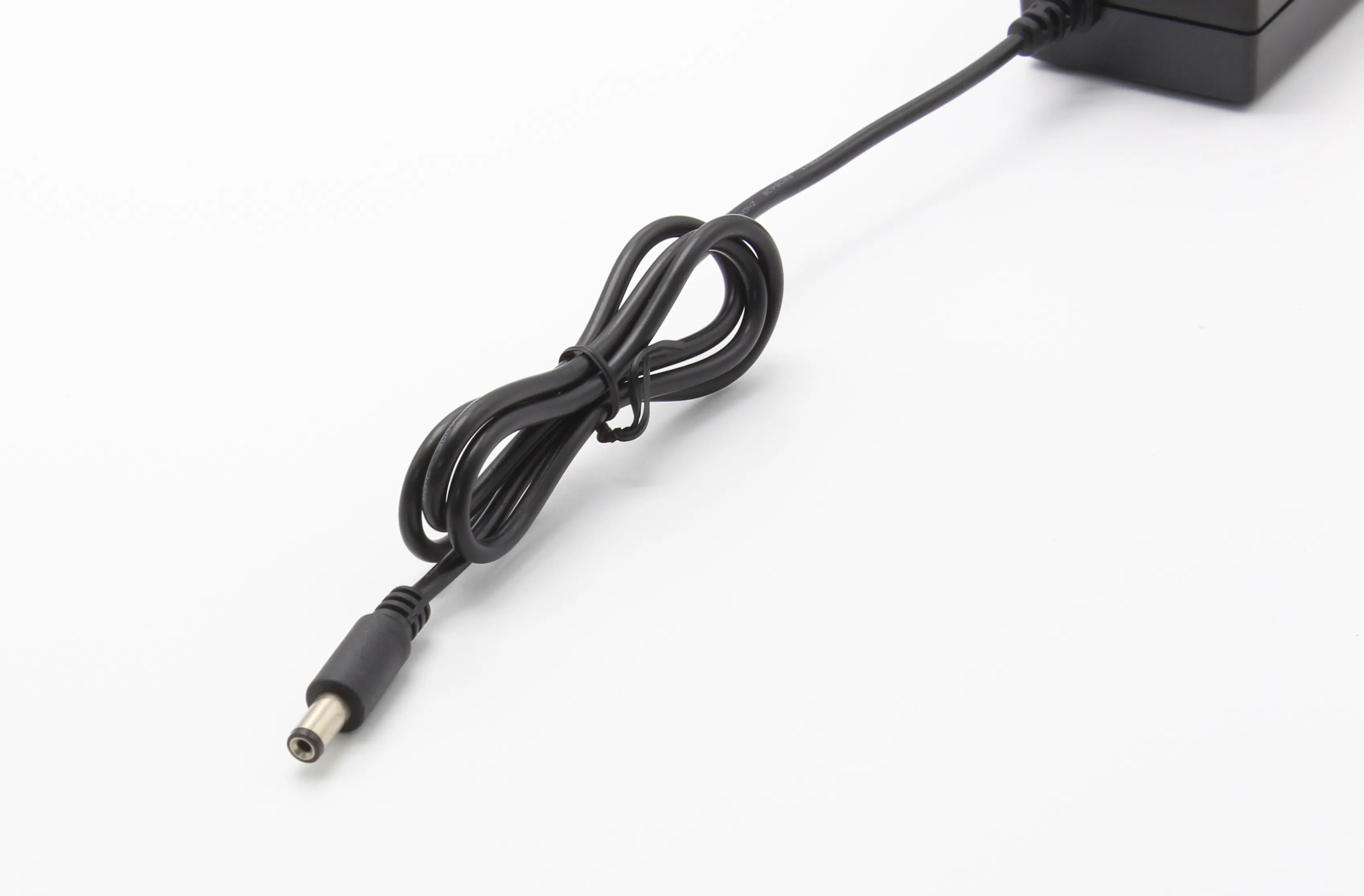

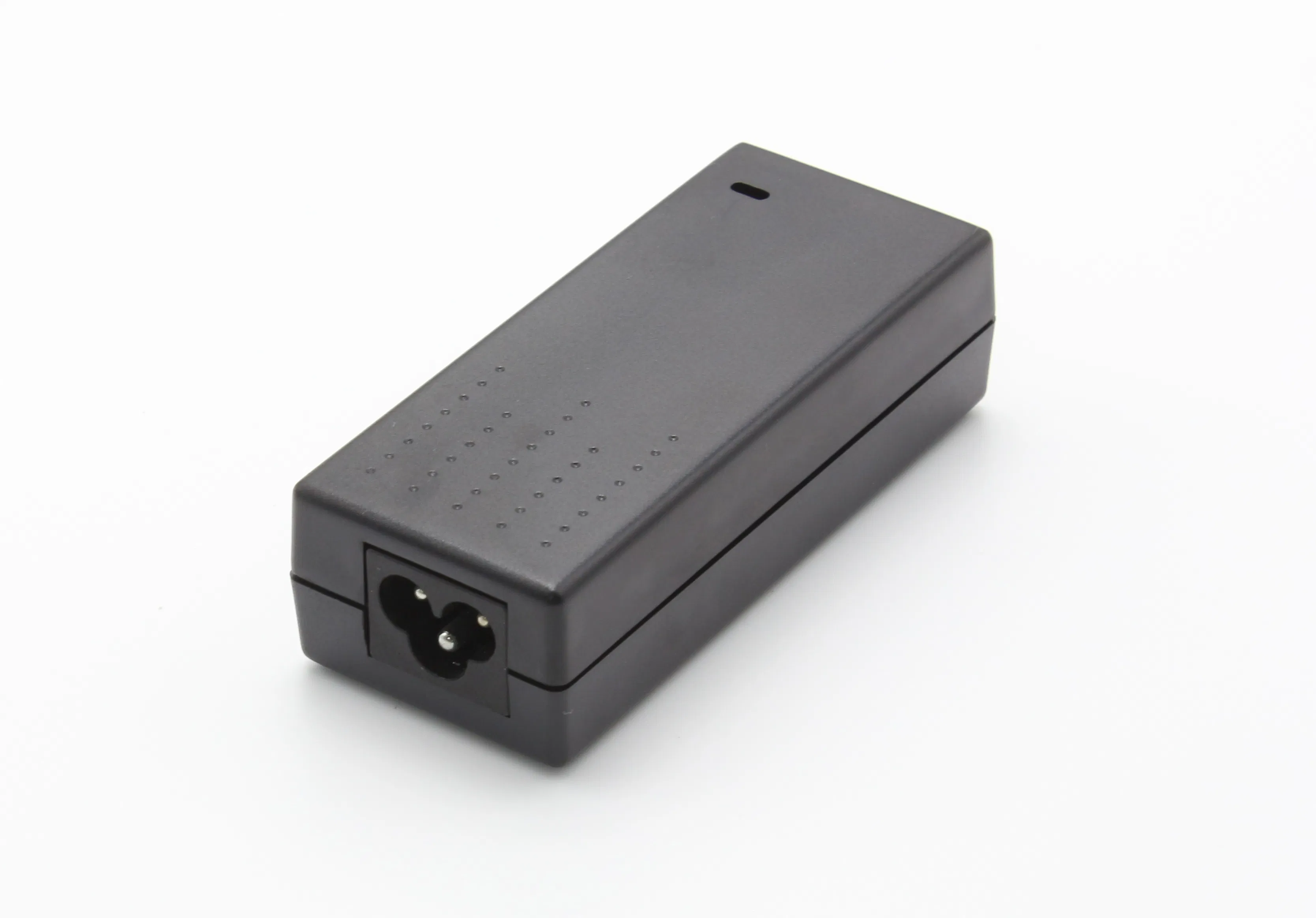

NexBolt Charger
1 / 5
| Feature | Details |
|---|---|
| Protections | Short Circuit / Over Current / Over Voltage |
| Leakage Current | 0.25mA Max. at 264VAC input |
| No Load Power | <0.3W |
| Working Temp | -20°C to 50°C |
| Working Humidity | 5%-90% RH non-condensing |
| MTBF | 100,000 hours minimum at full load (25°C) |
| LED Indicator | Red: Charging; Green: Idle/Fully Charged |
| Model | DC Voltage | Rated Current | Current Range | Rated Power |
|---|---|---|---|---|
| YS25-1682000 | 16.8V | 2000mA | 100-2000mA | 33.6W |
| YS25-2101500 | 21V | 1500mA | 100-1500mA | 31.5W |
| YS25-2521200 | 25.2V | 1200mA | 100-1200mA | 30.24W |
| YS25-2941000 | 29.4V | 1000mA | 100-1000mA | 29.4W |
| YS25-3361000 | 33.6V | 1000mA | 100-1000mA | 33.6W |
✅ Industry Experience: Established in 1996, specializing in switching power adapters, transformers, and chargers.
✅ Advanced Facility: Operating within a 15,000 square meter facility with over 600 skilled employees and 12 high-frequency transformer production lines.
✅ Technology Driven: Equipped with advanced Panasonic high-speed SMT sets, lead-free wave soldering machines, and 16 large plastic injection machines.
✅ Global Quality: Certified by ISO9001:2000, with product approvals including CE, EMC, RoHS, REACH, UL, TUV, and CCC.
