New 48V 20A Waterproof Battery Charger for Lithium and Lead Acid Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Technical Specifications

Model NO.

UY1200S-4820

Input Voltage

Wide 110-230VAC

Type

Lithium Ion Battery Charger

Charging Type

Pre-Charger, CV, CV and Floating

Principle

Micro-Processor Controlled

Gross Weight

4.0 Kg

Applications

Both 48V Lithium or Lead Acid Battery

Max Voltage

54.6V 58.4V 58.8V

Charge Steps

Pre-Charge, Cc, CV, Float

Waterproof Rate

IP65/IP66

Power Factor

>0.99

Specification

283*164*93 mm

⚡

Product Description

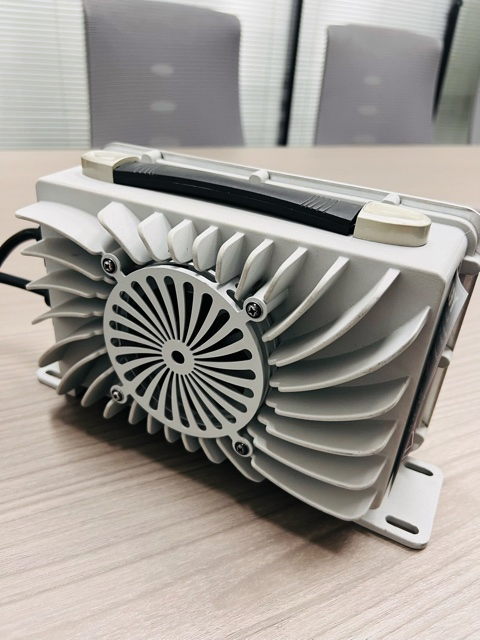

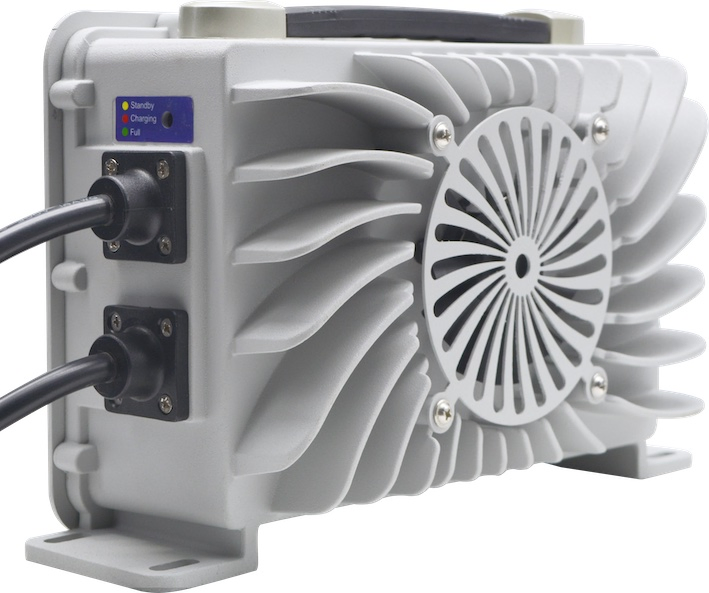

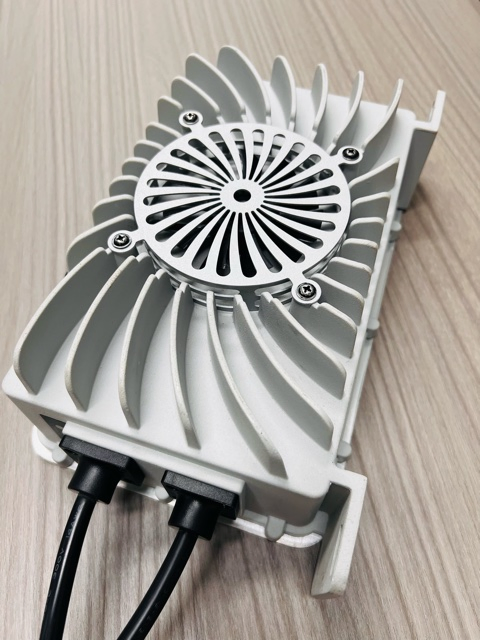

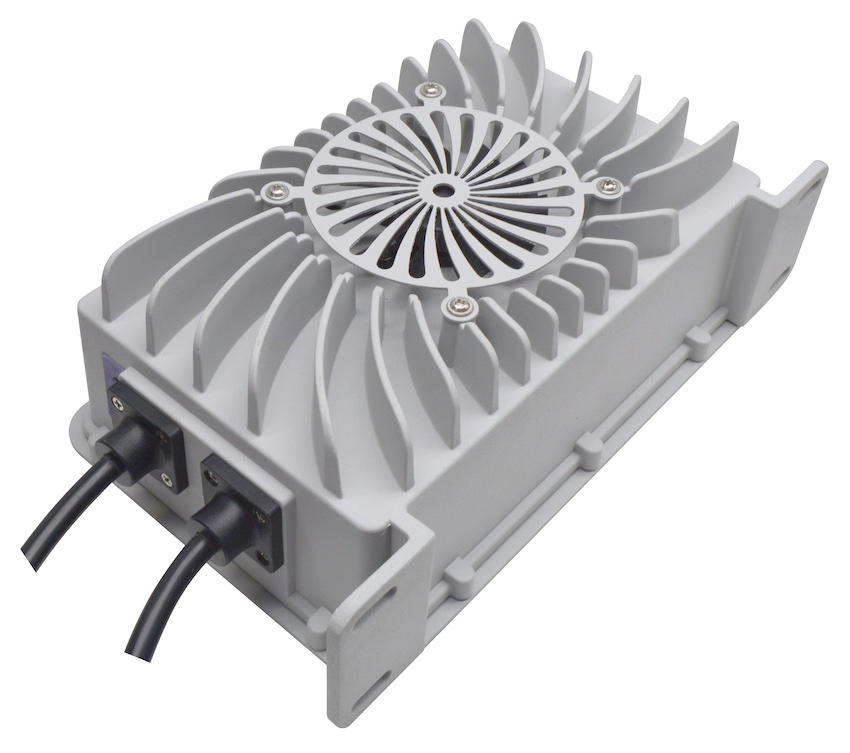

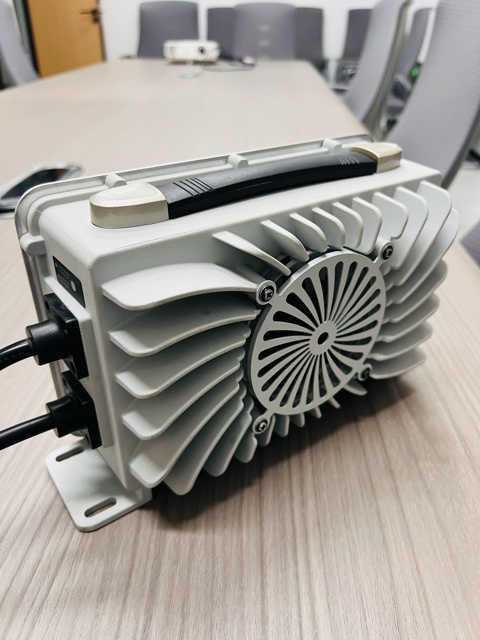

Smart 48V 20A Waterproof Battery Charger

Charge both 48V Lead-acid and Lithium batteries with a single device. Features CAN or RS485 communication ports for intelligent monitoring.

One Charger for 3 Battery Modes:

LPF: LiFePO4 Battery
NCM: LioO2, LiNiO2, LiMnO2
Lead Acid: AGM, GEL, SLA

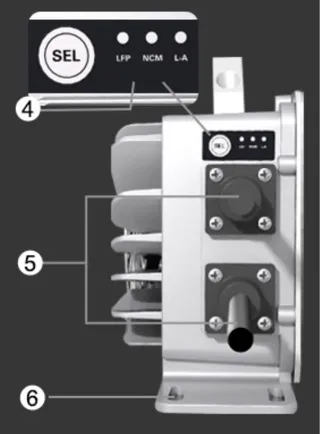

Select your battery type via the "SEL" button to initiate an automated 4-stage smart charging process.

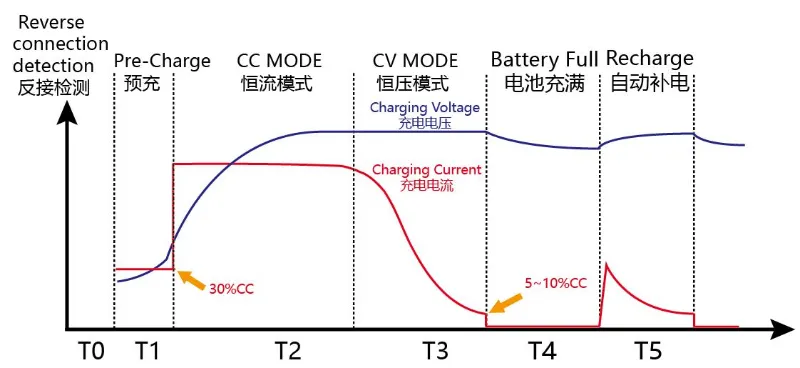

Charging Curve:

🛠

Key Features

Advanced high-frequency switching power supply
Isolated DC output from AC input
Universal AC Input 110-230Vac with PFC
Communication Port: CAN bus/RS485
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity
Aluminum casing, lightweight and portable
100% full load burn-in test
IP65/IP66 Waterproof & Anti-vibration

🖼

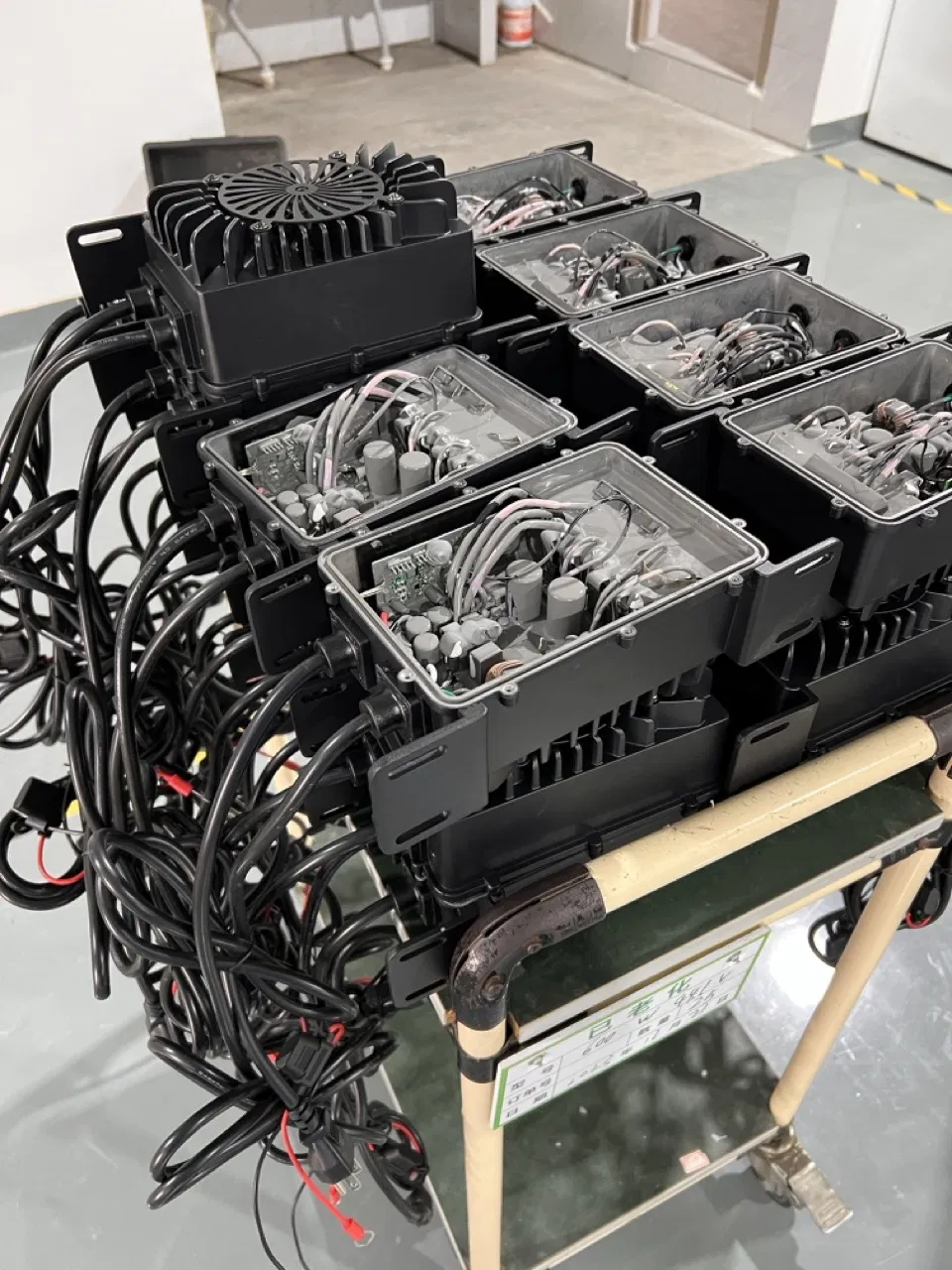

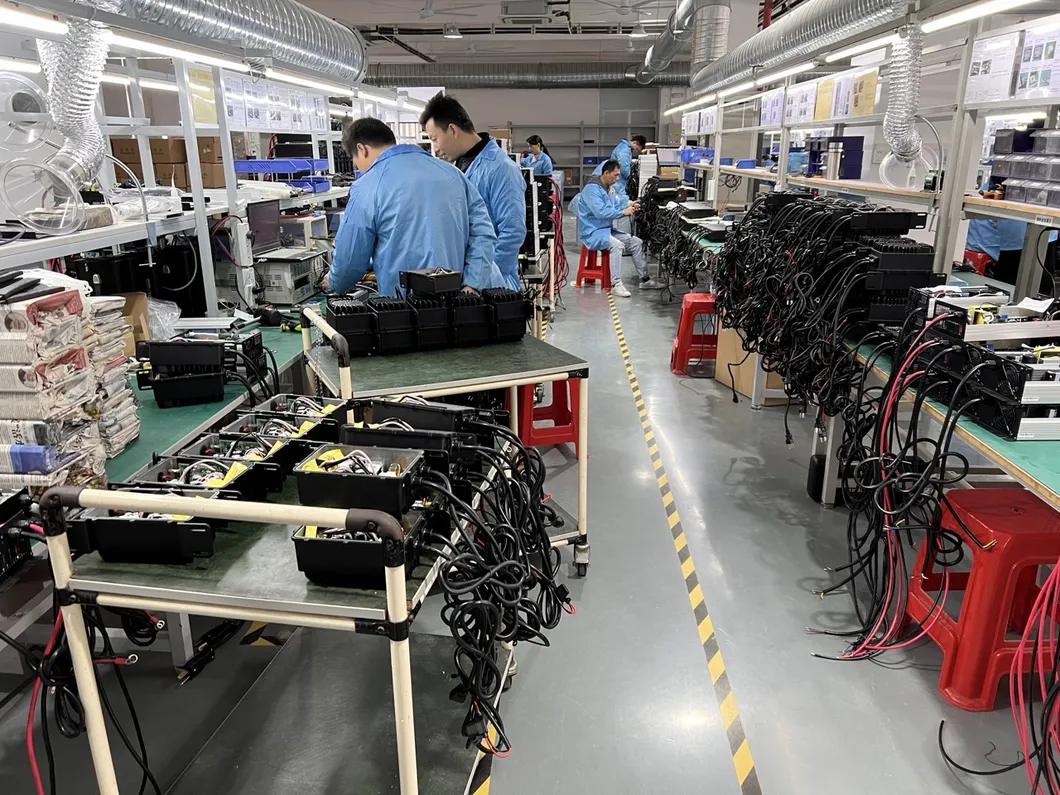

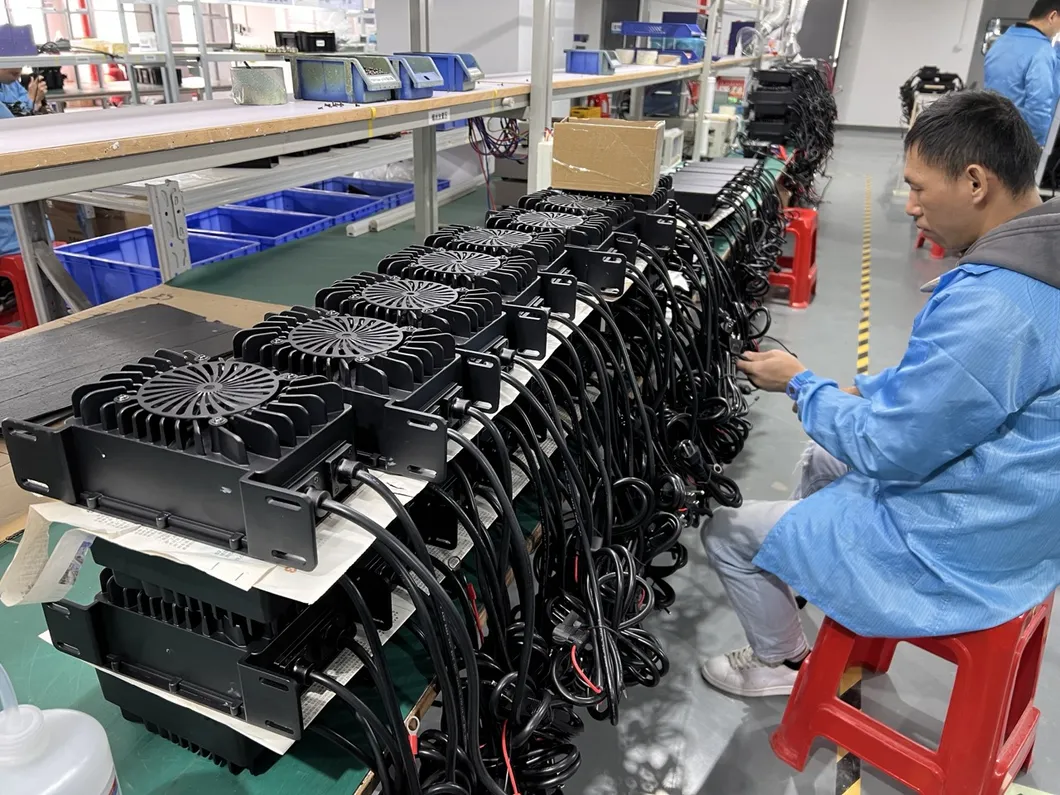

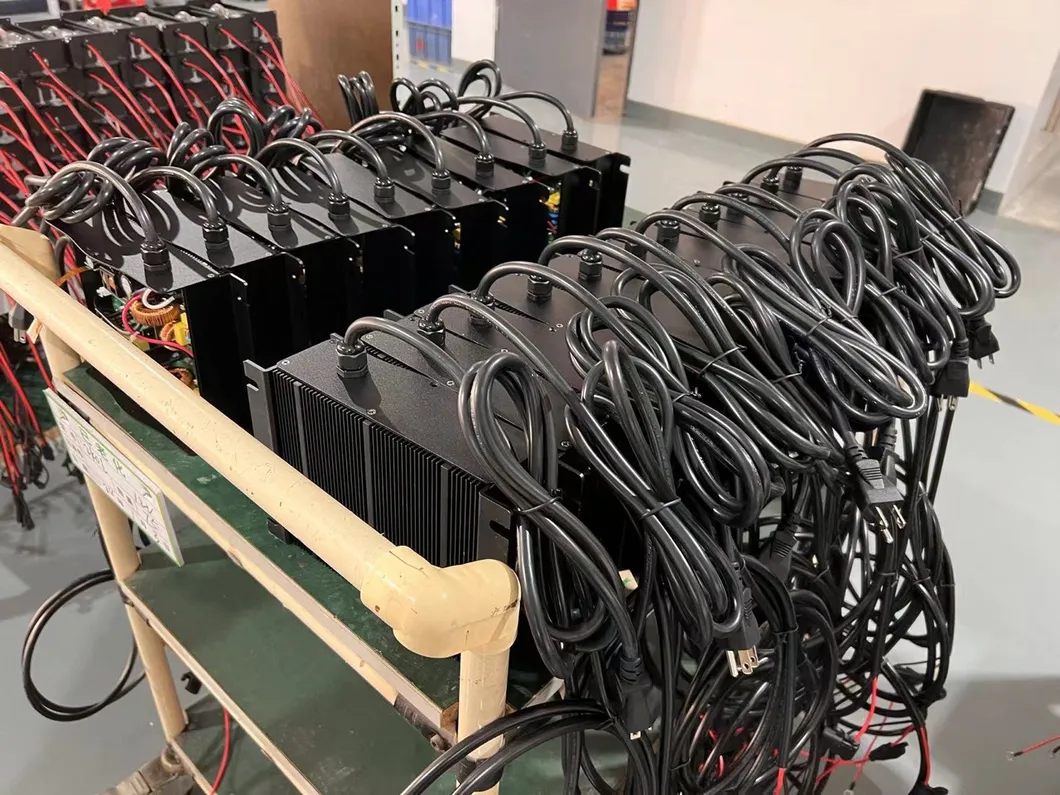

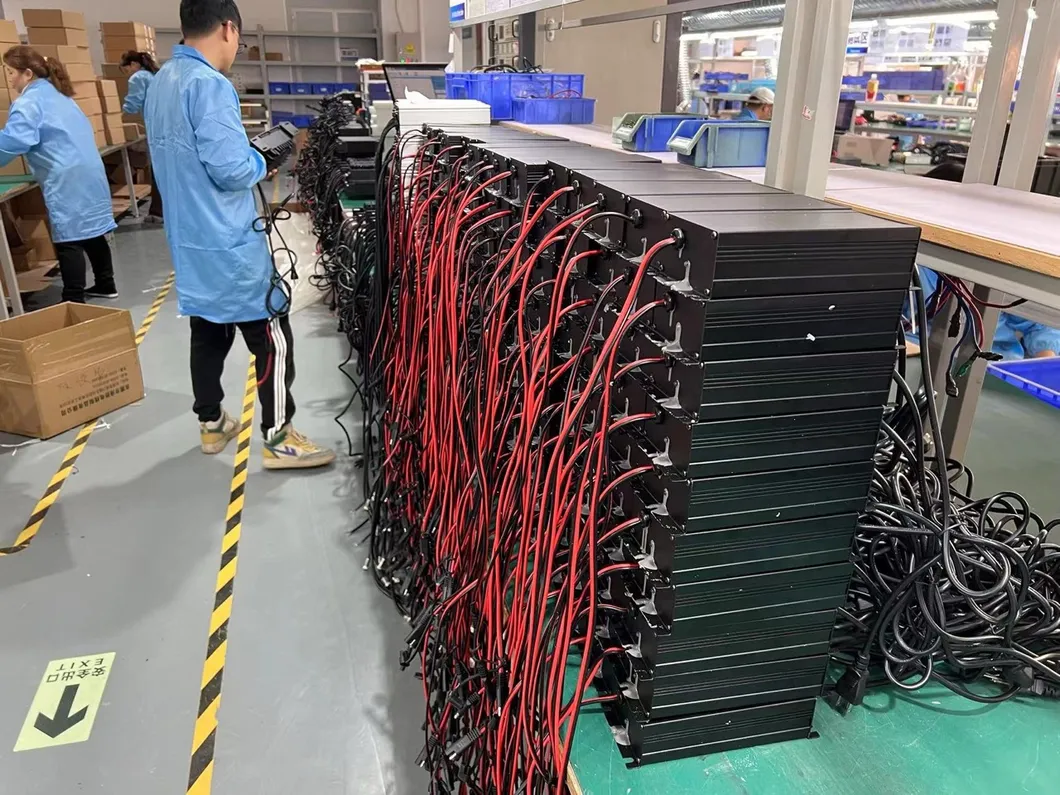

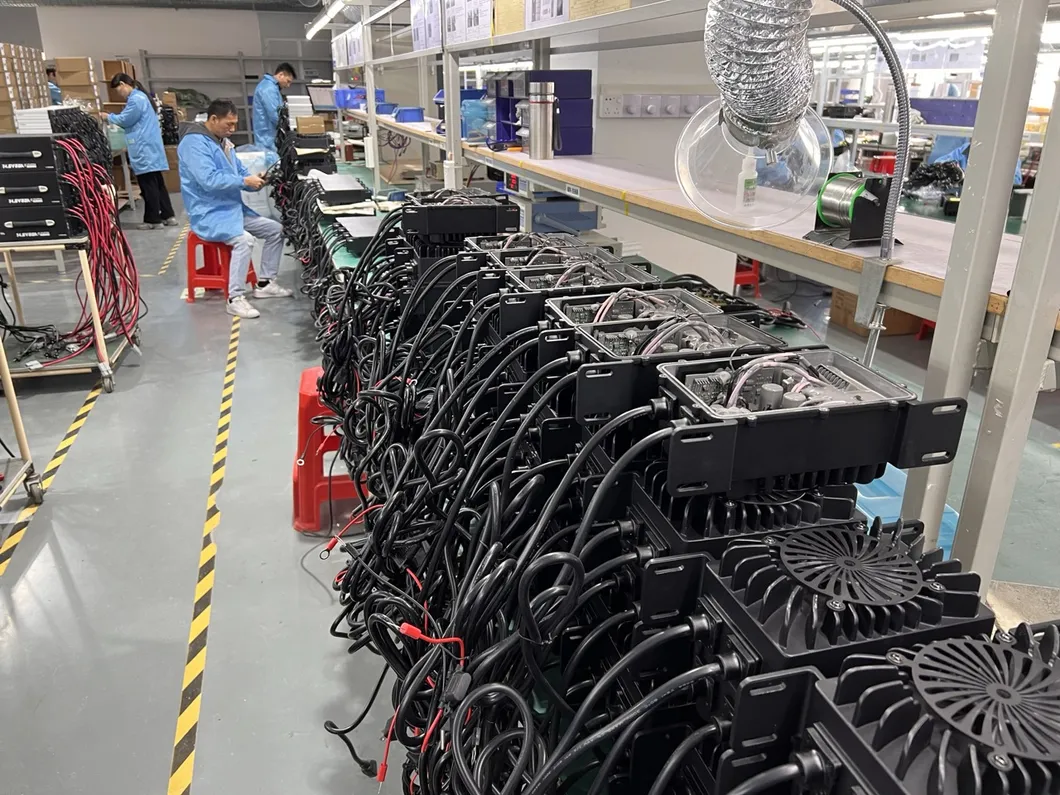

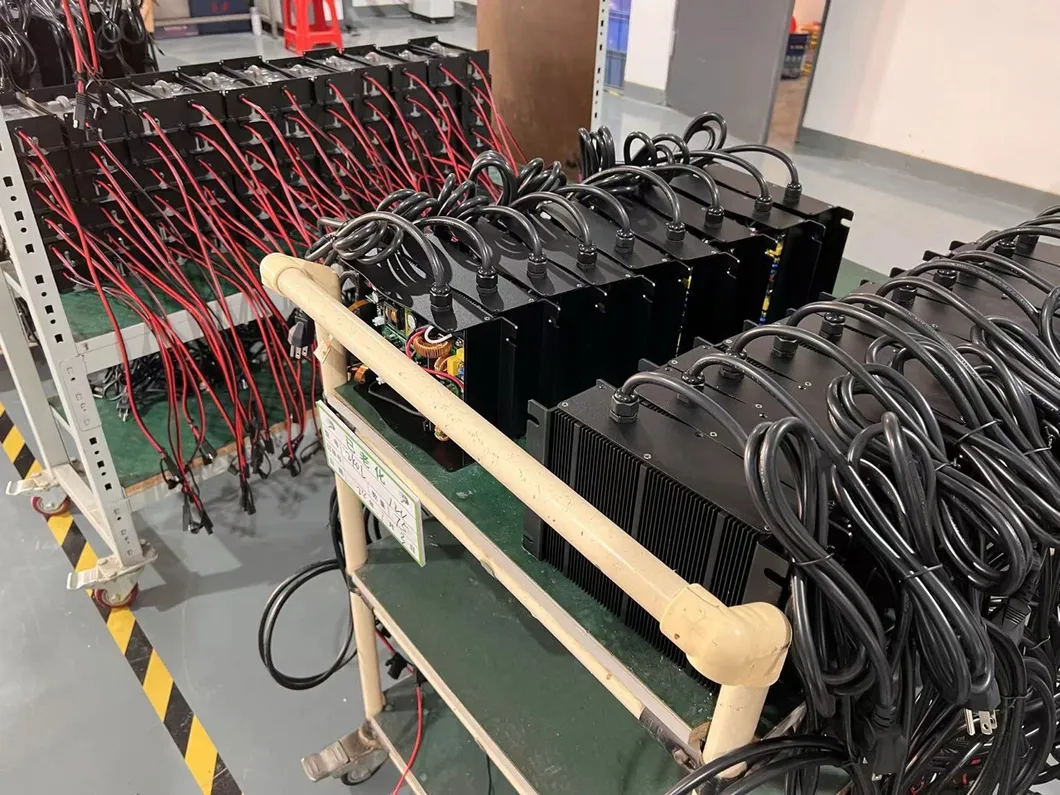

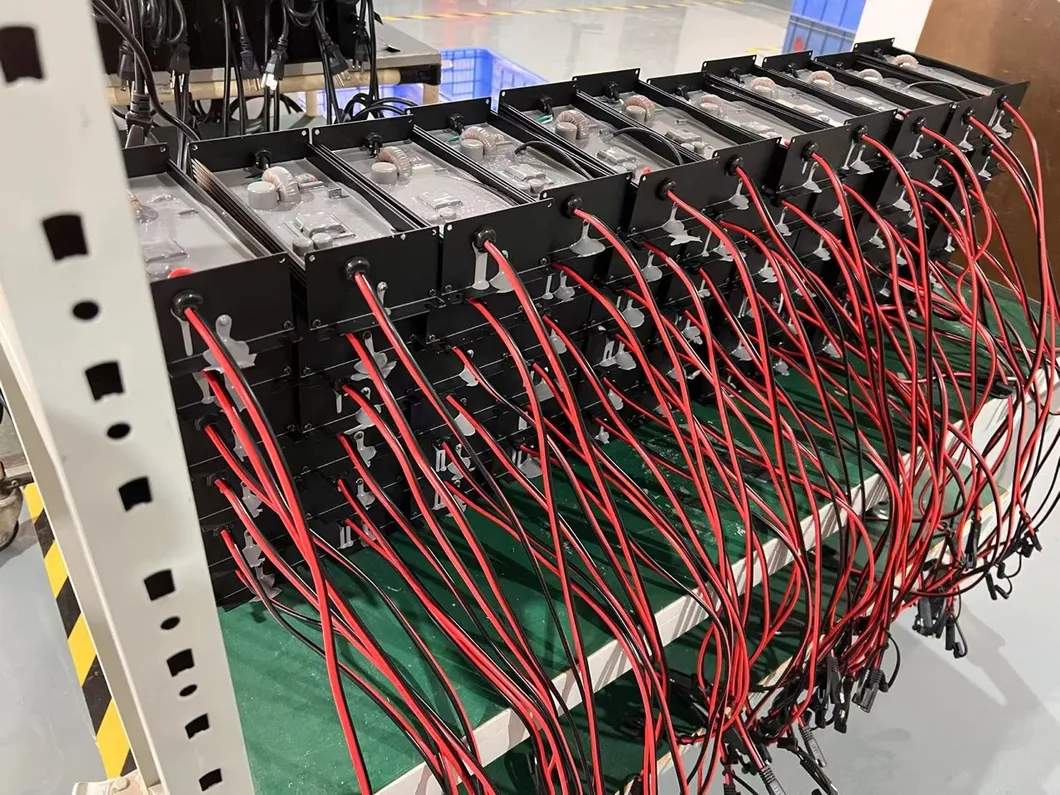

Product Showcase

❓

Frequently Asked Questions

Can this charger handle different battery types?

Yes, it features a selector button (SEL) that allows you to charge LiFePO4 (LPF), NCM lithium batteries, and Lead-Acid batteries (AGM, GEL, SLA).

Is the charger suitable for outdoor use?

Yes, the charger is designed with an IP65/IP66 waterproof rate and anti-vibration features, making it durable for various environments.

What are the charging stages?

It utilizes a 4-step intelligent charging process: Pre-charge (to protect discharged batteries), Constant Current (CC), Constant Voltage (CV), and Floating/Cut-off.

What safety protections are integrated?

The unit includes comprehensive protection against short circuits, over-voltage, over-temperature, and reverse polarity.

Does it support global power standards?

Yes, it features a universal AC input of 110-230Vac (90~264Vdc) and automatically operates according to the connected voltage.

What is the warranty period?

The product comes with a high-quality factory standard 2-year warranty.
