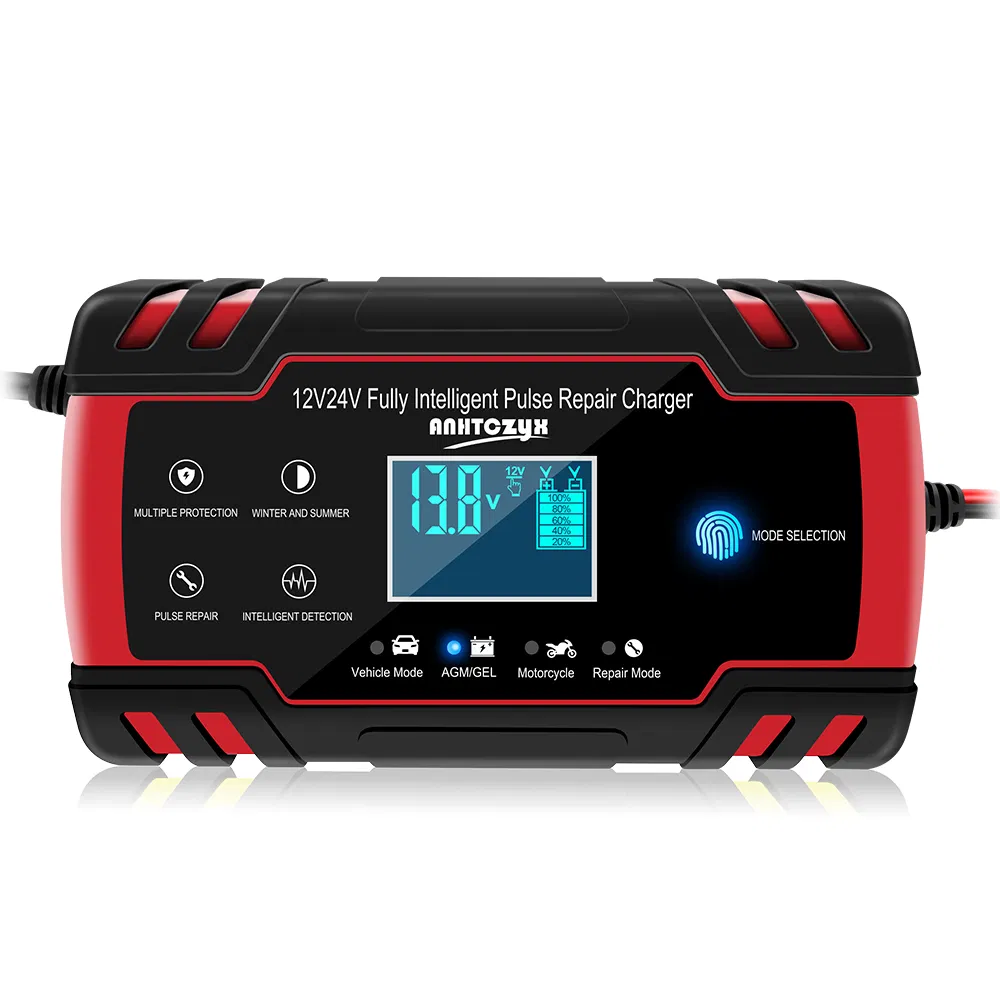

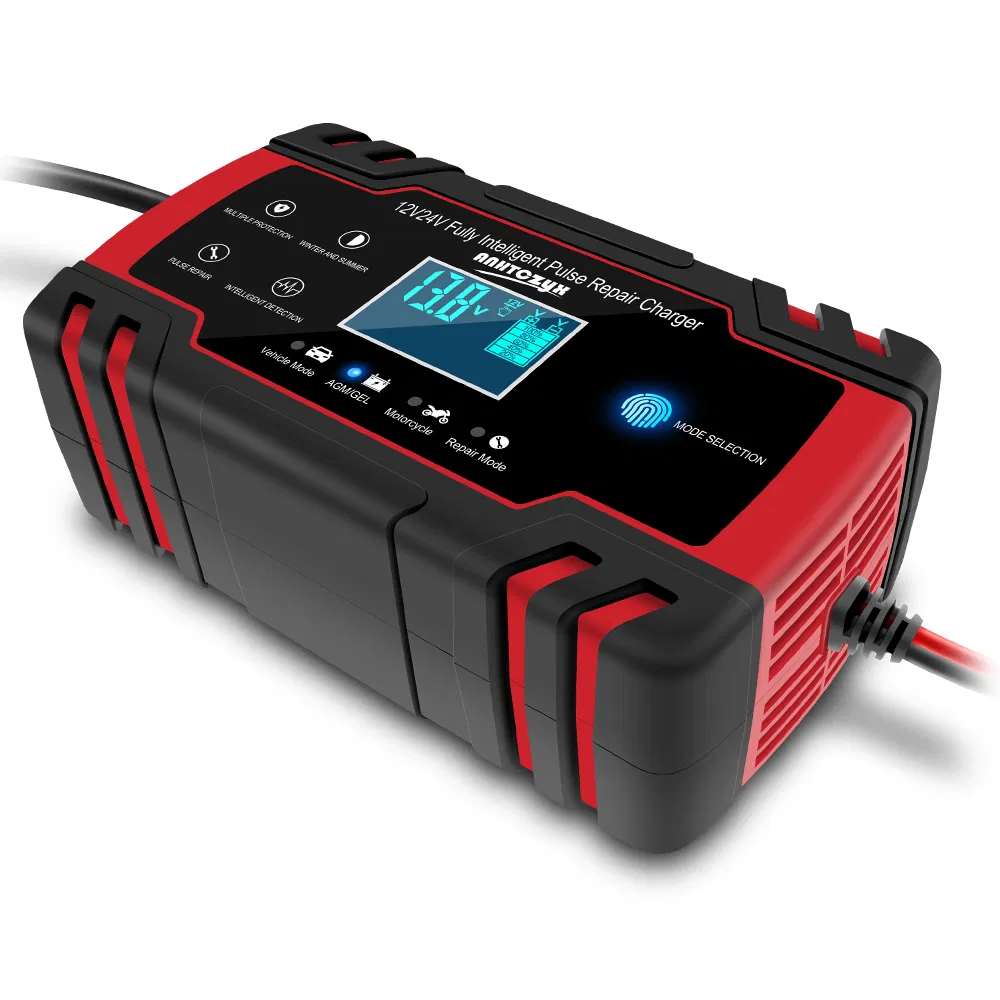

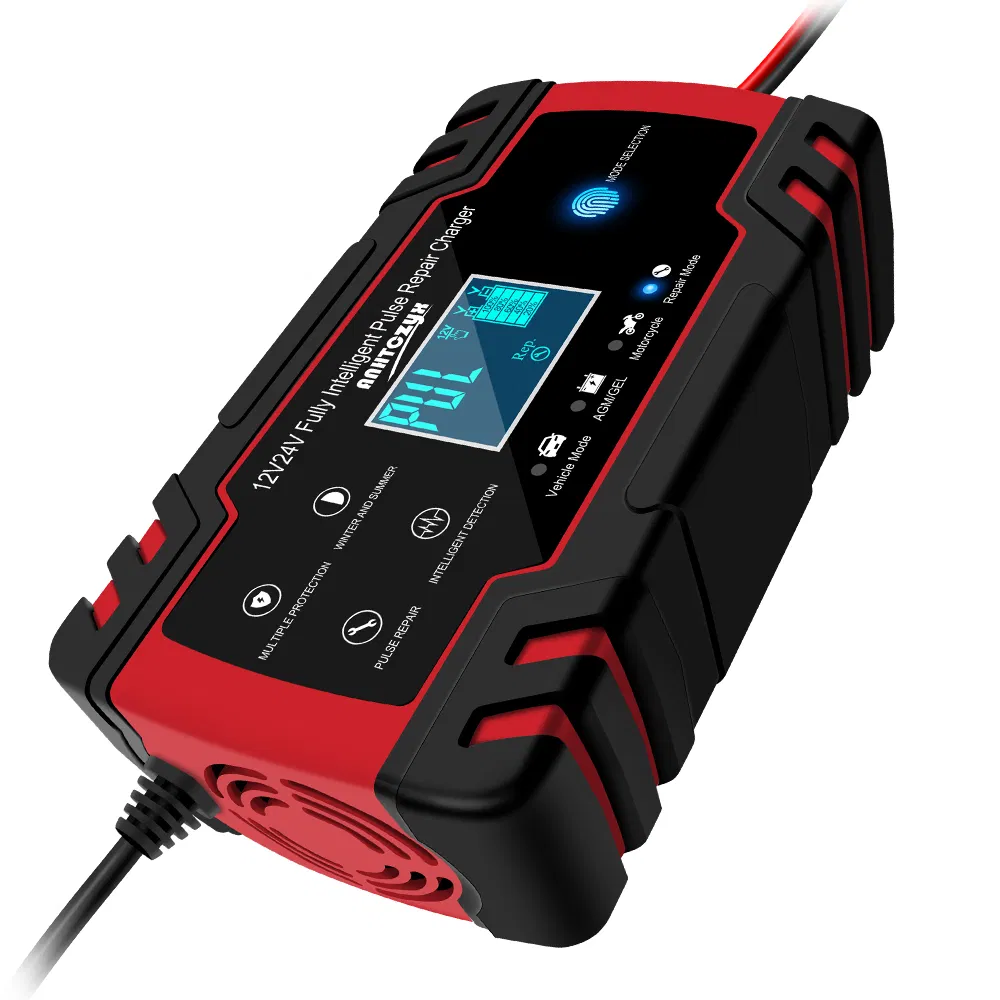

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

📋 Basic Specifications

Model NO.

ZYX-J30

Application

Standard Battery, Car, Motorcycle, Truck, Lead-Acid AGM, Gel

Nominal Voltage

12V / 24V

Charger Style

Pulse Charger

Input Voltage

100-240VAC, 50-60Hz

Power

140W

Output

12V 8A / 24V 4A

Battery Range

2-150Ah

Efficiency

85%

Certification

PSE, RoHS, CE, FCC, UKCA

Material

ABS

Weight

0.632kg

⚡ Product Description

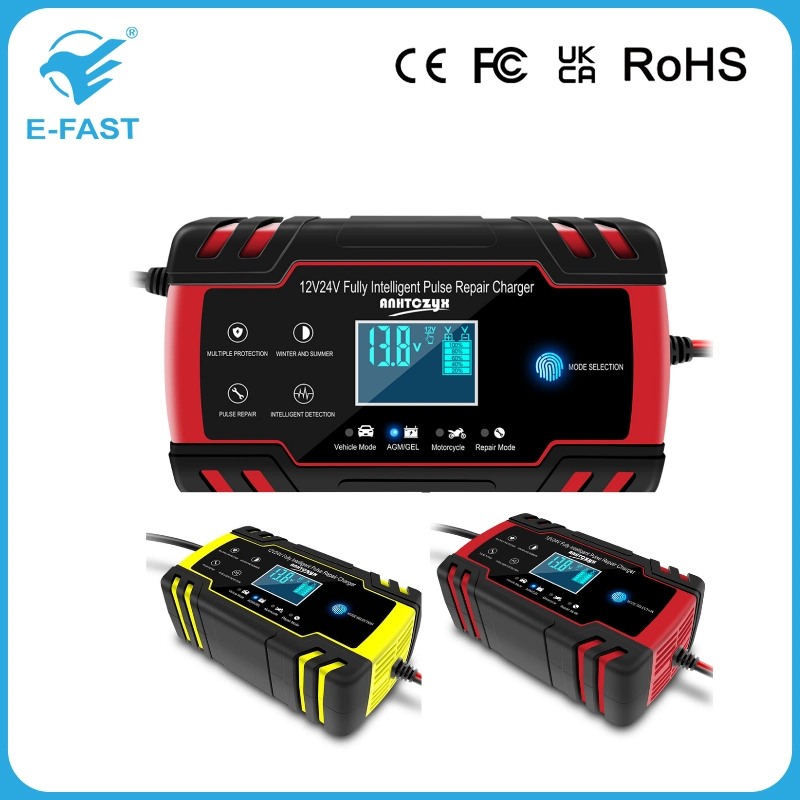

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Brand Name	E-FAST
Model Number	ZYX-J30
Battery Type	12V 24V STD; Lead-acid; AGM; GEL; START STOP Battery
Protection Features	Polarity, Output Short, Overvoltage, Overcurrent, Overheating, Reverse Connection
Socket Type	AU/EU/UK/US/JP/Others

🛠 Main Functions

Output short circuit and anti-reverse connection: Prompt for short circuit or reverse connection via LCD display "ERO" without damaging the unit.
Battery power detection: Displays voltage and ambient temperature, plus power percentage without AC input connected.
Winter and Summer mode: Automatically adjusts charging state based on ambient temperature to ensure safety and battery life.
Over-temperature protection: Starts protection program if temperature is too high and restores once normalized.
Overcharge protection: Enhances battery life by avoiding overcharging (Default max time 20H).
Charging voltage self-test: Automatically enters floating charge or compensation charge after testing.

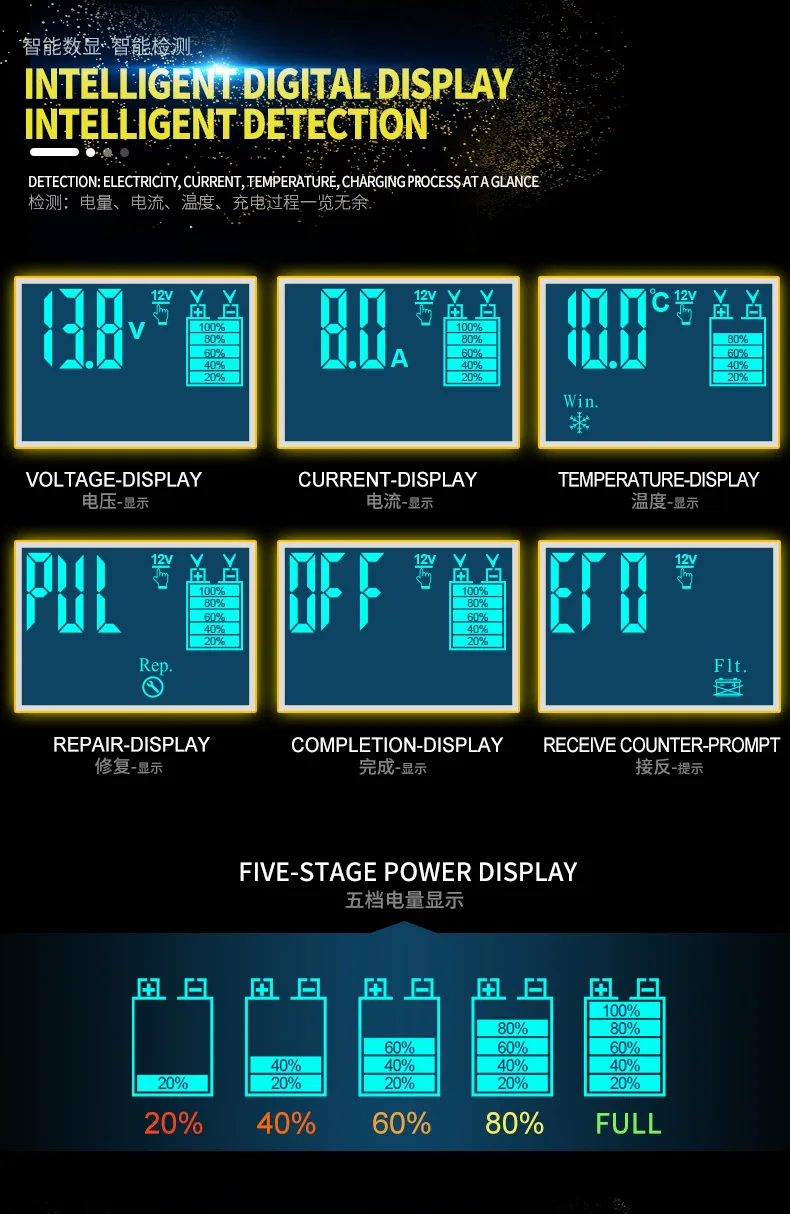

LCD Display States: Clearly shows "FUL", "OFF", "ERO", "Rep" and real-time parameters.

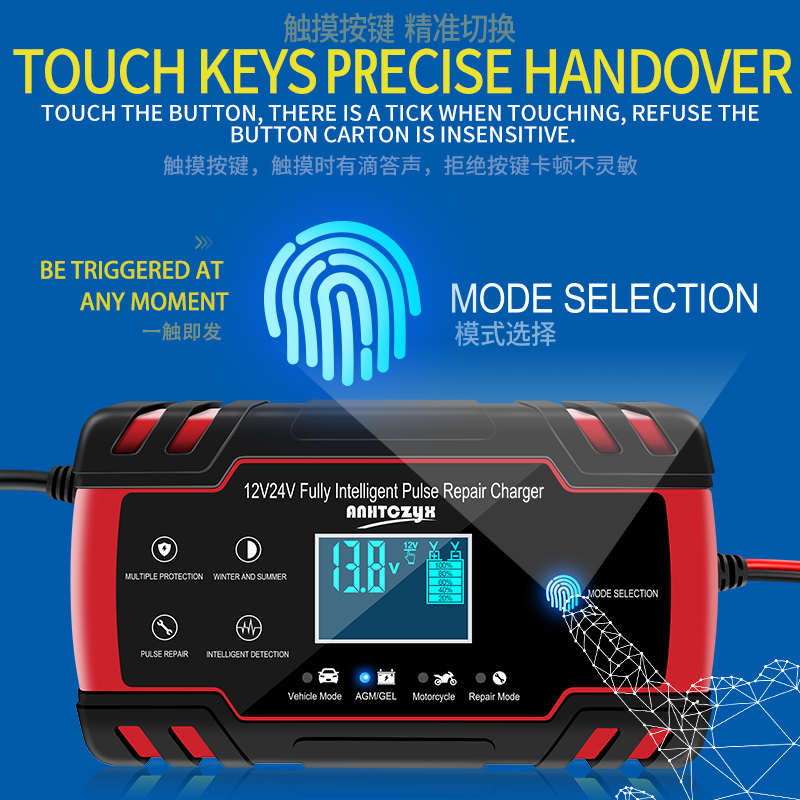

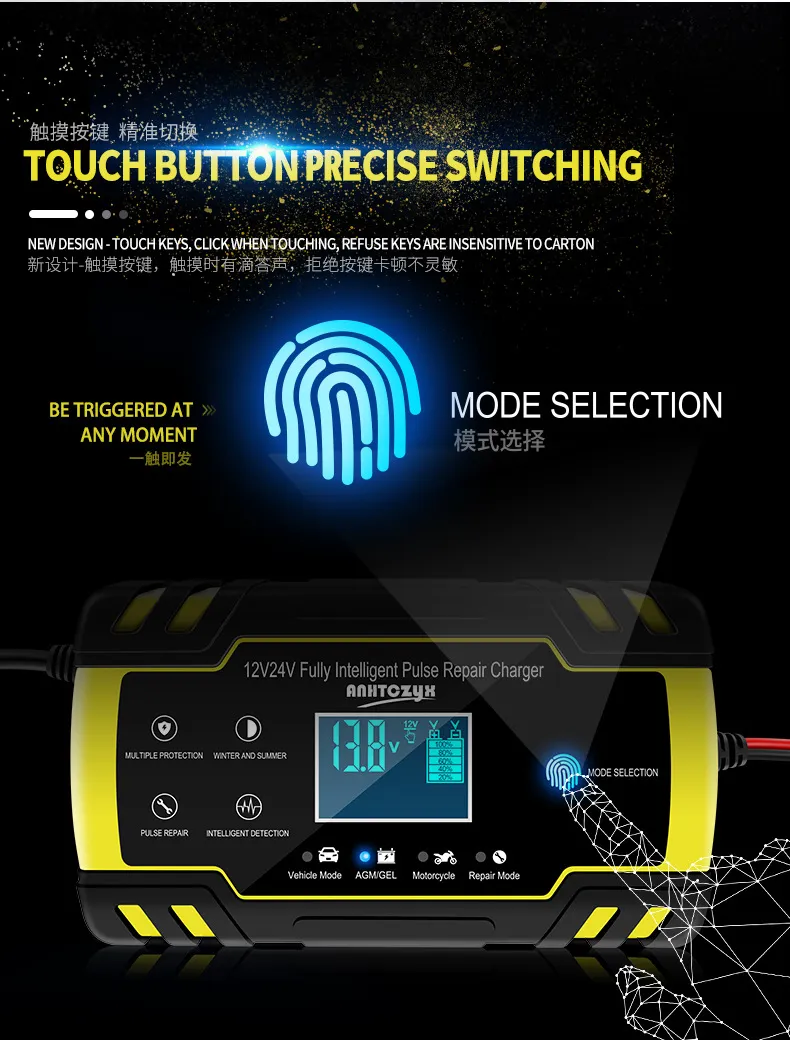

🎯 Function Mode Selection

1. Car Battery Mode
Intelligent control voltage (Winter: 15.5V, Summer: 14.6V). Max current: 8A.

2. AGM Battery Mode
Optimized for AGM batteries. Charging voltage: 13.5V. Max current: 8A.

3. Motorcycle Mode
Max current: 1.5A. Suitable for 2-15Ah batteries.

4. Repair Mode
Positive pulse voltage repair mode (14.9V). Max time: 20H.

🔌 Charging Steps

1

Detect battery state by connecting alligator clips (Red+, Black-) without AC power connected.

2

Plug the charger into an AC power source.

3

Select the desired mode to begin charging.

4

When "FUL" or "End" is displayed, disconnect the AC input and then remove the clips.

📸 Detailed Photos

📦 Packaging & Shipping

Package Specification: 20/30pcs per Carton.
Carton Dimensions: 48.5*35*27.5cm / 48*41.5*34.5cm.
Color Box Size: 23*13*6.5cm.
Delivery Detail: Samples within 7 work days, 15-25 days for bulk orders.

❓ Frequently Asked Questions

Q1: Can I get a sample?

A: Yes, we provide samples. Stock samples may be provided for evaluation, and sample charges are typically returned after a formal order is signed.

Q2: Are you a factory or trading company?

A: We are a professional factory with over 10 years of experience in producing rechargeable batteries and battery chargers.

Q3: Do you accept OEM and ODM services?

A: Yes, we fully support OEM and ODM customization, including product appearance, colors, and logos.

Q4: What certificates do your products have?

A: Most of our products are certified with CE, FCC, RoHS, and PSE, ensuring high quality and safety standards.

Q5: Why is your price competitive?

A: As a direct manufacturer, we ship products directly from the factory, eliminating middleman costs.

Q6: Do you have an R&D team?

A: Yes, we have dedicated R&D and technical teams that regularly update products and solve technical problems for our clients.
