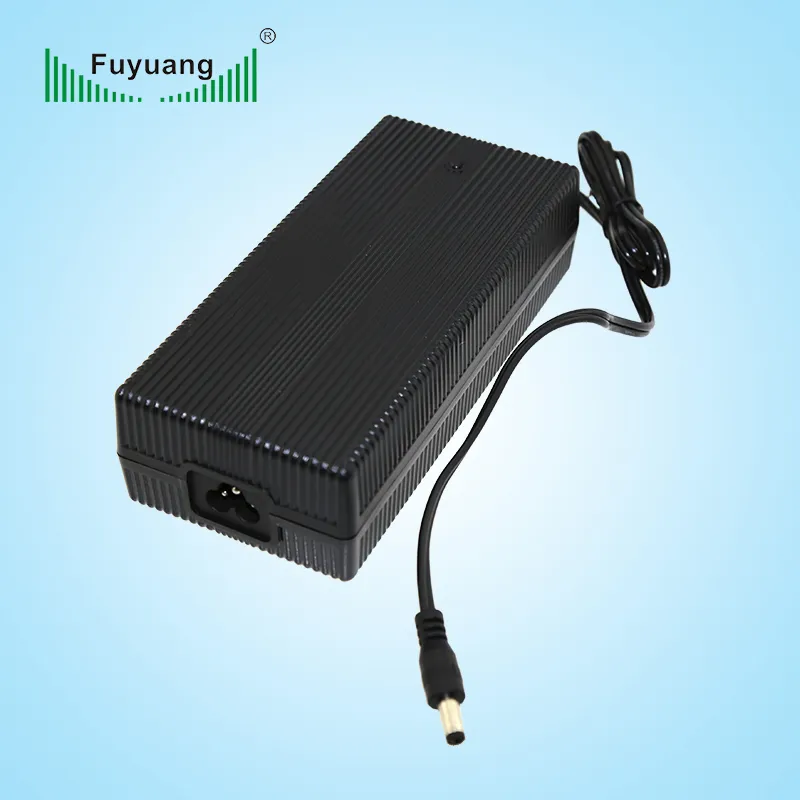

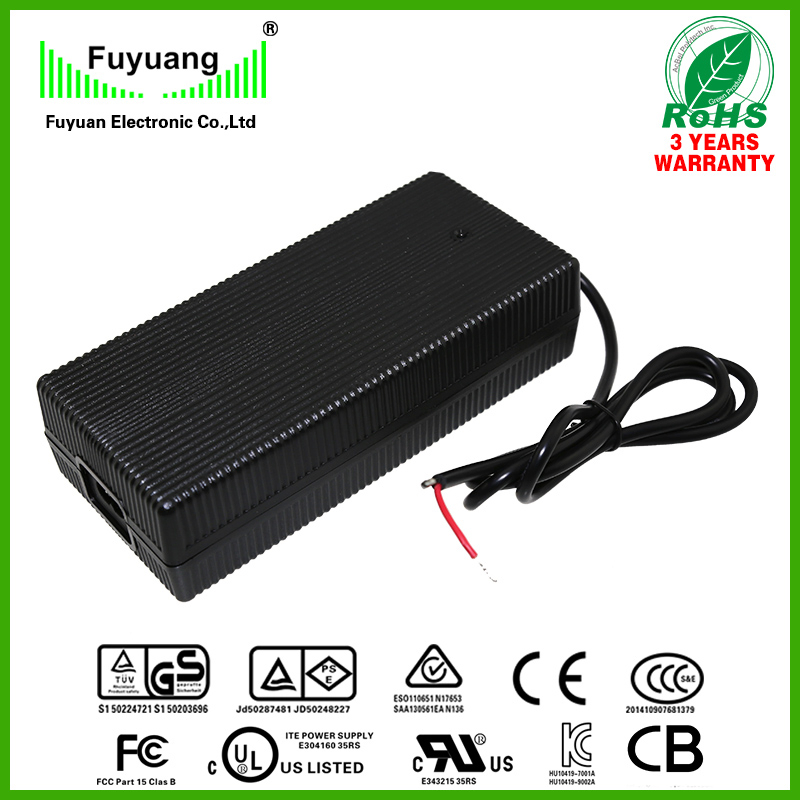

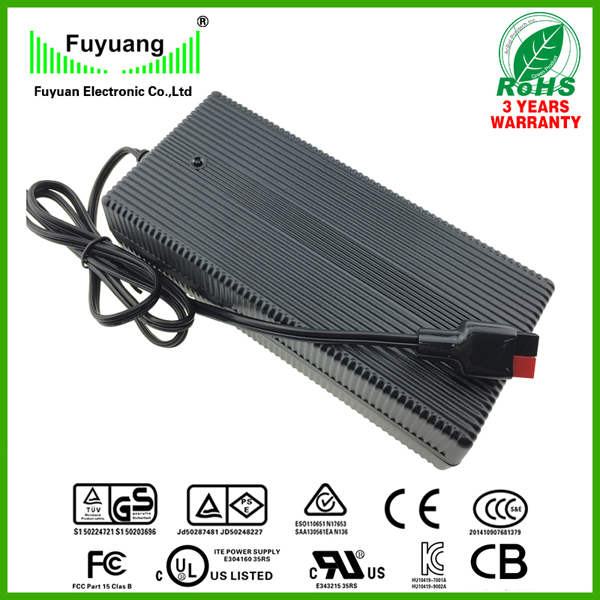

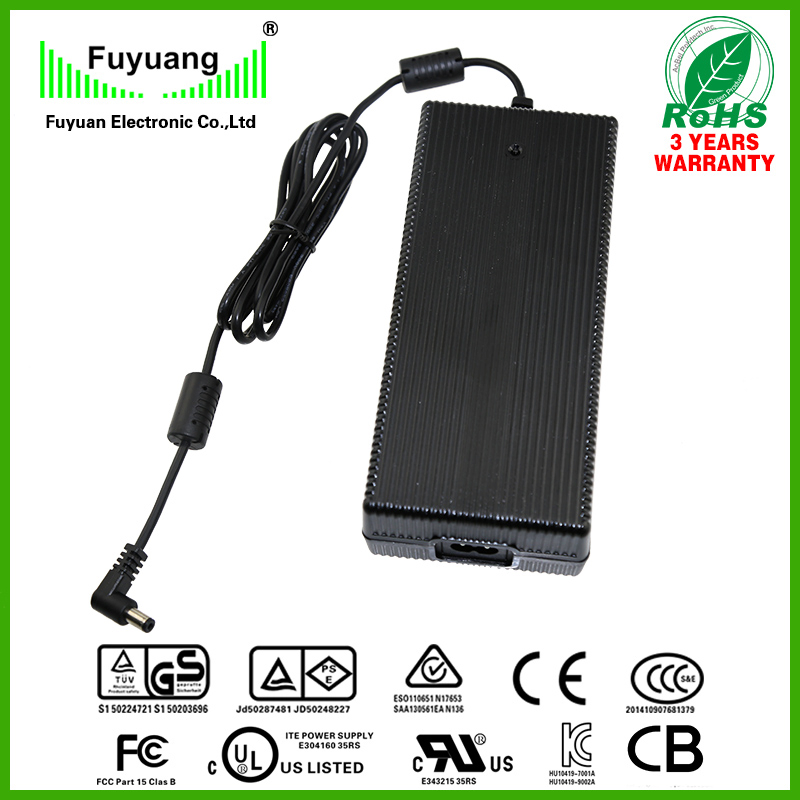

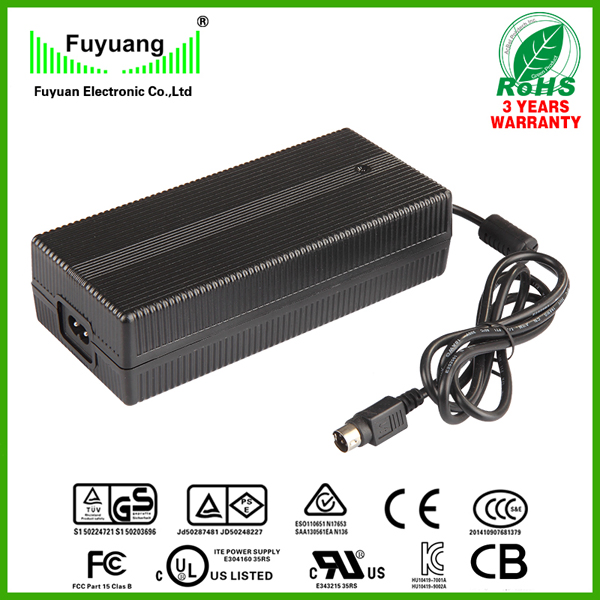

Desktop 48V 3.5A LiFePO4 Battery Charger with RoHS

1 / 5

Desktop 48V 3.5A LiFePO4 Battery Charger with RoHS

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Product Specifications

Model NO.

FY4803500

Application

Laptop, Electric Car, Motorcycle

Nominal Voltage

48V

Max Charging Current

3.5A

Battery Type

LiFePO4, Lithium, Lead Acid

Efficiency

>88%

Certification

UL, TUV, GS, CE, CB, PSE, SAA, KC, RoHS

Socket Type

USA/Canada/EU/UK

Warranty

3 Years

Protections

Short Circuit, Overload, Overvoltage

Dimensions

178*90*35mm

Weight

0.78kgs

💡 Product Description & Advantages

High-quality Desktop 48V 3.5A LiFePO4 battery charger designed for versatile applications including E-bikes, Electric Golf Carts, Power Tools, and Medical Instruments.

Global Safety Certificates: Fully compliant with UL, GS, CE, CB, FCC, PSE, SAA, and RCM standards.
Superior Quality Control: ISO9001 certified since 2007 with 100% inspection on voltage, load, and short circuits.
Extended Warranty: Industry-leading three-year warranty for peace of mind.
Reliable Performance: Inrush current limited to 15A for cold starts with built-in OCP and OVP protections.
In-house Components: Key parts like transformers and DC cords are produced in-house to ensure consistency.

📋 Technical Parameters

Item	Parameter Details
AC Input	100-240V, 50/60HZ
Max Charging Voltage	48V
Power Factor	0.89
HIPOT Testing	3000-3700V
Operating Temp	-29ºC ~ +45.5ºC
Storage Temp	-40ºC ~ +75ºC
MTBF	30,000 hours at 25ºC full load
Energy Efficiency	Level VI (DOE or COC)

📷 Product Gallery

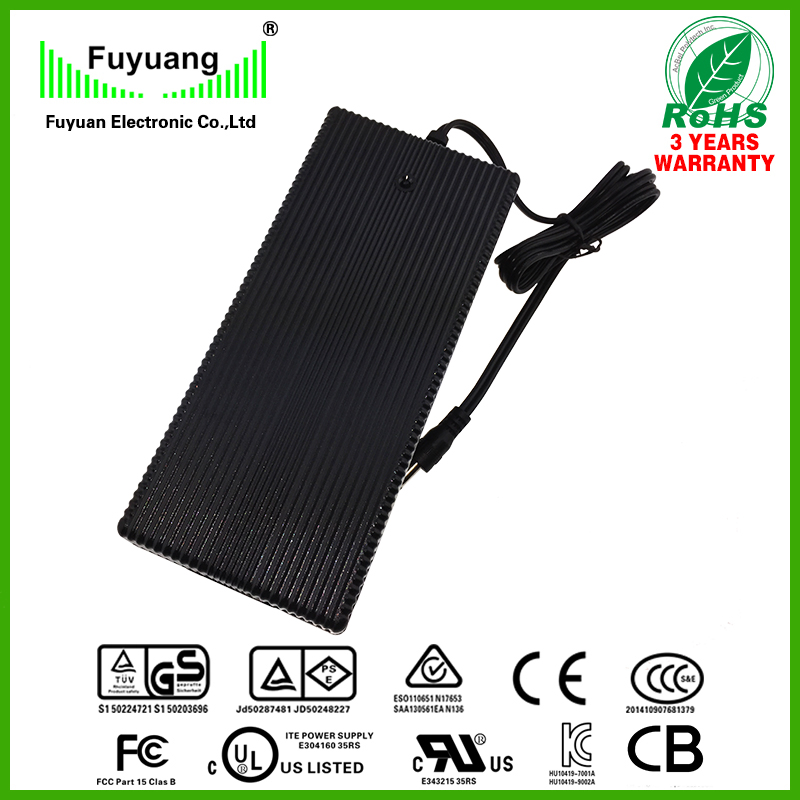

Desktop 48V 3.5A LiFePO4 Battery Charger

🏭 Manufacturing Excellence

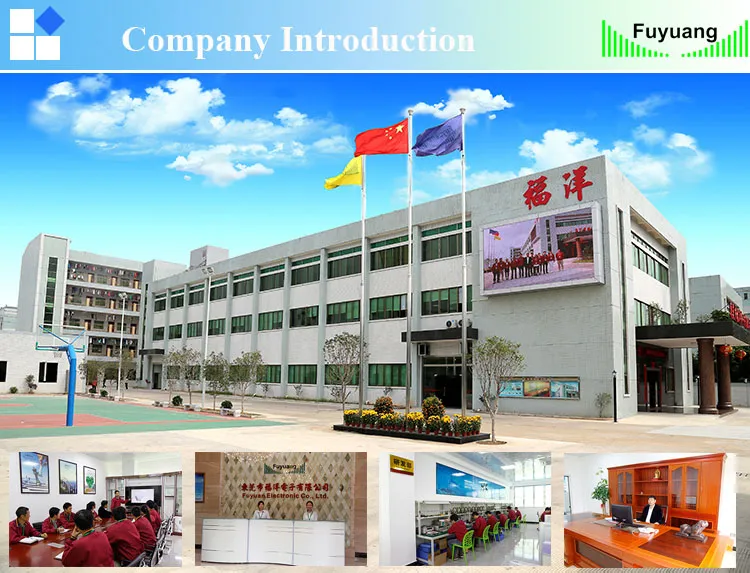

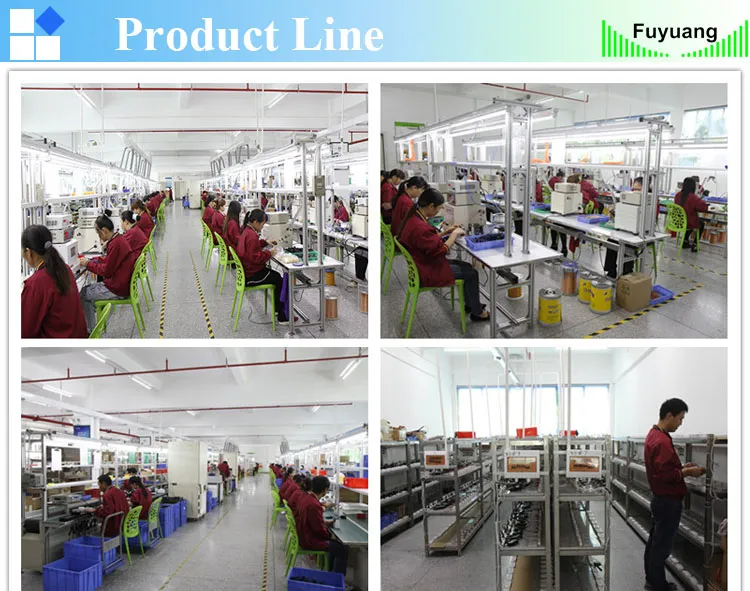

Equipped with a 6,800sqm self-built factory and a dedicated team of 260 employees, including expert R&D and Quality departments.

📏 Battery Charger Range Guide

LiFePO4 Battery Charging Range:

Cells (Qty)	4	8	12	16
Max Voltage (V)	14.6	29.2	43.8	58.4
Max Current (A)	≤10A	≤8.5A	≤5A	≤3.5A

❓ Frequently Asked Questions

What is the difference between MTBF and Life Cycle?

MTBF (Mean Time Between Failures) is a statistical prediction of reliability based on component counts. Life Cycle is an estimate of the power supply's actual lifespan based on the temperature rise of electrolytic capacitors.

Why is the input voltage range on the spec sheet different from the label?

Spec sheets show the absolute operating range (e.g., 88~264 VAC) for flexibility. Labels show the standard range (100V~240VAC) to meet strict safety verification standards and ensure correct user input.

How do I choose the right power supply for battery charging?

We recommend choosing a model where the Over Load Protection (OLP) mode is constant current limiting. This ensures a steady current even when protection circuits are triggered during high demand.

Is this charger compatible with different global plug types?

Yes, our desktop chargers support various socket types including USA, Canada, EU, and UK standards to ensure global compatibility.

What safety protections are built into the 48V 3.5A charger?

The charger includes integrated protection against short circuits, over-current, and over-voltage to ensure safe operation for both the device and the battery.

Does environment temperature affect the charger's performance?

Yes, in high-temperature environments, we suggest derating the output power. The charger is rated for optimal performance between -29ºC and +45.5ºC.
