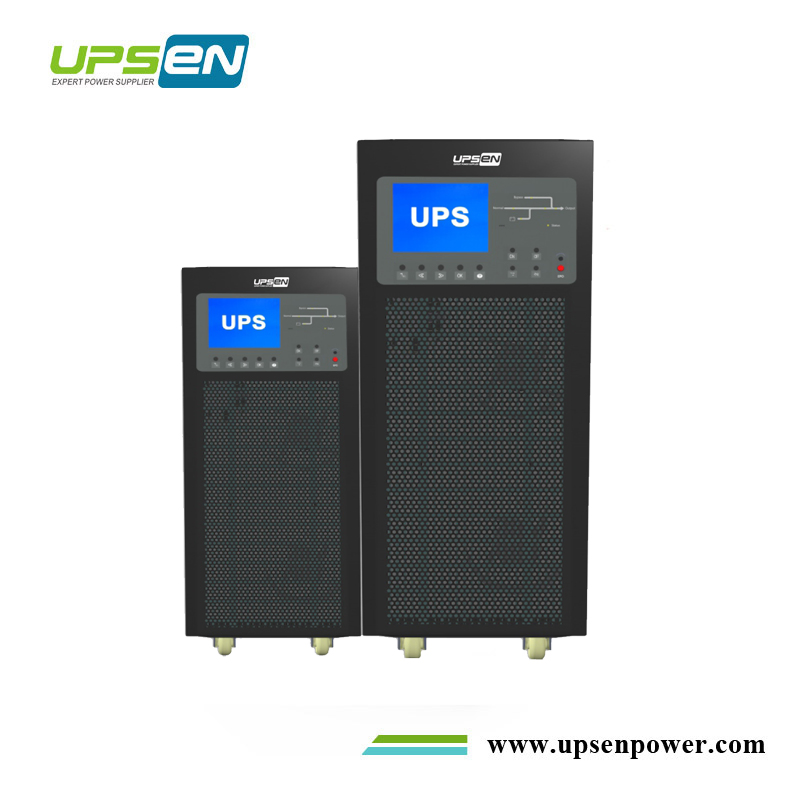

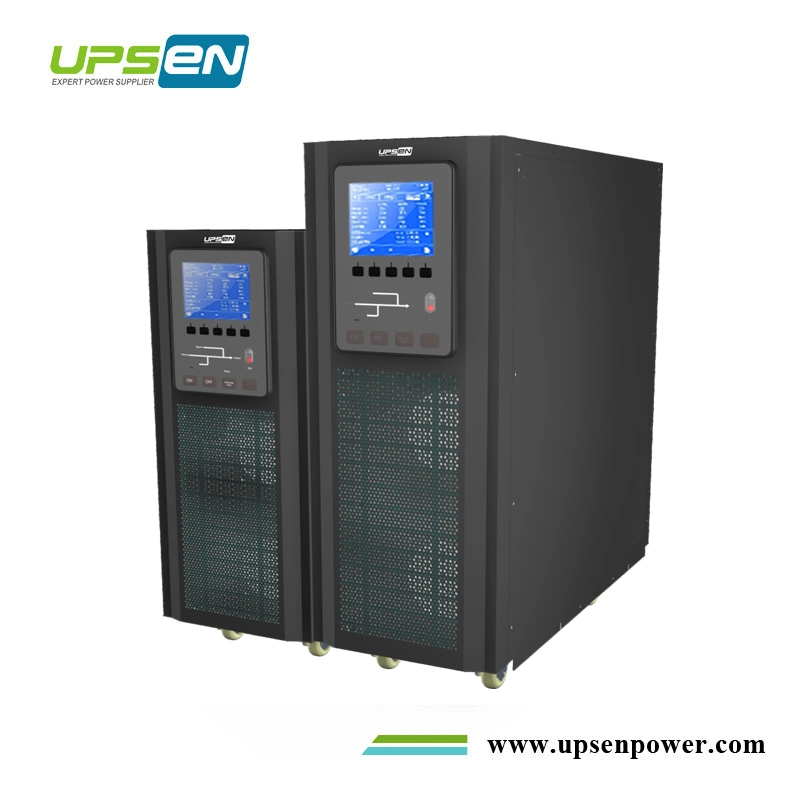

Big Charger Ability 3pH in/3pH out 20K - 120kVA High Frequency Online UPS

1 / 2

Big Charger Ability 3pH in/3pH out 20K - 120kVA High Frequency Online UPS

Customization:	Available
Phase:	Three Phase
Type:	On-line

Send Inquiry

Product Description

Basic Specifications

Model NO.

Safe Star Series 10K - 120Kva

Protection

Short Circuit

Application

Communication

Classification

Lighting/Power

Standby Time

Standard Machine

Output Capacity

Large Type

Noise (1m)

58-68dB

Protection Level

IP20

HS Code

8504402000

Production Capacity

50000PCS/Month

Low Frequency Online UPS - LF33 Series

LF33 10K-120K (3Ph in/3Ph out) High Stability Power Solution

Advanced 6th generation DSP and full digital control technologies for superior system stability.

Output power factor of 0.9, providing 10% more carrying capacity than conventional UPS.

Distributed active parallel technology supporting up to 6 units without a centralized bypass cabinet.

6-inch extra-large LCD interface supporting 12 languages (English, Russian, Spanish, French, etc.).

Extra wide input voltage and frequency range to adapt to severe grid environments.

Intelligent battery management to automatically maintain and prolong battery lifespan.

Layered independently-sealed ventilation channels and redundant fans for efficient heat dissipation.

Strong capability to withstand output overload and short circuits under extreme conditions.

Main Applications:
Optimized for large IDC rooms, bank/securities settlement centers, communication network management centers, semiconductor production lines, and large-scale automation control systems. Also suitable for sports venues, conference rooms, theaters, and highway/railway lighting systems.

Technical Specifications

Model

LF33 Series

Rated Capacity

10KVA/9KW

20KVA/18KW

30KVA/27KW

40KVA/36KW

60KVA/54KW

80KVA/72KW

100KVA/90KW

120KVA/108KW

Input Parameters

Rated Input Voltage

380/400/415VAC 3-phase 4-wire

Input Voltage Range

±25%

Input Power Factor

>0.8

Output Parameters

Voltage Stability

±1% (Steady), ±3% (Transient)

Output Power Factor

0.9

Inverter Overload

110% for 1 hour, 125% for 10 minutes, 150% for 60s

System Efficiency

Up to 94% (Inverter efficiency up to 98%)

Physical Parameters

Protection Level

IP20

Height (mm)

1900

1950

Product Gallery

Frequently Asked Questions

Q1: What is the output power factor of the LF33 series UPS?

The LF33 series features a high output power factor of 0.9, which allows it to handle 10% more load than standard UPS units.

Q2: How many UPS units can be connected in parallel?

The advanced distributed active parallel technology allows for the parallel operation of up to 6 units without requiring a centralized bypass cabinet.

Q3: Does the system support multiple languages?

Yes, the 6-inch large LCD display supports 12 different languages including English, Spanish, Russian, French, and Chinese.

Q4: What are the primary protection features of this UPS?

The system includes robust protection against short circuits, overloads, and extreme power grid fluctuations, alongside an IP20 protection level.

Q5: Is the battery management intelligent?

Yes, it features an intelligent battery management system that automatically maintains the battery to optimize performance and significantly prolong its service life.

Q6: What is the maximum efficiency of the inverter?

The system efficiency reaches up to 94%, with the inverter itself achieving an efficiency of up to 98%.
