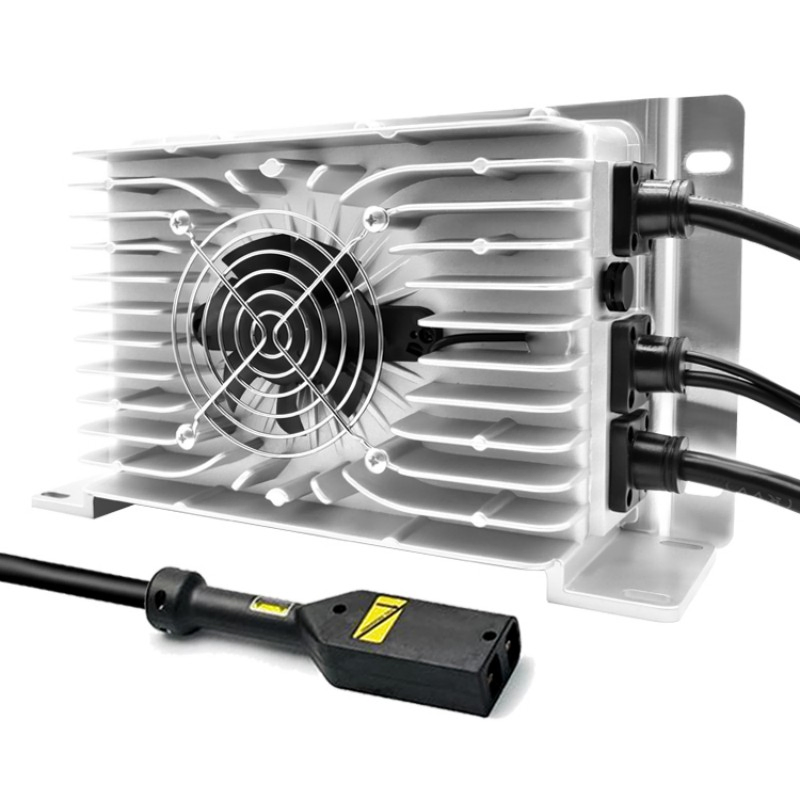

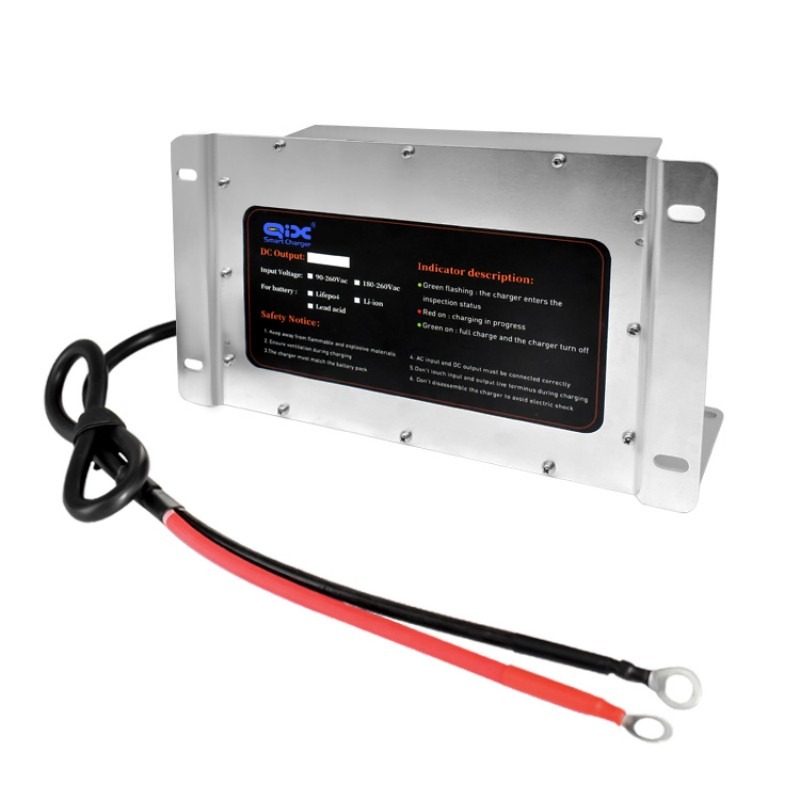

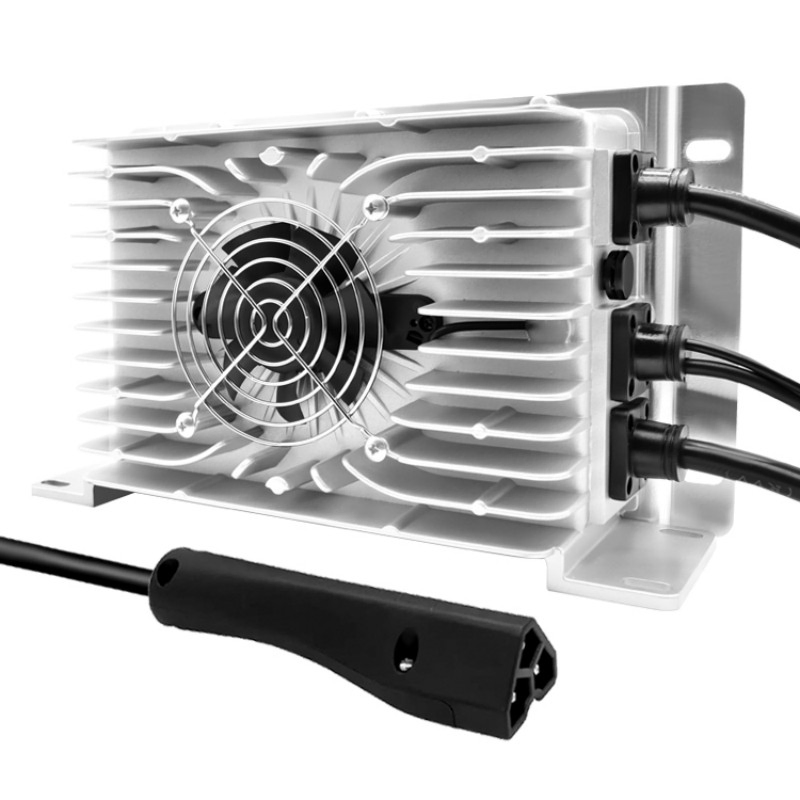

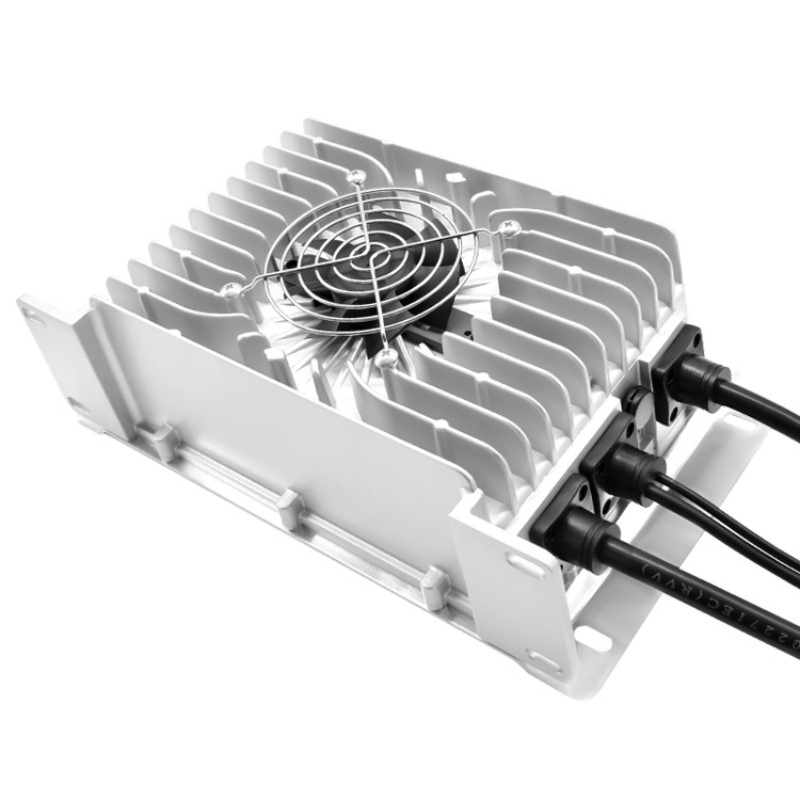

Efficient Waterproof Battery Charger for 24V Marine and Automotive

1 / 5

Efficient Waterproof Battery Charger for 24V Marine and Automotive

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

QX2000

Nominal Voltage

12V/24V/36V/48V/60V/72V

Compatible Battery

Lithium / Li-ion / LiFePO4 / Lead Acid

Output Power

2000W

IP Rating

IP67 Waterproof

Efficiency

93%

Material

Aluminum Alloy

Warranty

24 Months

📝

Product Description

Intelligent Battery Chargers are specifically engineered for heavy-duty applications including electric cars, forklifts, sightseeing carts, golf carts, and electric patrol vehicles. This smart charging solution ensures optimal battery health and longevity.

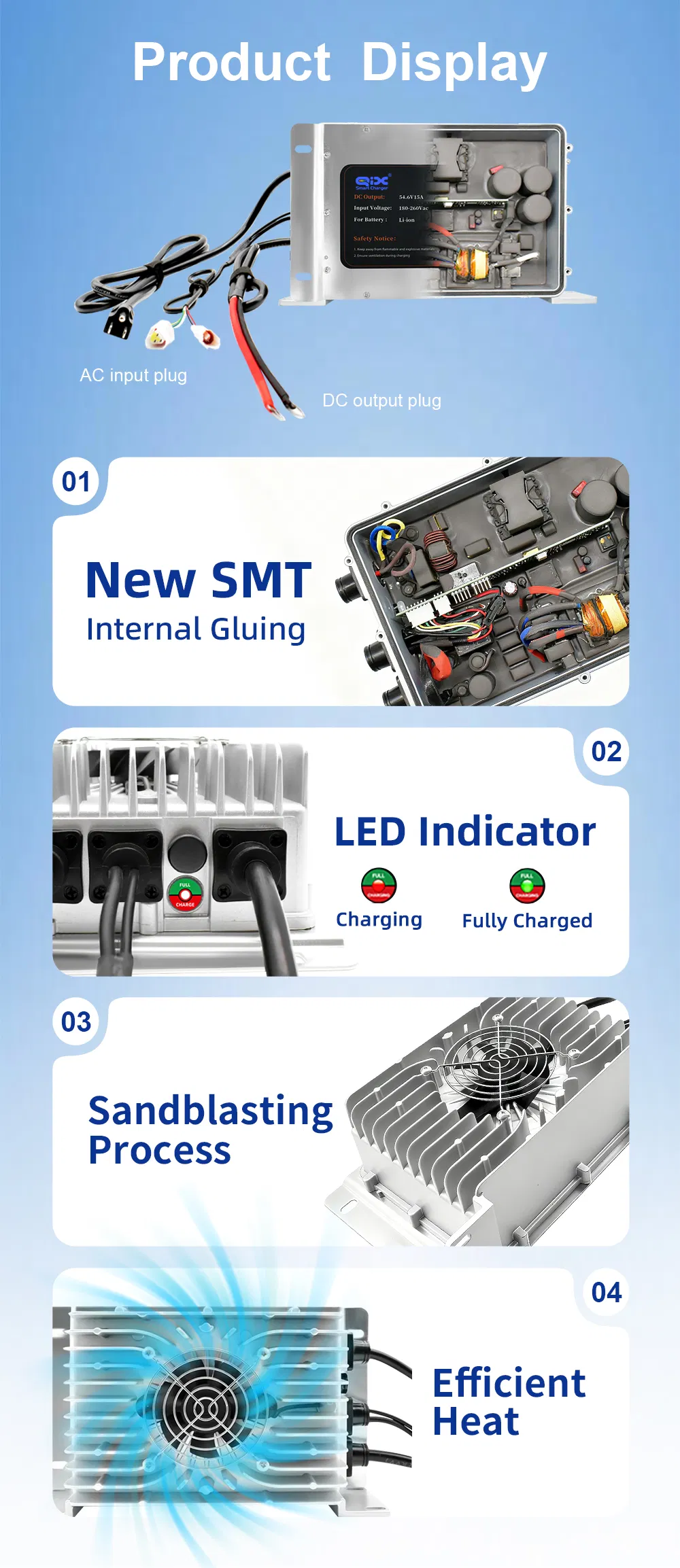

💡 Key Features:

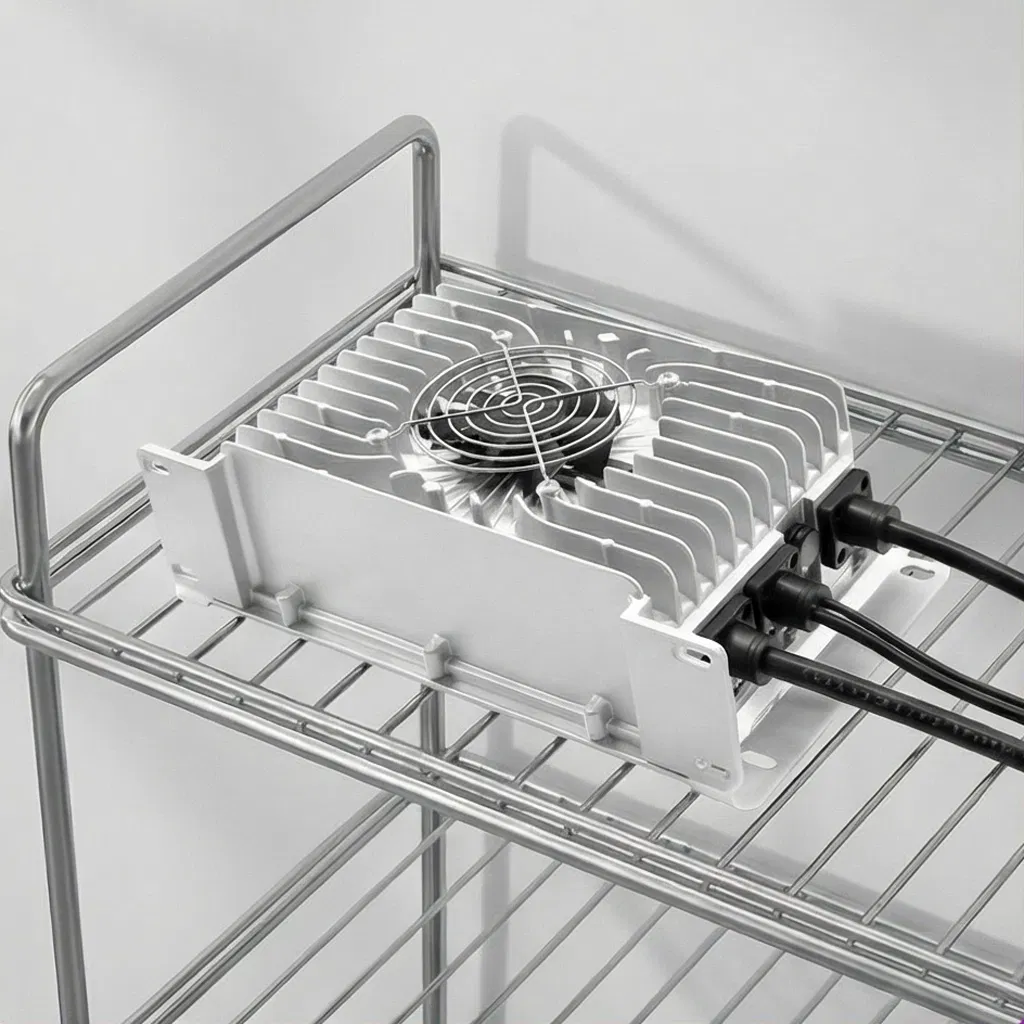

• Full Aluminum Shell: Enhanced heat dissipation for long-term stable operation.
• Smart Cooling: Intelligent temperature-controlled fan system.
• High Protection: IP67 waterproof rating, splash-proof and rain-proof for outdoor reliability.

⚙️

Technical Specifications

QX2000 Battery Charger Parameters (Input: 90VAC~260VAC)
Rated Voltage	Lead Acid (CV)	Li-ion (CV)	LiFePo4 (CV)	Current @220V	Current @110V	Net Weight	Size (mm)
12V	14.7V	16.8V	14.6V	50A	50A	3.6kg	28716885
24V	29.4V	33.6V	29.2V	50A	30A
36V	44.1V	42V	43.8V	35A	25A
48V	58.8V	54.6V	58.4V	35A	21A
60V	73.5V	71.4V	73V	30A	18A
72V	88.2V	84V	87.6V	25A	15A

*Note: Cut-off point for Lithium batteries is 5% of CC (adjustable between 3-10%).

🏭

Production Process

1SMT: Precision mounting of electronic components onto PCBs.

2Wave Soldering: High-temperature stable electrical connections.

3Re-welding: Manual inspection and reinforcement of key points.

4Debugging: Initial functional performance testing.

5Assembly: Combining PCBA with structural frameworks.

6Glue Filling: Enhancing waterproof, shockproof, and heat dissipation.

7Testing: Comprehensive verification of safety and stability.

8Aging Test: Continuous power-on simulation for long-term reliability.

9Packing: Professional shockproof and dust-proof packaging.

📜

Global Certifications

Our commitment to excellence is backed by international standards, ensuring safety, quality, and global market access:

CE Certification: Compliance with EU health & safety regulations.

RoHS: Free from hazardous substances for environmental safety.

ISO 9001: Robust quality management framework.

CB Scheme: International safety testing for electrical products.

📦

Packing & Delivery

Package Specifications:
• Size: 55.70cm * 40.00cm * 46.00cm
• Gross Weight: 25.00kg
• Protection: Shockproof paper box packaging for maximum safety.

❓

Frequently Asked Questions

What types of batteries can this charger support?

The QX2000 is highly versatile and supports Lead-acid, Lithium-ion (Li-ion), and Lithium Iron Phosphate (LiFePO4) batteries.

Is the charger suitable for outdoor marine or automotive use?

Yes, it features an IP67 waterproof rating, making it splash-proof and rain-proof, ideal for marine, golf carts, and other outdoor environments.

Does the charger support different input voltages for global use?

Absolutely. The wide input voltage range of 90VAC to 260VAC (50/60HZ) allows it to be used reliably in almost any country.

How do you ensure the quality of the chargers?

Every unit undergoes a "Five Dimensional Quality Assurance System" involving 26 processes, including SMT, glue filling for insulation, and rigorous power-on aging tests.

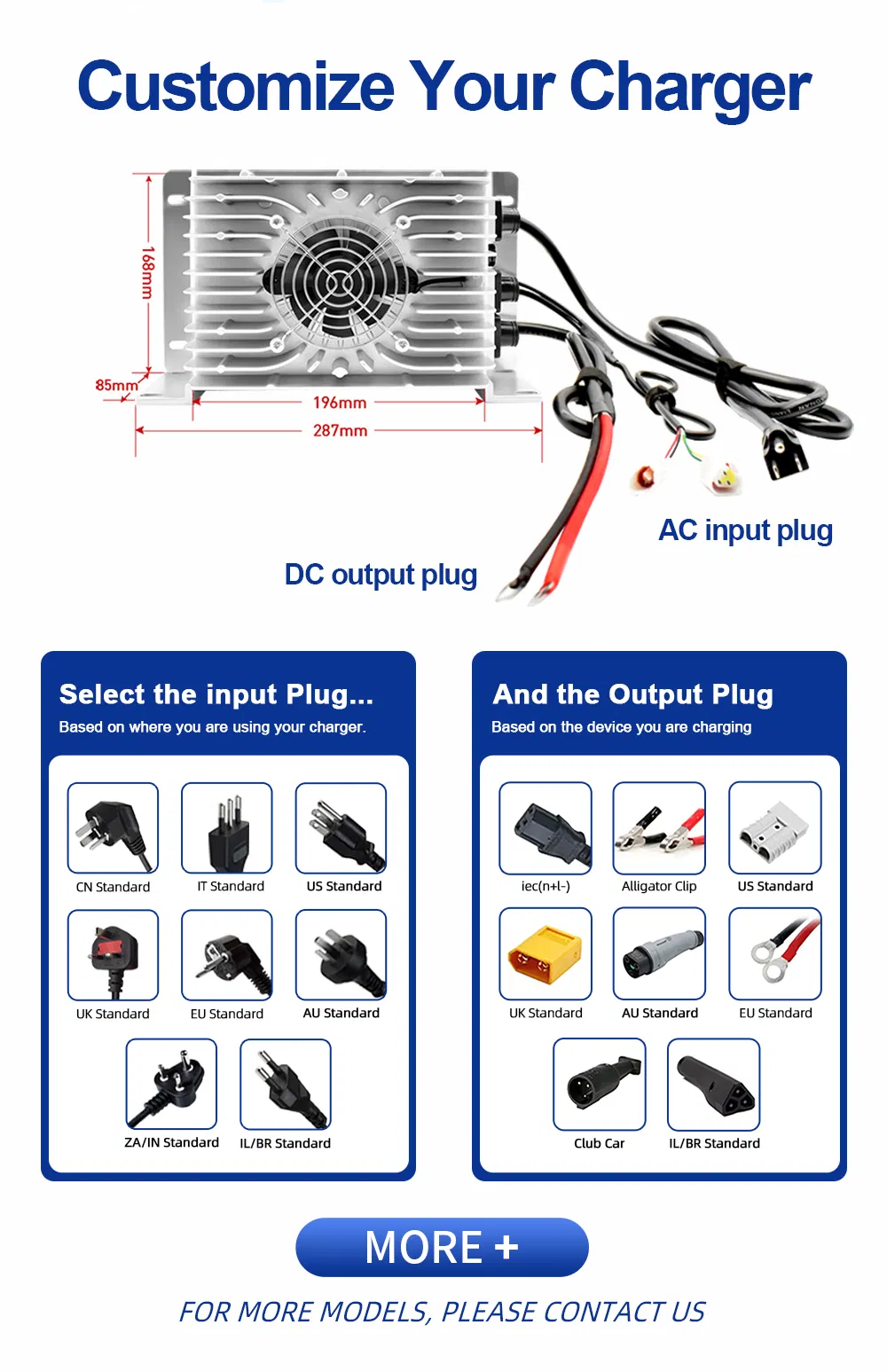

Can the output plugs be customized for my specific vehicle?

Yes, we provide customized socket and plug types to match your specific application requirements.

What is the standard production lead time?

Standard production usually takes 5-7 days after payment. Shipping can be arranged via DHL, FedEx, UPS, or sea freight.
