| Specification | Details |
|---|---|

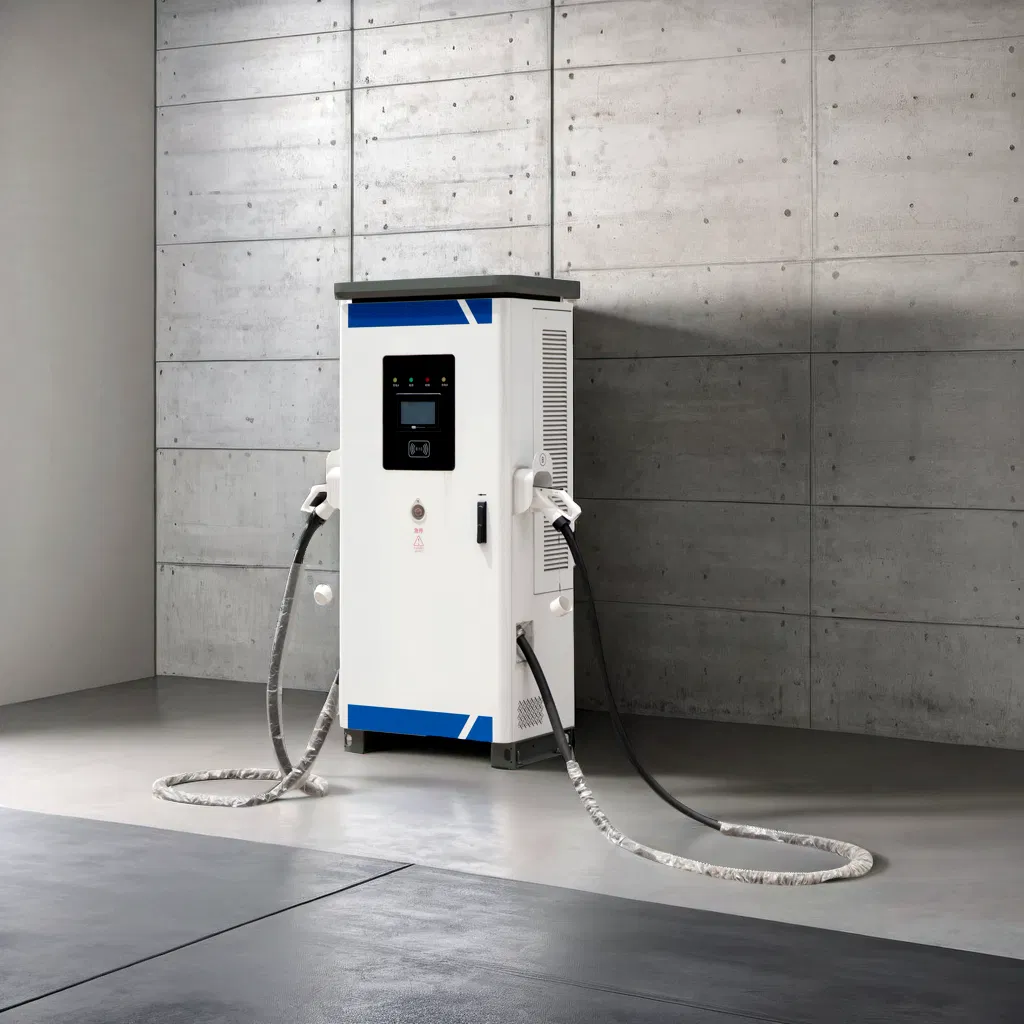

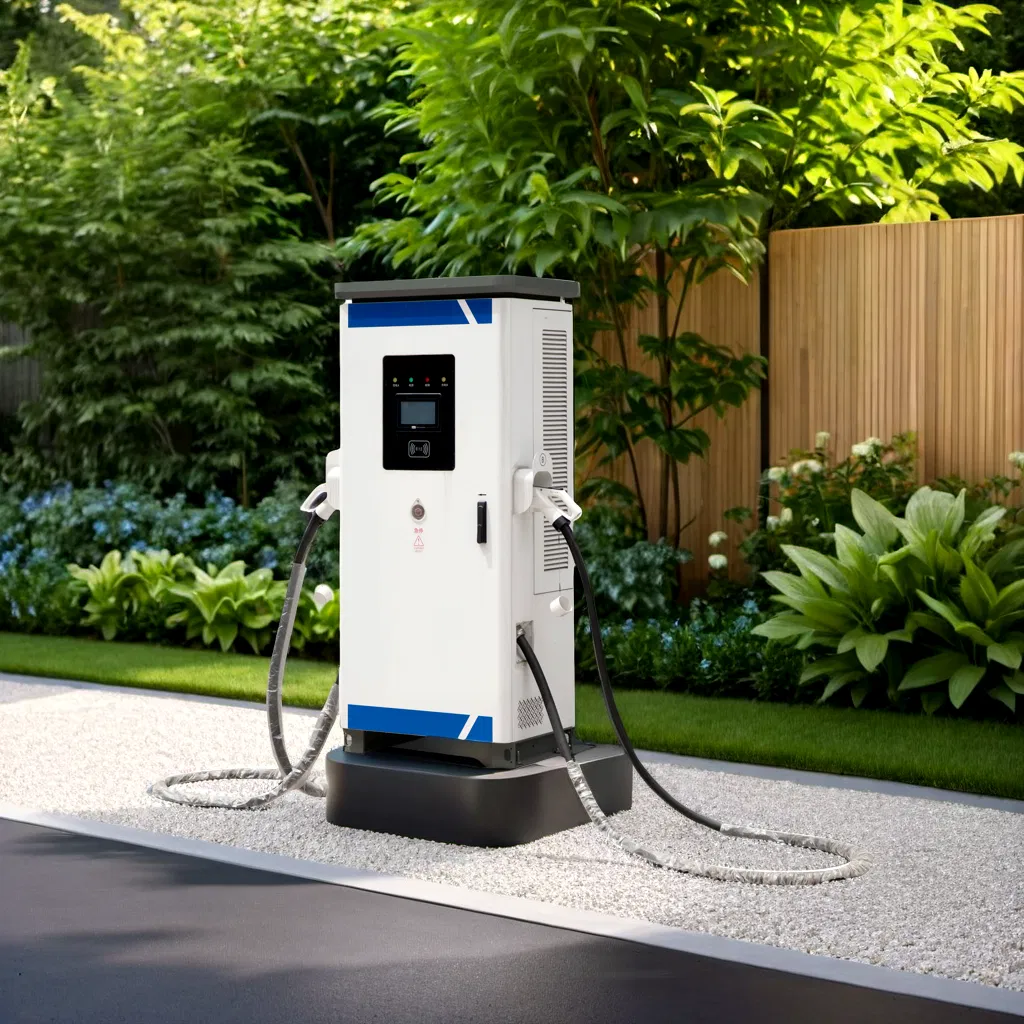

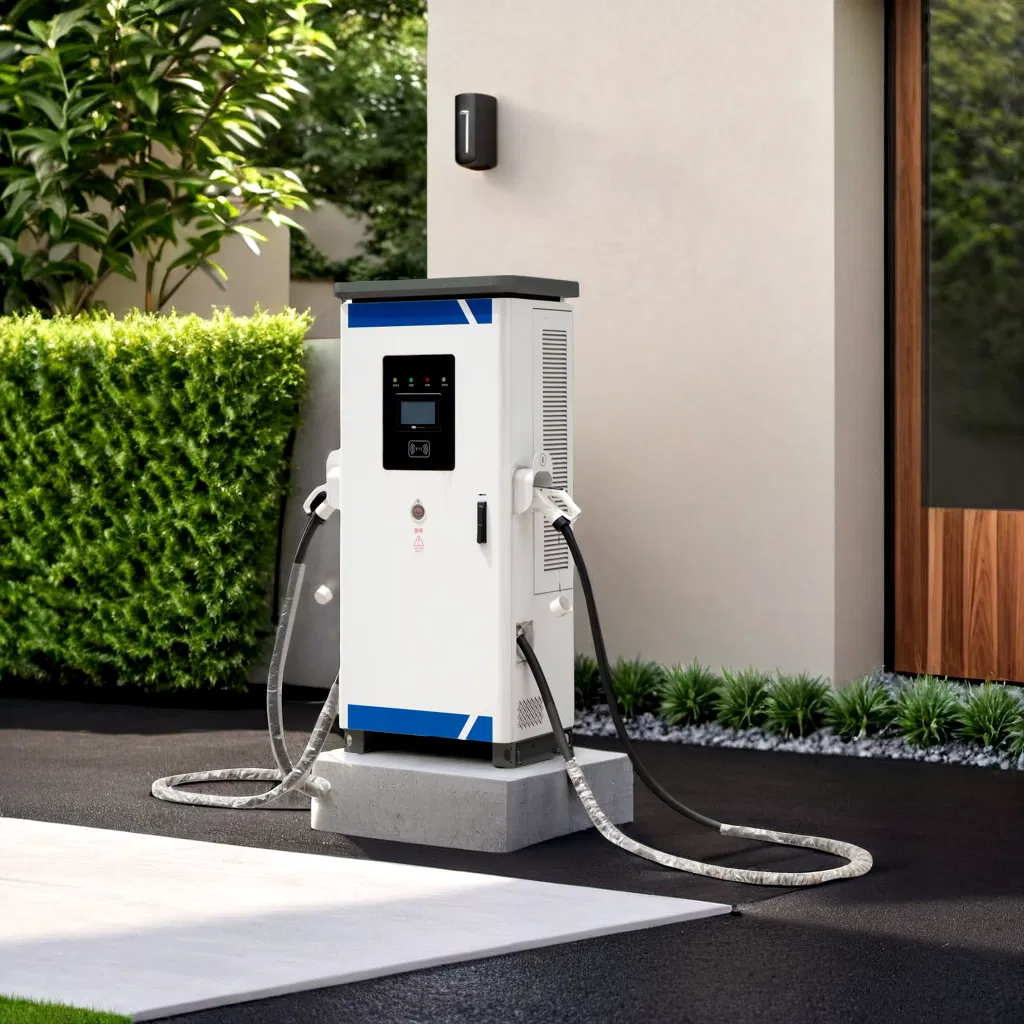

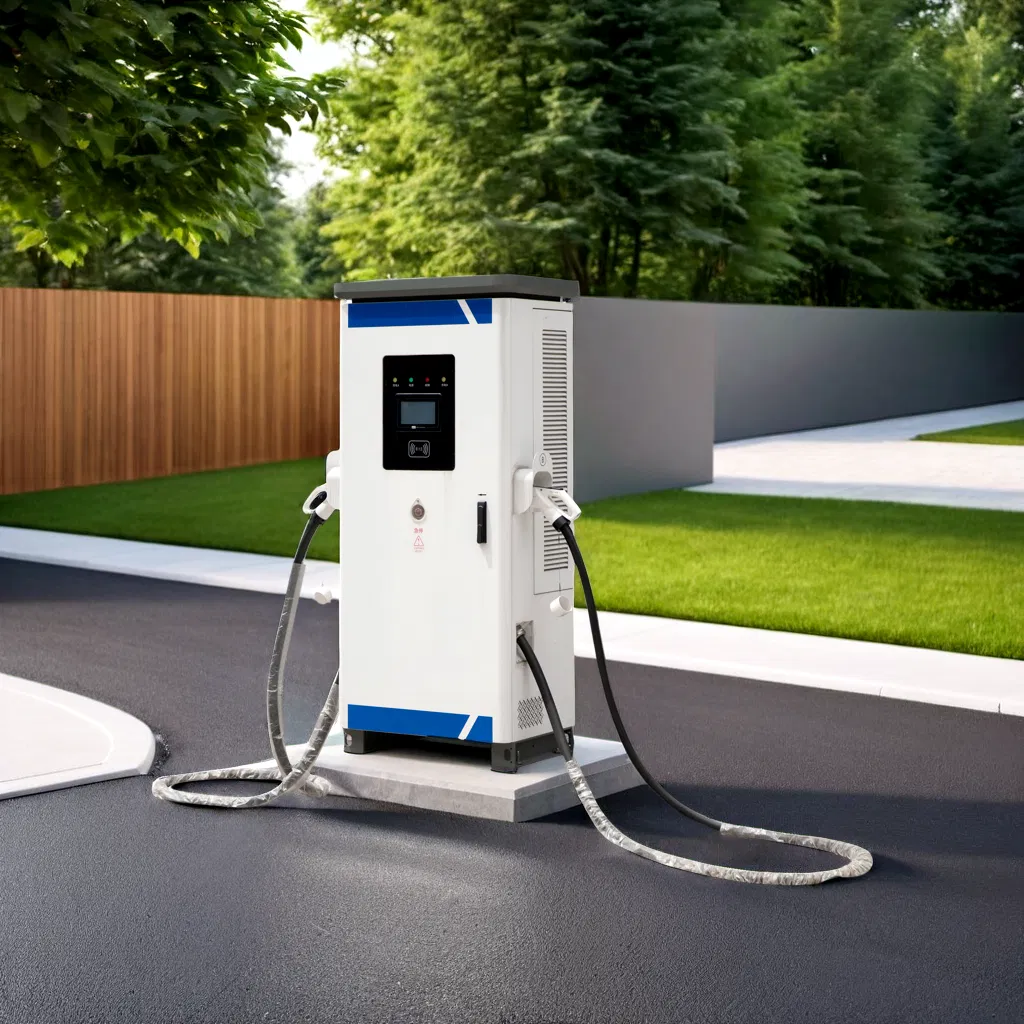

| Product Name | 120KW Integrated DC Charger |
| Installation | Floor-standing |
| Rated Power | 120KW |
| Charging Mode | Automatic, timing, quantitation, fixed fee, appointment |
| Size (H*W*D) | 770*560*1870 mm / Customized |
| AC Input Voltage | 380±15%, 3 phases +N+PE |
| Input Frequency | 45~66Hz |
| DC Output Voltage | DC 200V~1000V |
| DC Output Current | 0~250A (single gun) |
| Plug standard | CHAdeMO or CCS1 or CCS2 or GB/T |
| OCPP | OCPP 1.6 |
It can satisfy charging requirement for all vehicle types and different powers and dynamically match the electric vehicle connecting with any of terminal for its required charging power. It meets future requirements for large power and fast charging, avoiding repeated equipment upgrading.
Adopts intelligent charging modules with high power density, high efficiency, and low harmonics. Ideal for buses and other electric vehicles requiring large-power charging.
Dynamically distributes power based on BMS requirements. As battery technology evolves, the system can be expanded with additional modules to meet higher power needs.
Equipped with a complete CNC machining industry chain including laser cutting, CNC punching, bending, robot welding, and automatic powder spraying lines. Fast and efficient production ensures reliable delivery periods for all clients.
