| Model NO. | EDC-120KW |
| Location | Public or Private Use |
| Number of Charging Interfaces | One Pile with Multiple Charges |
| Package Size | 1900cm*800cm*600cm |
| Display Screen | 7 Inch Color Touch Screen |
| Cooling Mode | Air Cooling |
| Noise | Less Than 65dB |
| Operating Temperature | -20-50°C |
| Push Buttons | Emergency Stop |
| IP Level | IP54 |
| Transport Package | Wooden Box |
| Origin | China |
| HS Code | 8504409999 |
| Production Capacity | 2000000pieces/Year |

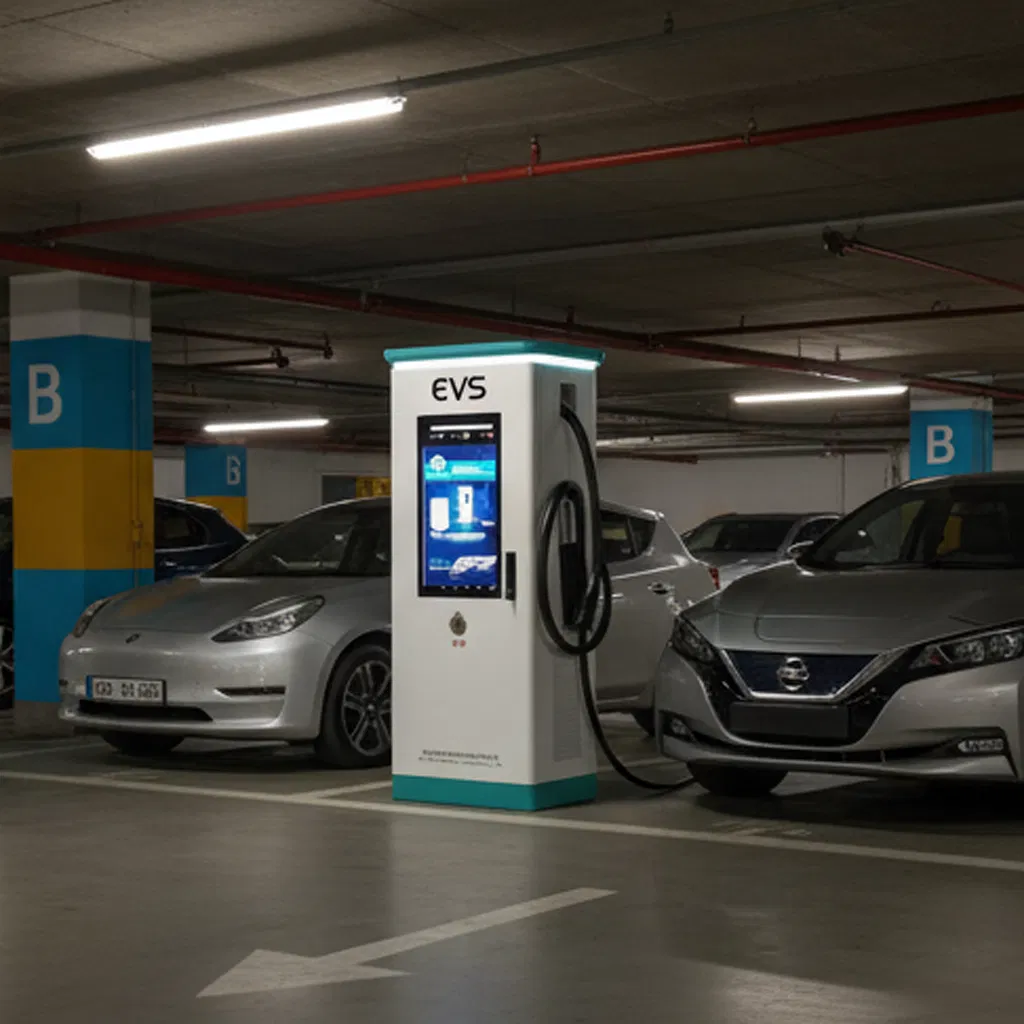

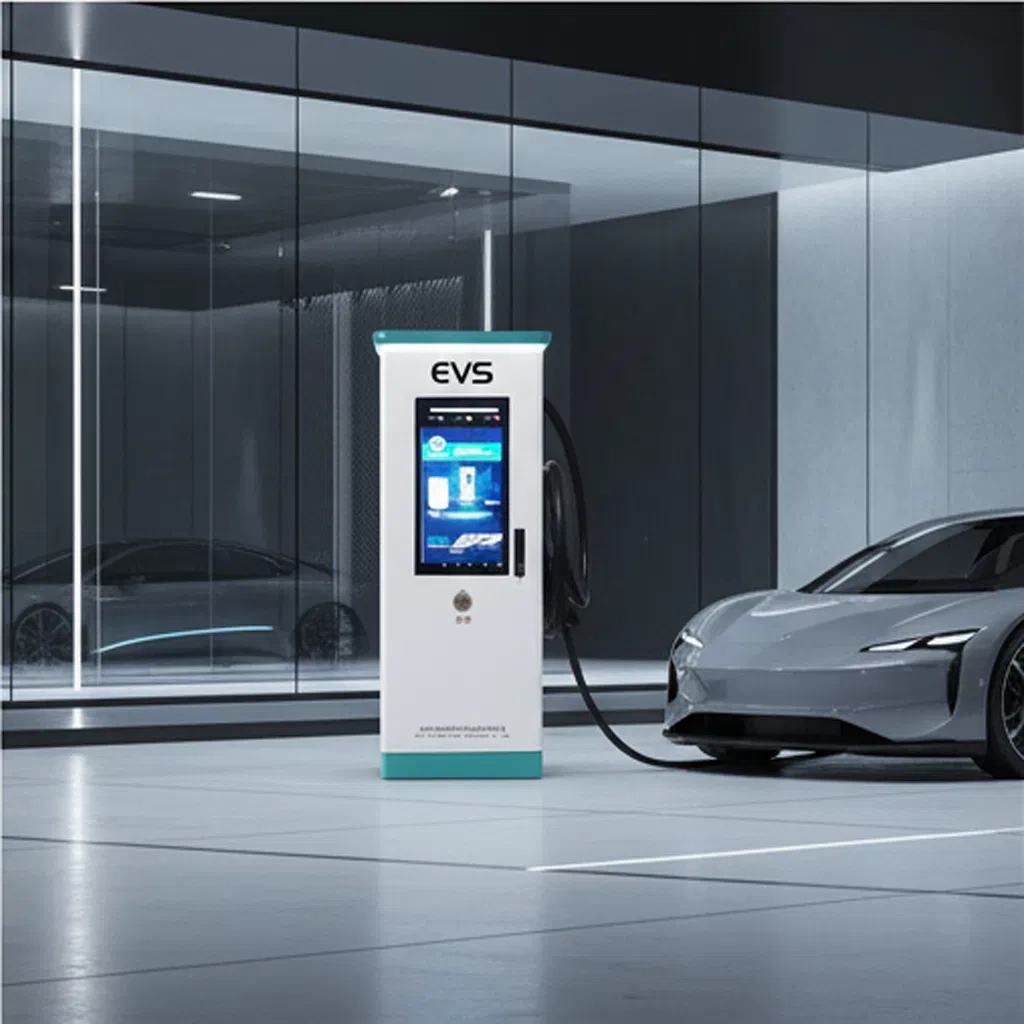

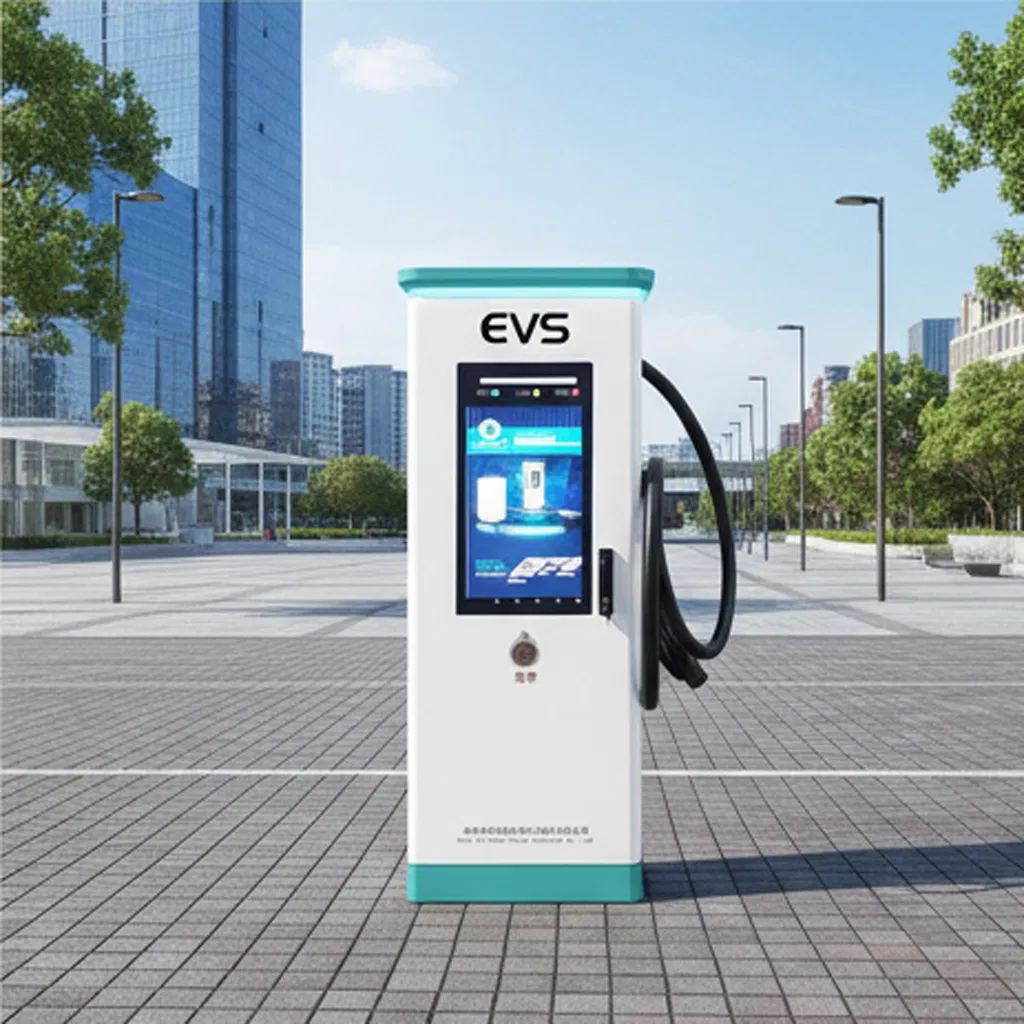

| Product Name | 60KW Integrated DC Charger |
| Installation Method | Floor-standing |
| Rated Power | 60KW |
| Charging mode | Automatic, timing, quantitation, fixed fee, appointment |
| Size (H * W * D) | 770*560*1870 mm |
| Input Specifications | |
| AC Input Voltage | 380±15%, 3 phases +N+PE |
| AC Input Frequency | 45~66Hz |
| Output Specifications | |
| DC Output Voltage Range | DC 200V~1000V |
| DC Output Current | 0~250A (single gun) |
| Connection & Interaction | |
| Plug wire length | 5m (customizable) |
| Plug standard | CHAdeMO or CCS1 or CCS2 or GB/T |
| Running Indication | Power supply, charging, fault |
| Display Mode | 7" Color Touch Screen |
| Protection level | Outdoor IP54 / sheet metal shell |
| Emergency(EPO) | Emergency stop cuts off DC output |
| OCPP | OCPP 1.6 |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
It can satisfy charging requirement for all vehicle types and different powers and dynamically match the electric vehicle connecting with any of terminal for its required charging power; in the future, it can meet the requirement of large power and fast charging for electric vehicle, avoiding the repeated input caused by equipment upgrading and reforming as well as charging station re-construction.
It adopts intelligent charging module, capable of high power, high power density, high power factor, high efficiency, low harmonic, high intelligent degree and other highlights, especially suitable for bus and other electric vehicles need large-power charging.
Reducing energy consumption and improving the efficiency of charging module make the power distribution more reasonable, power switching more stable and granularity finer.
The machine can dynamically distribute the charging power based on charging requirement sent by BMS of vehicle to be charged, so as to improve the efficiency of charging equipment. Highly integrated system including power converting, monitoring, and orderly management.
As the rising of battery charging multiplying power, the needs of charging power will be larger and corresponding charging module can be expanded to meet the charging requirement.
Founded in 2010, the company integrates product R&D, design, manufacture, sales, installation, EV charging station construction, charging operation management system and other new energy EV charging related services, providing a professional one-stop charging solution.
Driven by technology as its responsibility, constantly innovating and exploring new EV charging products and solutions. We service all our chargers with great attention to detail over the last decade. With the core value oriented by people, we are committed to make better integration of clean new energy into our eco-friendly modern life.
The company possesses the complete CNC machining industry chain (including laser cutting machine, CNC punching machine, general large-tonnage punching machine, CNC bending machine, welding and robot welding, automatic powder spraying line, assembling production line). The fast and efficient production efficiency provides the most powerful supporting for delivery period of client.
