NexBolt Charger
1 / 5
| Model NO. | STS3300 |
| Charger Application | Standard Battery |
| Nominal Voltage | 12V/24V/36V/48V/60V/72V |
| Charger Style | Intelligent Charger |
| Compatible Battery | Lithium/Li-ion/LiFePo4/Lead Acid |
| Output Power | 3300W |
| Efficiency | ≥ 93% (Full Loading) |
| IP Rating | IP34 |
| Warranty | 24 Months |
Intelligent Battery Chargers: Designed for lead acid, LiFePo4, and lithium batteries. Ideal for electric cars, forklifts, sightseeing cars, golf carts, and patrol vehicles.

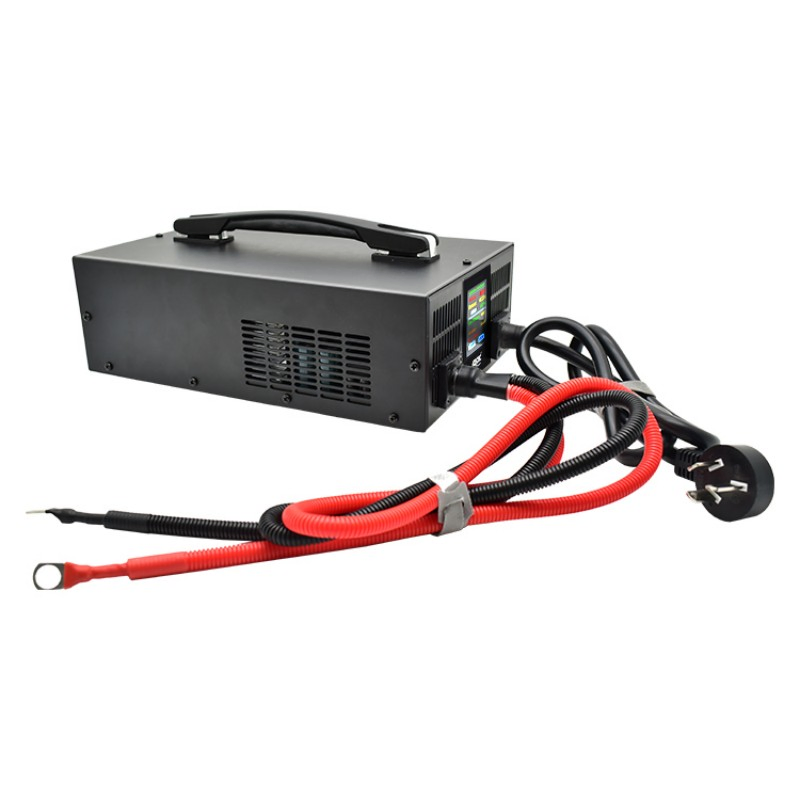

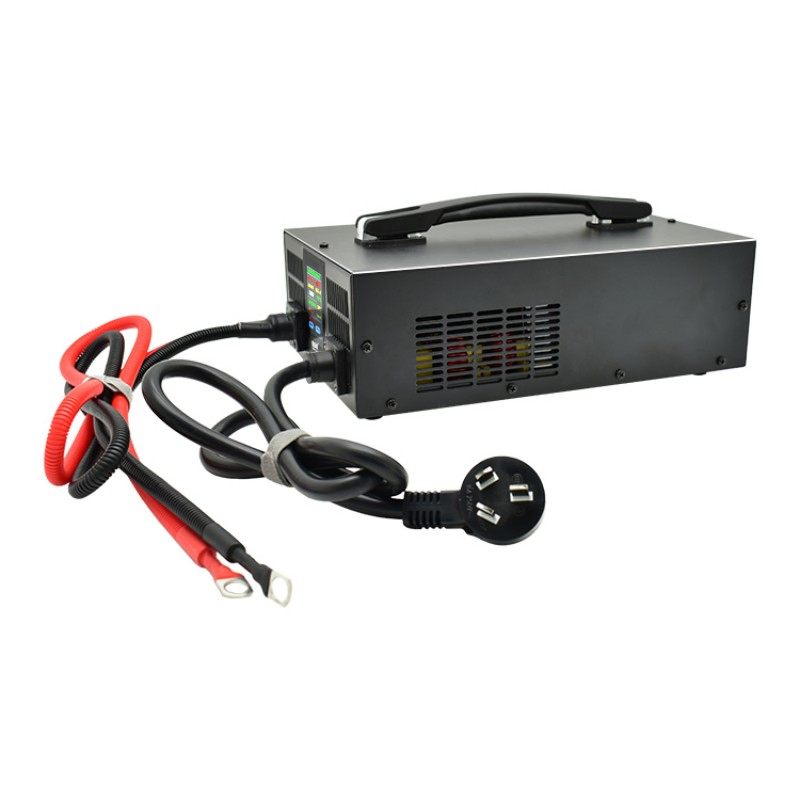

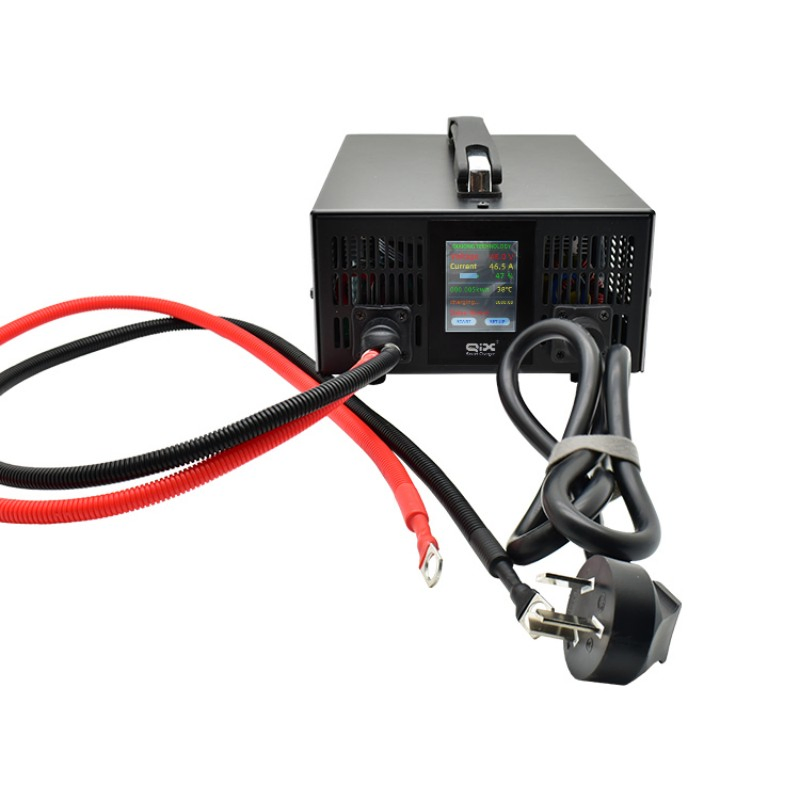

Featuring a fully enclosed aluminum alloy shell for superior heat dissipation and an intelligent temperature control fan. The IP34 rating ensures splash-proof and rain-proof performance for reliable outdoor use.
| Rated Voltage | Lead Acid (CV) | Li-ion (CV) | LiFePo4 (CV) | CC (@220Vac) | Size (mm) |
|---|---|---|---|---|---|
| 12V | 14.7V | 16.8V | 14.6V | 200A | 288*180*100 |
| 24V | 29.4V | 33.6V | 29.2V | 100A | 288*180*100 |
| 48V | 58.8V | 54.6V | 58.4V | 55A | 288*180*100 |
| 72V | 88.2V | 84V | 87.6V | 40A | 288*180*100 |
Our products adhere to global standards to deliver quality and safety:
| Package Size | 52.00cm * 42.00cm * 40.00cm |
| Gross Weight | 26.500kg |
| Lead Time | 20-30 days depending on order quantity |
