NexBolt Charger
1 / 5
Fast Charging Speed: High voltage and high current output matched with adaptive battery systems can achieve rapid replenishment of power, significantly shortening charging time.
High Efficiency: Direct current output reduces power conversion losses. Efficiency can reach over 95%.
Intelligent Management: Advanced algorithms dynamically adjust parameters based on battery status (temperature, voltage, etc.) to ensure safety and extend battery life.

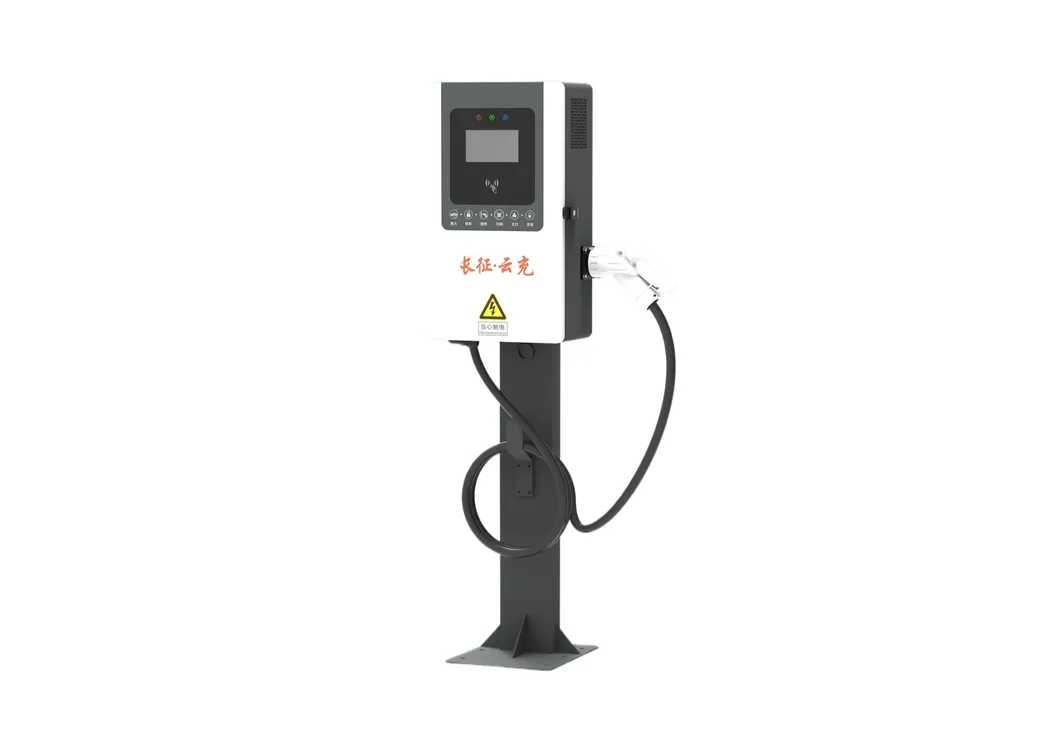

Ideal for highway service areas and urban stations. Designed for harsh environments, working stably from -30ºC to 50ºC. High protection performance against humidity, sand, and extreme temperatures.

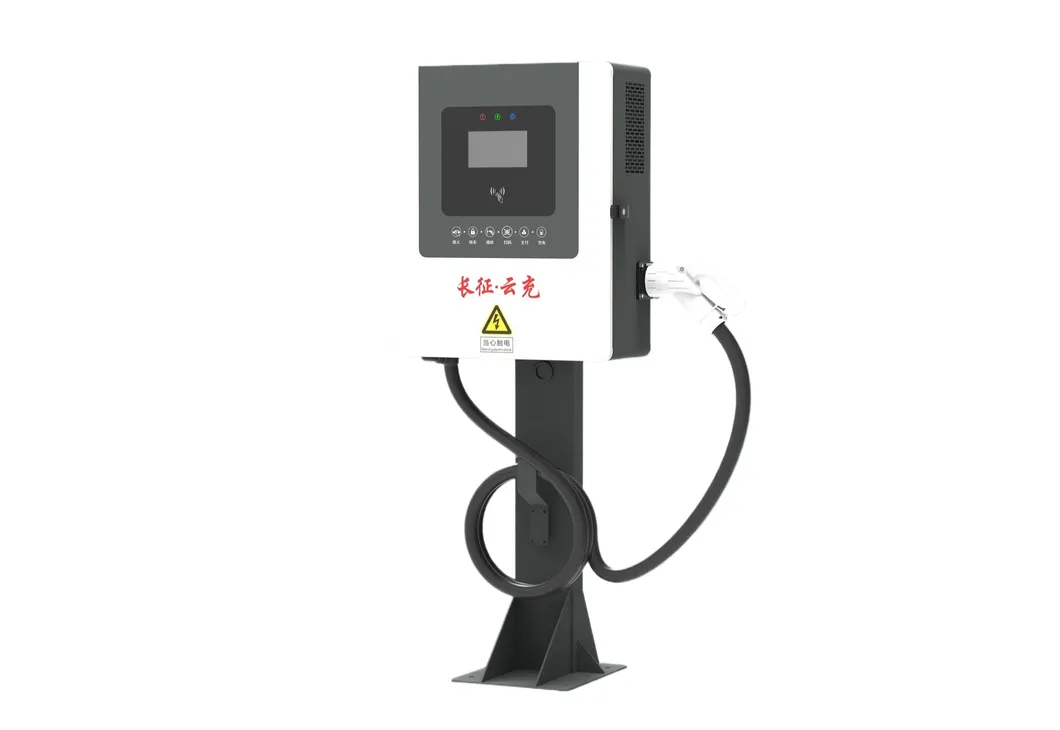

Equipped with high-precision power modules for stable output. Real-time monitoring of voltage, current, and temperature ensures the stability of the charging process through continuous feedback control.

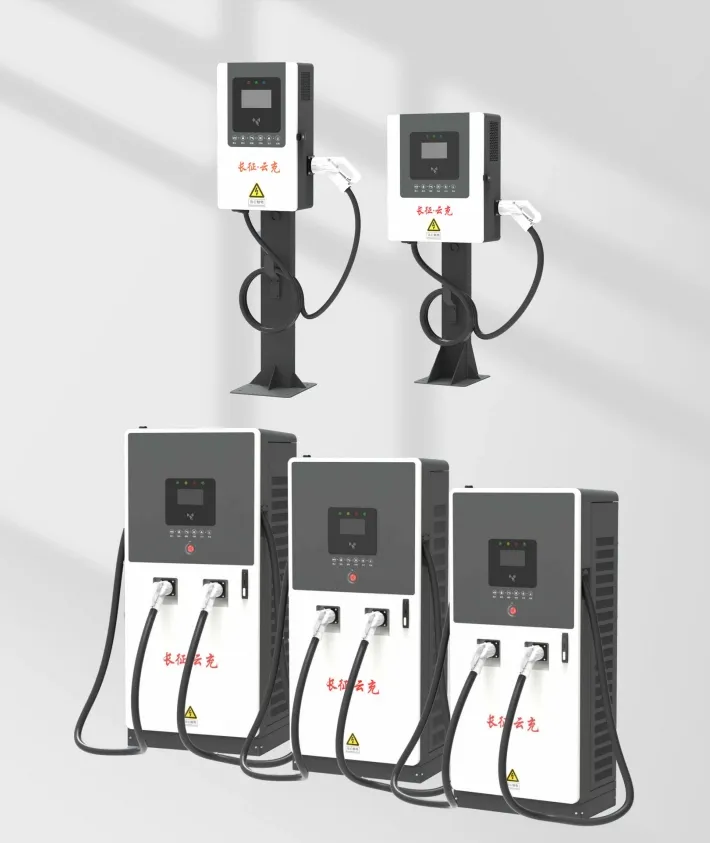

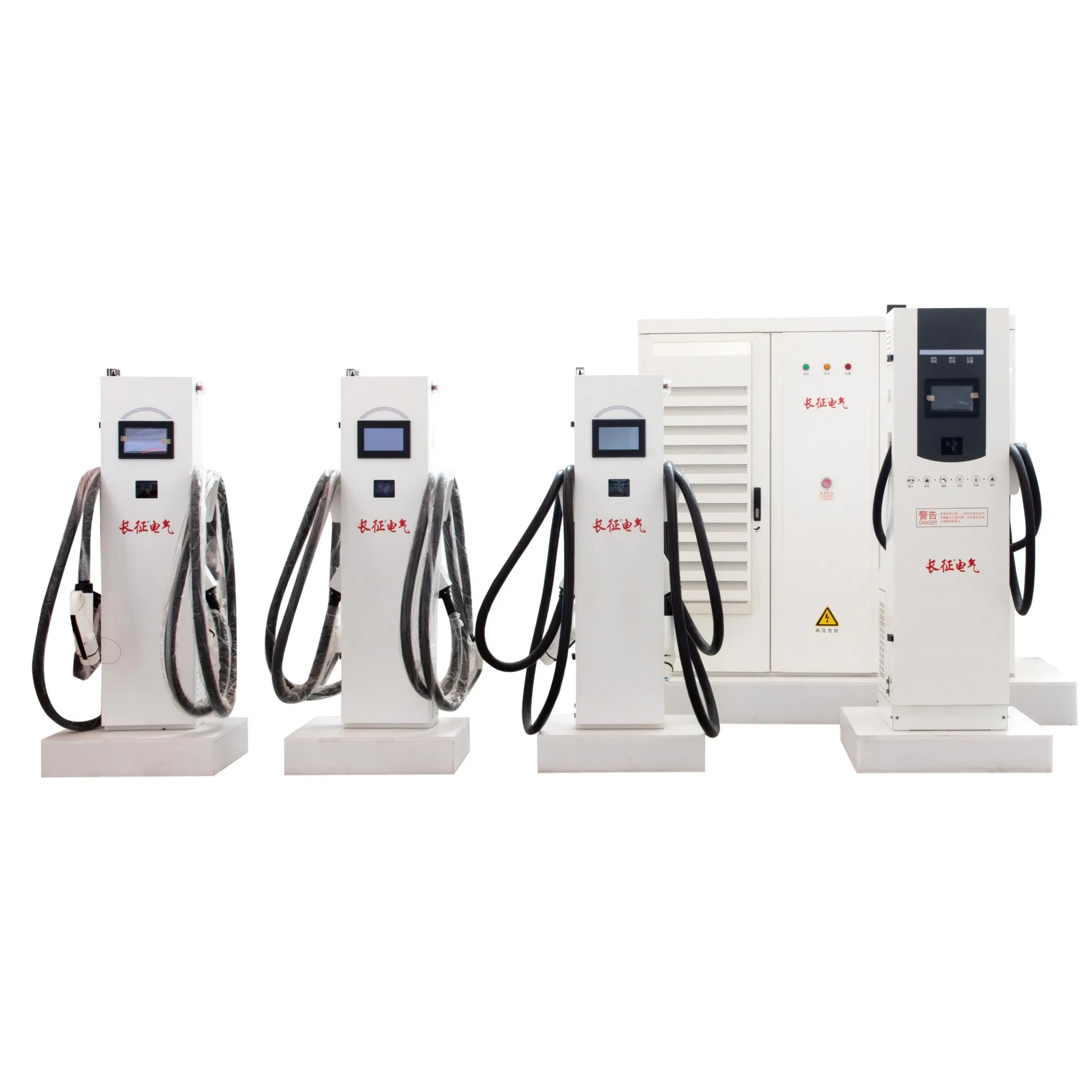

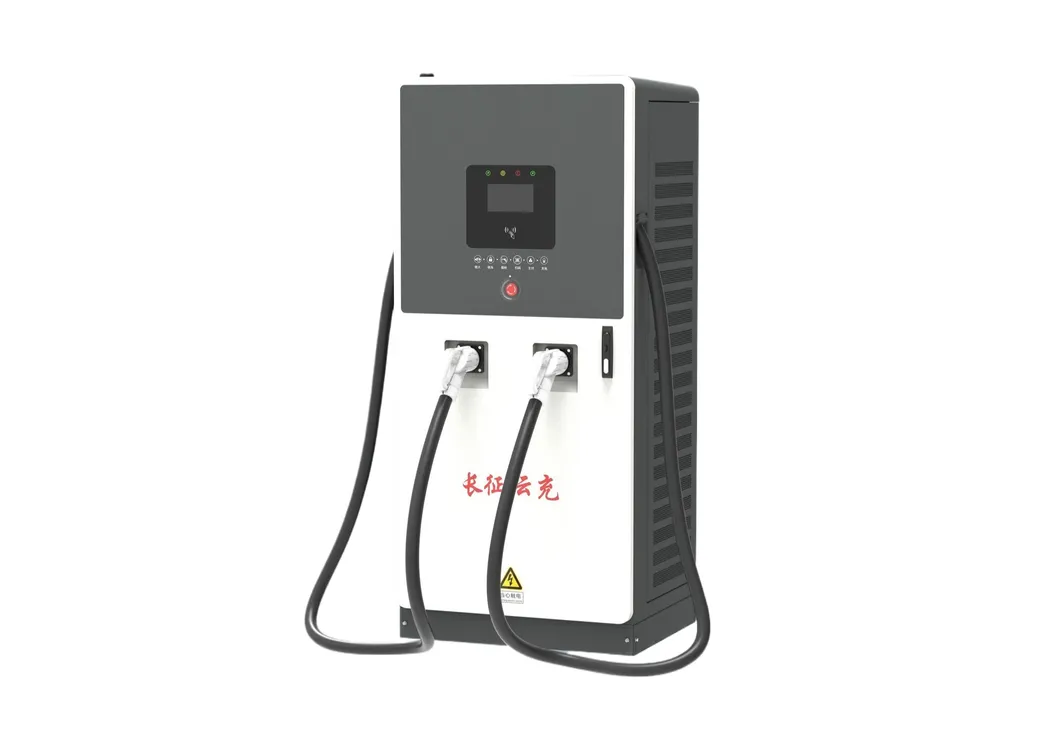

Multi-gun configurations allow charging multiple vehicles simultaneously. Intelligent power allocation ensures each vehicle receives optimal current without conflicts.
| Parameter Item | 20kW / 30kW | 80kW / 120kW / 160kW | |
|---|---|---|---|
| Input | Voltage | AC 380V±15% | AC 380V±15% |
| Frequency | 45 ~ 65Hz | 45 ~ 65Hz | |
| Output | Voltage Range | DC 200V - 1000V | DC 200V - 1000V |
| Peak Efficiency | ≥95% | ≥95% | |
| Output Current | Up to 100A | Up to 250A | |
| Safety | Protection Grade | IP54 / IP55 | IP54 / IP55 |
| Functions | Over/Under Voltage, Over Current, Short Circuit, Over Temperature, Leakage, Lightning Protection, Emergency Stop | ||

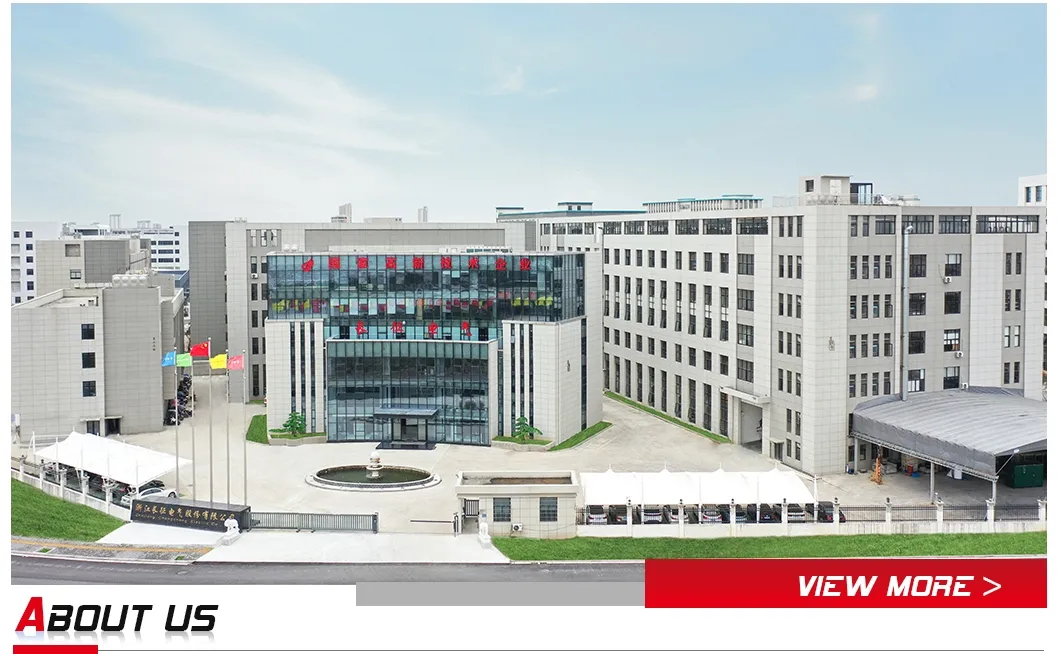

A comprehensive national high-tech enterprise dedicated to the research, development, and manufacturing of charging infrastructure and electric power equipment. With over 200 patents and advanced digital management platforms, the infrastructure supports intelligent distribution monitoring and green energy initiatives.
