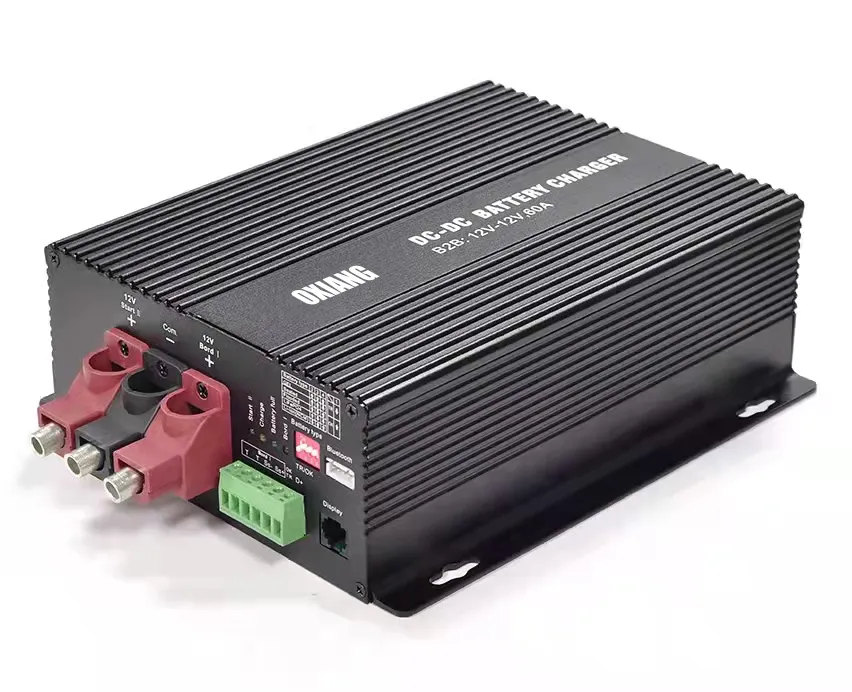

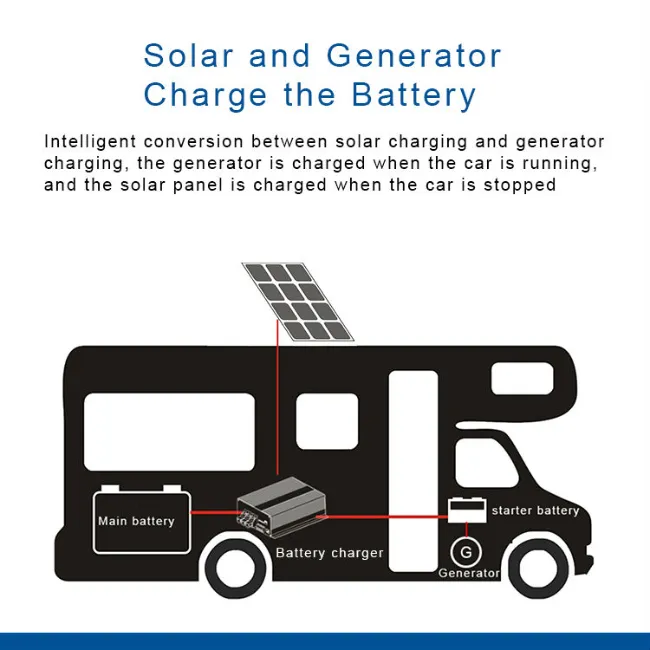

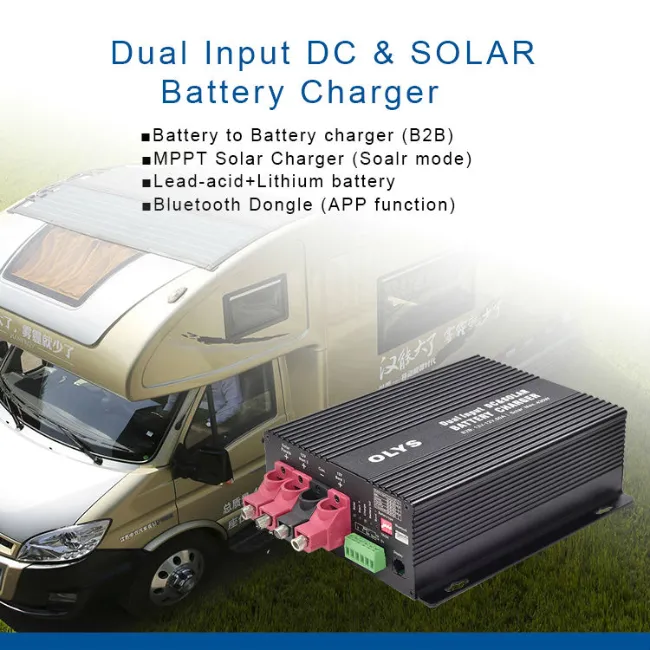

This is an all-automatic charger with 2 charging sources. You can use a 12V battery to charge another 12V battery (B2B), or use solar panels. The system features intelligent switching between charging methods, specifically designed for RVs, campervans, and marine vessels.

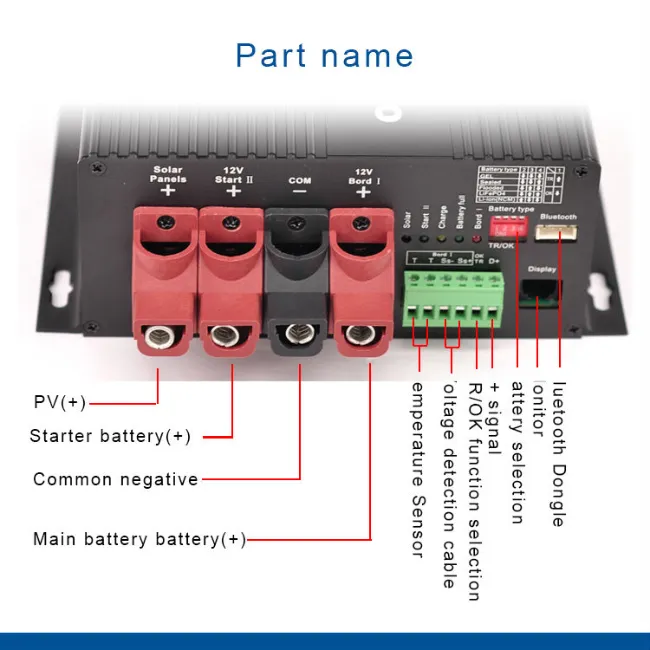

| Cable Cross Section | Cable Length "+ Start II" | Cable Length "- Batt." | "Fuse II" Protection | Cable Length "- Com." to "- Board I" | Cable Length "+ Board I" | "Fuse I" Protection | Solar Panel Cables (+/-) |
|---|---|---|---|---|---|---|---|
| 10mm² | _ | _ | _ | 0.5-2.0m | 0.5-2.0m | 80A | up to 10m |
| 16mm² | up to 7m | up to 7m | 100A | 1.5-3.0m | 1.5-3.0m | 80A | up to 16m |
| 25mm² | up to 10m | up to 10m | 100A | 2.5-5.0m | 2.5-5.0m | 80A | _ |
| Cable Cross Section | Cable Length "+ Start II" | Cable Length "- Batt." | "Fuse II" Protection | Cable Length "- Com." to "- Board I" | Cable Length "+ Board I" | "Fuse I" Protection | Solar Panel Cables (+/-) |
|---|---|---|---|---|---|---|---|
| 4mm² | _ | _ | _ | 0.5-1.5m | 0.5-1.5m | 40A | up to 7m |
| 6mm² | up to 5m | up to 5m | 50A | 1.0-2.5m | 1.0-2.5m | 40A | up to 10m |
| 10mm² | up to 8m | up to 8m | 50A | 2.0-4.0m | 2.0-4.0m | 40A | up to 16m |
