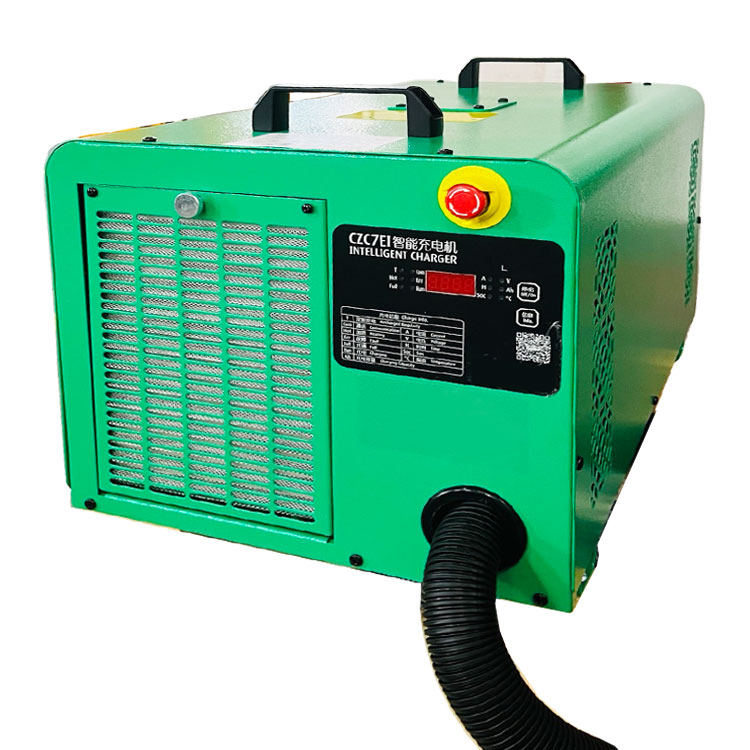

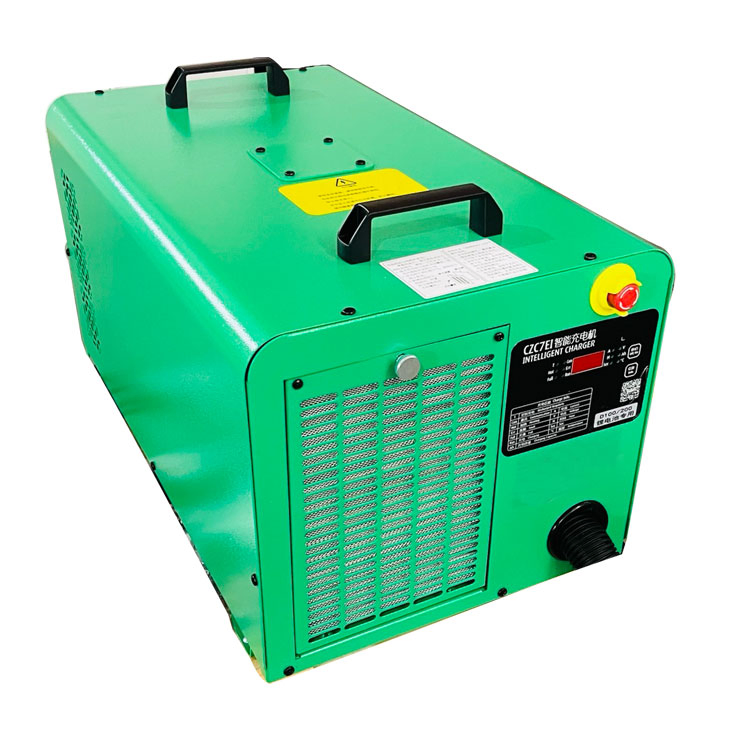

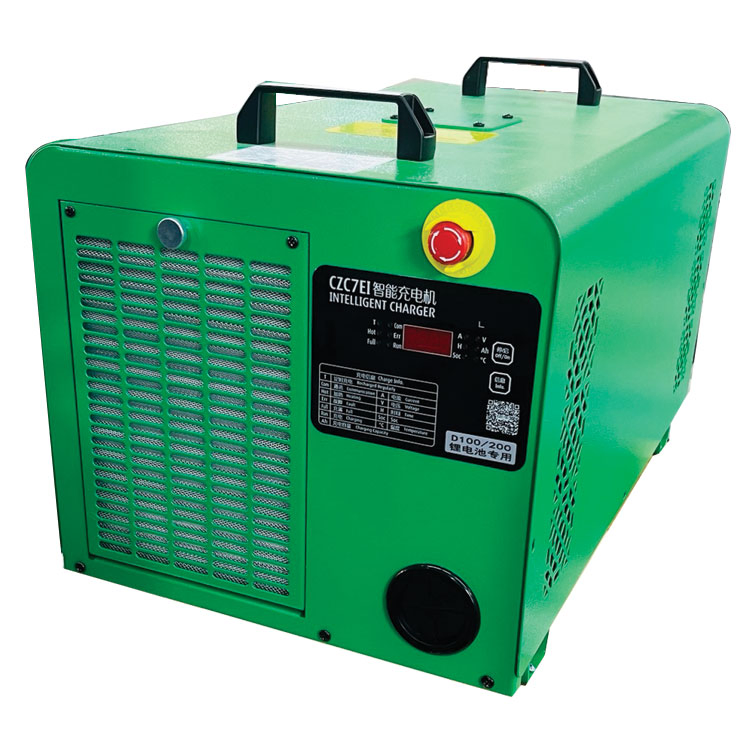

Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
1 / 5
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei
Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei

Li-ion LiFePO4 Battery Charger 100V 200A Forklift Truck Lithium Battery Charger Czc7ei

Customization: Available
Rated Power: 16kw
Charging Current: 200A
Send Inquiry

Product Description

Basic Specifications
Model NO.CZC7EI
Input Voltage100-400V
TypeLithium Ion Battery Charger
Charging TypeElectric Charger
PrincipleLLC
OriginChina
HS Code8504409999
Logistics Info
Transport PackagePlywood
Specification85x46x50.5cm
Package Size85.00cm * 46.00cm * 50.00cm
Package Gross Weight50.000kg
Production Capacity50000
Product Description

Li-ion LifePo4 battery Charger 100V 200A Forklift Truck Lithium Battery Charger CZC7EI

The CZC7EI series lithium charger features a built-in high-performance embedded charging controller. It communicates with the lithium battery BMS via CAN bus, accepting charging parameter requirements directly from the BMS. By controlling the main circuit power modules in parallel, it outputs the precise charging current and voltage required for closed-loop control of the lithium battery charging process.

Through the parallel operation of standardized large-scale production power modules, it provides continuous adjustable charging current for various lithium battery specifications, meeting diverse charging process requirements.

Key Features & Functions
✓
Smart Communication: Built-in default charging curves and various BMS communication protocols. Customized curves can be set at the factory to meet specific needs.
✓
Real-time Monitoring: Monitors all parameters during the charging process to ensure perfect protection and smooth operation.
✓
Reservation Charging: Set specific timing for charging to utilize peak and valley electricity rates, significantly saving on electricity costs.
✓
Power Loss Protection: System retains user-set parameters for a long time; settings are not lost during power failures.
✓
Digital Display: Clear digital tube displays battery voltage, charging current, capacity, time, working state, and module/battery info.
✓
Safety Detection: Automatically shuts down if the connecting line falls off during charging (battery falling off detection).
✓
Comprehensive Protection: Includes open circuit, over-current, over-voltage, overheating, and open phase protection.
Product Visuals

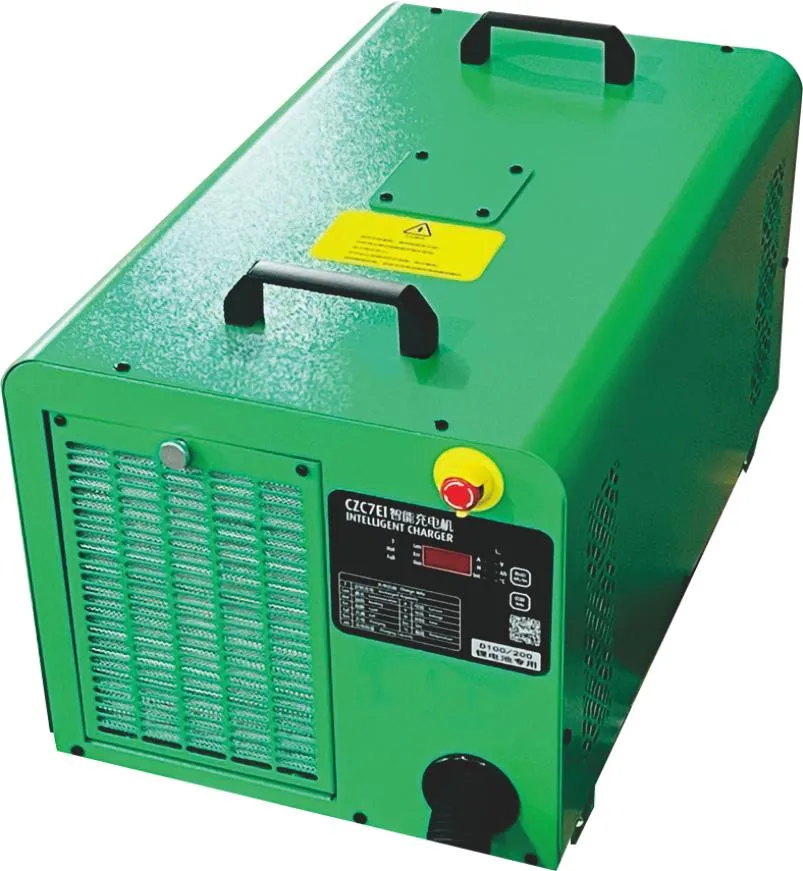

Li-ion LiFePO4 Battery Charger 100V 200A

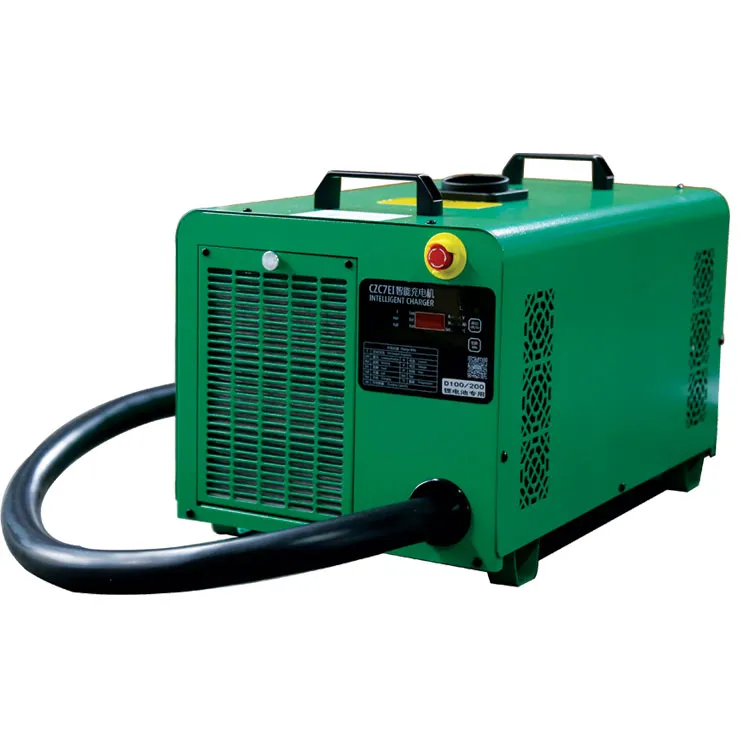

Forklift Truck Lithium Battery Charger

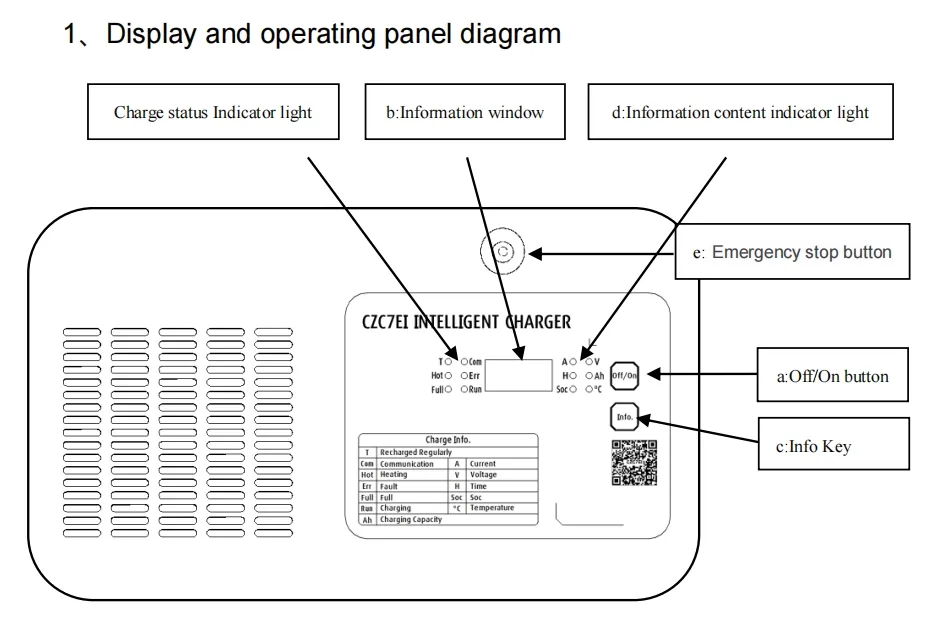

CZC7EI Charger Details
Lithium Battery Charger Internal

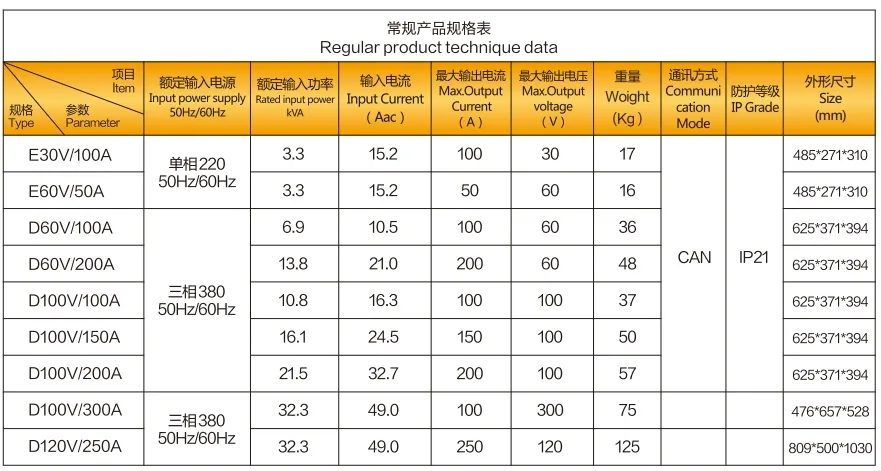

Charger Specifications
Frequently Asked Questions
Q1: What types of batteries is the CZC7EI charger compatible with?
A: It is specifically designed for Lithium Ion (Li-ion) and LiFePO4 batteries, commonly used in forklift trucks and other electric vehicles.
Q2: How does the charger communicate with the battery?
A: The charger uses a CAN bus interface to communicate with the battery's BMS (Battery Management System), ensuring the charging parameters match the battery's requirements.
Q3: Can I schedule charging to save on electricity costs?
A: Yes, the charger includes a reservation time charging function, allowing you to charge during off-peak hours to reduce electricity expenses.
Q4: What safety features are built into the system?
A: The charger includes multiple protections: open circuit, over-current, over-voltage, overheating, and open phase protection, along with battery falling off detection.
Q5: What information is shown on the digital display?
A: The digital tube displays real-time battery voltage, charging current, charged capacity, elapsed time, and the current working state of the charger.
Q6: Are the charging parameters lost if the power goes out?
A: No, the system features power loss protection, meaning all user-defined settings and parameters are stored in long-term memory.
