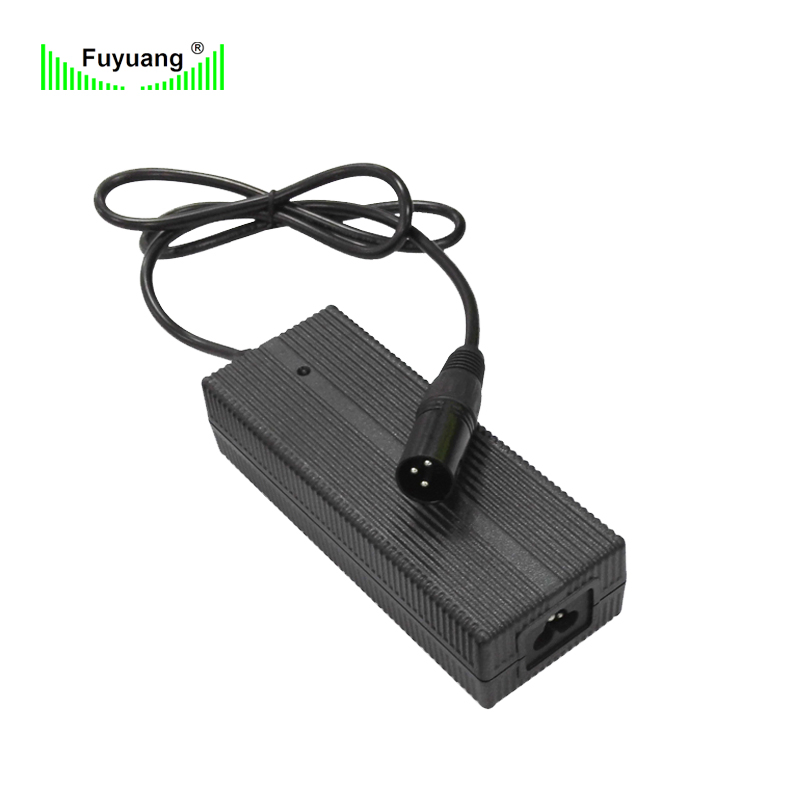

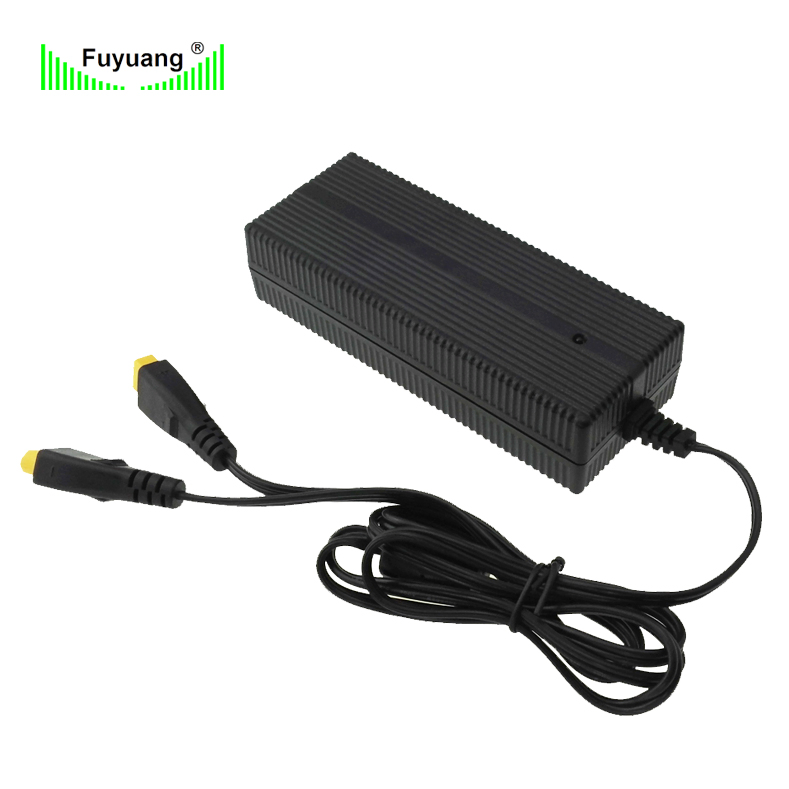

14.6V LiFePO4 Battery Charger 12.8V 4s Car Battery Charger

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model
FY1508000
Output Voltage
14.6V
Output Current
8A
Nominal Power
116.8W
Size
178*80*46 mm
Weight
0.78kg
Efficiency
>88%
Leadtime
2-3 weeks
Socket Types
UK, USA, EU
Color
Black
14.6V LiFePO4 Battery Charger
🛠️

Product Description

Product Name14.6v Lifepo4 Battery Charger 12.8v 4s Car Battery Charger
Input Voltage100-240V AC, 50/60Hz
Pressure Test3mA 3000VAC
Reliability25°C 30,000 hours
CertificatesCCC, UL, cUL, CE, GS, PSE, SAA, RCM, KC, KCC, CB, TUV, ROHS

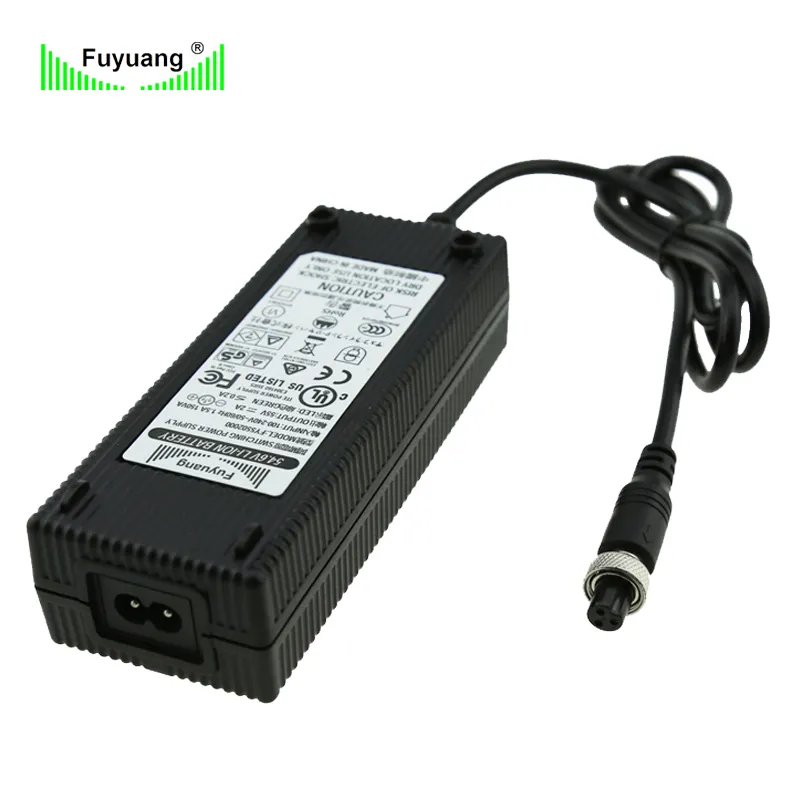

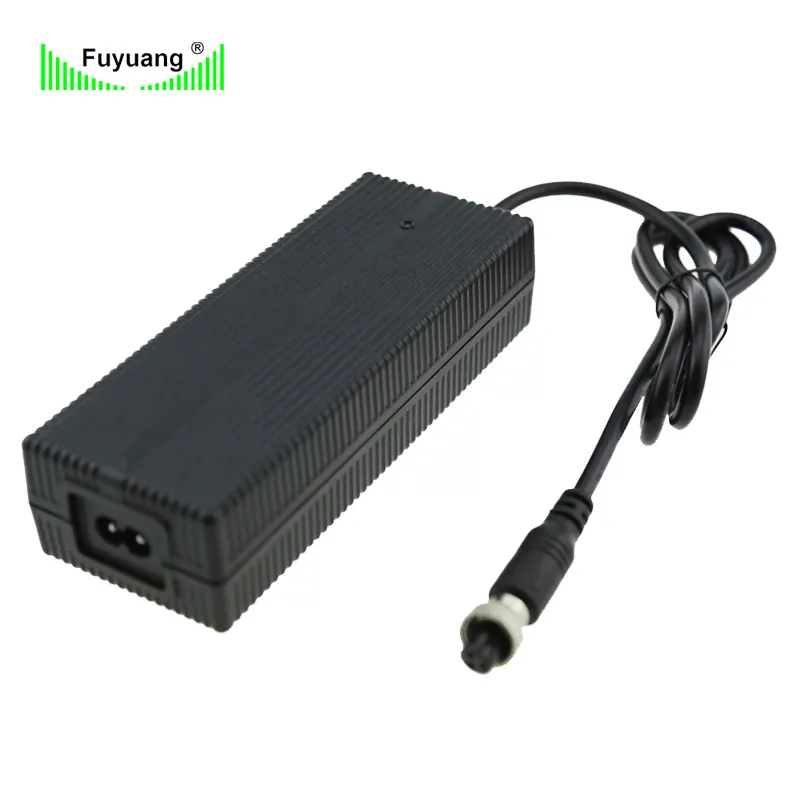

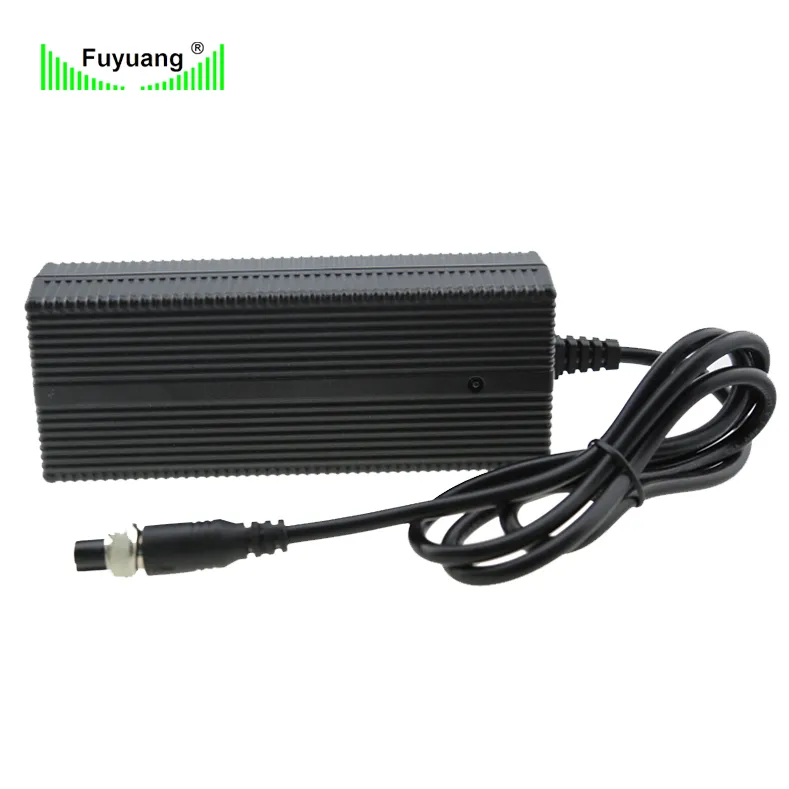

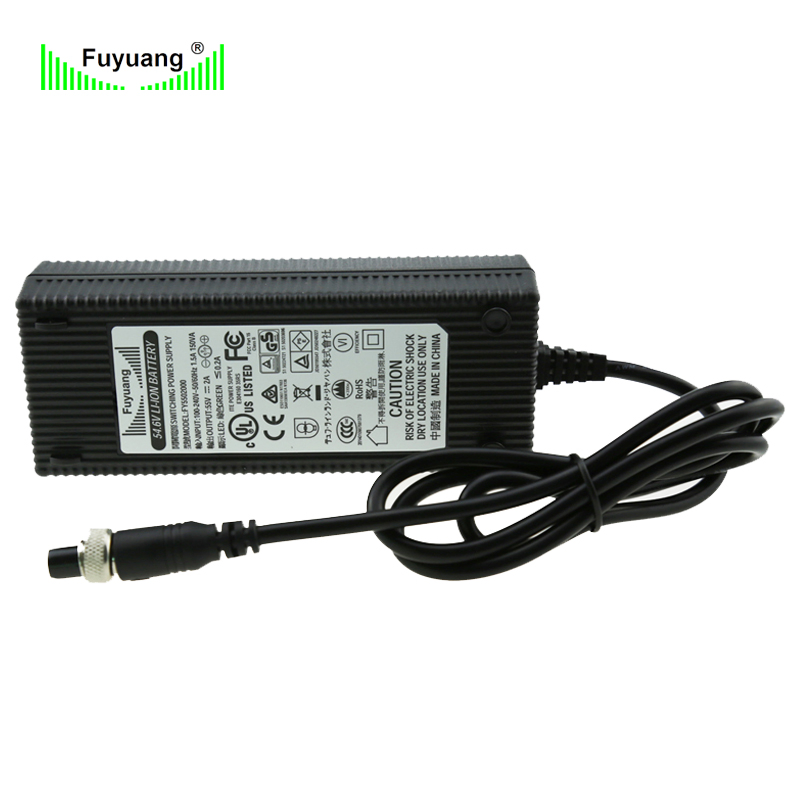

Charger view 1 Charger view 2 Charger view 3
Application Banner

🚀 Wide Applications

  • Electric vehicles, E-bikes, Electric Scooters, Golf cars, Car jumpers
  • Solar Systems, Home Applications, UPS backup power
  • LED Torches, Headlights, Portable power banks

⚡ Electrical Specifications

Universal Input: 100 - 240V AC, 50/60Hz
Input Plugs: EU, US, UK, AU, South Korea, South Africa Power cords
Charge Mode: CC--CV Mode (Lifepo4 battery charger)
LED Display: Red (In charging); Green (Full charge/Standby)

📏 Charging Voltage Compatibility

1s 3V
3.65V
4s 12V
14.6V
8s 24V
29.2V
16s 48V
58.4V

🛡️ Protection Functions

  • Over voltage protection
  • Over current protection
  • Over-load protection
  • Short circuit protection

🌍 Environment & Safety

Operation Temperature: -20°C to 40°C
Safety Standards: CCC, KC, PSE, SAA, C-Tick, UL/cUL, FCC, CE, CB, GS, TUV
Energy Efficiency: Level 6 (Energy Star), Standby Power <0.3W

Detailed Specs Diagram Product Quality

Frequently Asked Questions

Q1: What type of batteries is this charger suitable for?

A: This charger is specifically designed for 12.8V 4S LiFePO4 battery packs with a charging voltage of 14.6V.

Q2: How can I check the charging status?

A: The charger features a dual-color LED indicator. A red light means it is currently charging, and a green light indicates it is fully charged or in standby mode.

Q3: Does the charger work with international voltages?

A: Yes, it features a universal input of 100-240V AC, 50/60Hz, making it compatible for use worldwide with the appropriate plug adapter.

Q4: What safety protections are built into the device?

A: The charger includes multiple safety layers: over-voltage, over-current, over-load, and short-circuit protection to ensure safe operation.

Q5: What are the available output connector options?

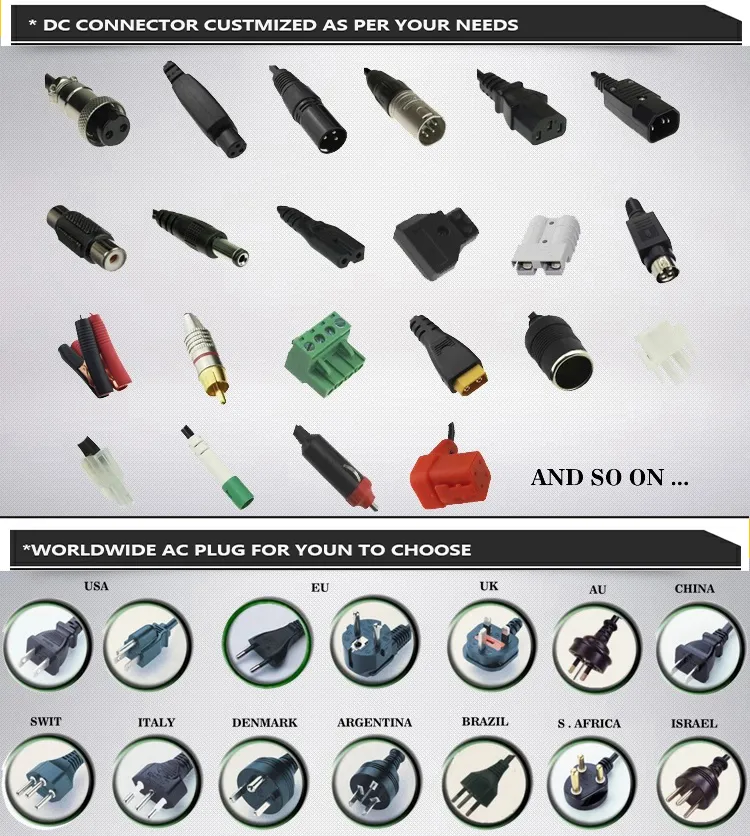

A: We offer various connectors including 3-pin Aviation plugs, XLR sockets, DC Jacks, Alligator Clips, SAE connectors, Anderson Plugs, and RCA.

Q6: What certifications does this charger have?

A: This product is globally certified with UL, cUL, CE, GS, TUV, PSE, SAA, KC, and is RoHS compliant.
